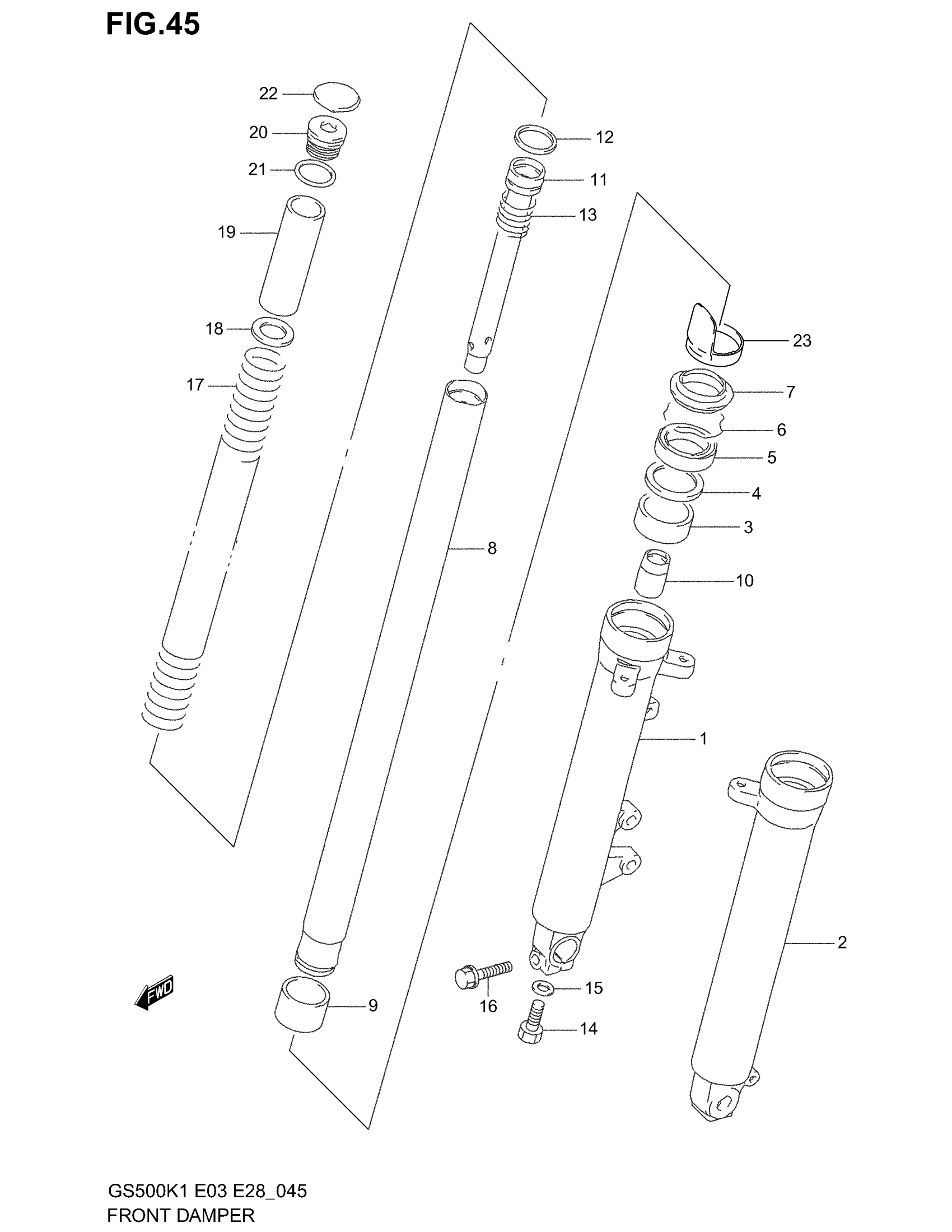

Suzuki GS500 (2002) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-01DA0

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 23

51104-01DA0

Unavailable

1

TUBE, OUTER RH

51130-01DA0

Unavailable

2

TUBE, OUTER LH (SILVER)

51140-01DA0

Unavailable

3

METAL, SLIDE

51167-01D00

$11.89

4

WASHER

51158-49500

$5.02

5

SEAL, OIL

51153-26F00

$28.53

6

RING, SNAP

51156-40301

$4.63

7

SEAL, DUST

51173-26F00

$29.07

8

TUBE, INNER

51110-01D00

Unavailable

9

PISTON

51121-01D00

$25.08

10

PIECE, OIL LOCK

51195-01D00

$23.08

11

CYLINDER

51146-01D00

Unavailable

12

RING, PISTON

51196-13A10

$9.50

13

SPRING, REBOUND

51177-01D00

$11.37

14

BOLT

51147-16510

$4.09

15

GASKET

51148-41310

$2.14

16

BOLT, RH

01550-08407

$2.63

17

SPRING, MAIN

51171-01D00

Unavailable

18

WASHER, SPRING

51172-01D00

Unavailable

19

SPACER

51176-01D00

Unavailable

20

BOLT, FORK

51351-01D30

Unavailable

21

O RING

51117-40300

$2.92

22

CAP, FORK BOLT

51189-30520

$14.00

23

PROTECTOR

51201-01DA0

$32.30
