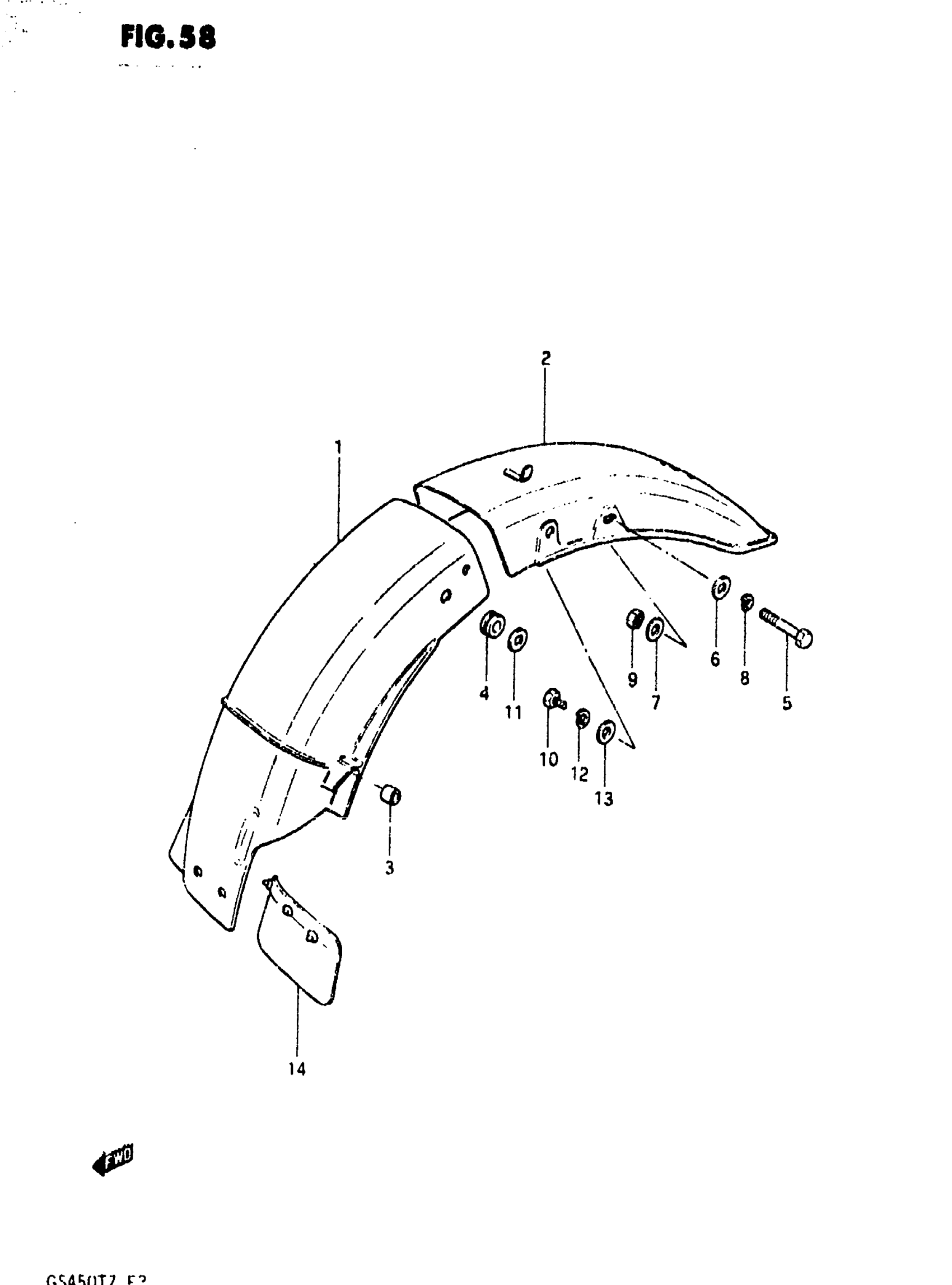

Suzuki GS450T (1982) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63112-44120.

63112-44X50

Unavailable

2

BODY, REAR FENDER REAR This part replaces 63110-44300.

63110-44301

Unavailable

3

CUSHION This part replaces 09329-05003.

09329-05009

$2.47

4

CUSHION This part replaces 09320-05006.

09320-06504

$4.61

5

BOLT (8X105) This part replaces 09104-08016.

09103-08097

$3.27

6

WASHER This part replaces 08322-11088.

08322-01087

$1.92

7

WASHER This part replaces 08322-11088.

08322-01087

$1.92

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

9

NUT This part replaces 08310-12088.

08310-00087

$1.91

10

BOLT This part replaces 01107-08128.

01500-08127

$2.74

11

WASHER This part replaces 09160-06007.

09160-06084

$1.82

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

13

WASHER This part replaces 08322-11088.

08322-01087

$1.92

14

MUD GUARD, REAR FENDER

63411-31900

Unavailable
