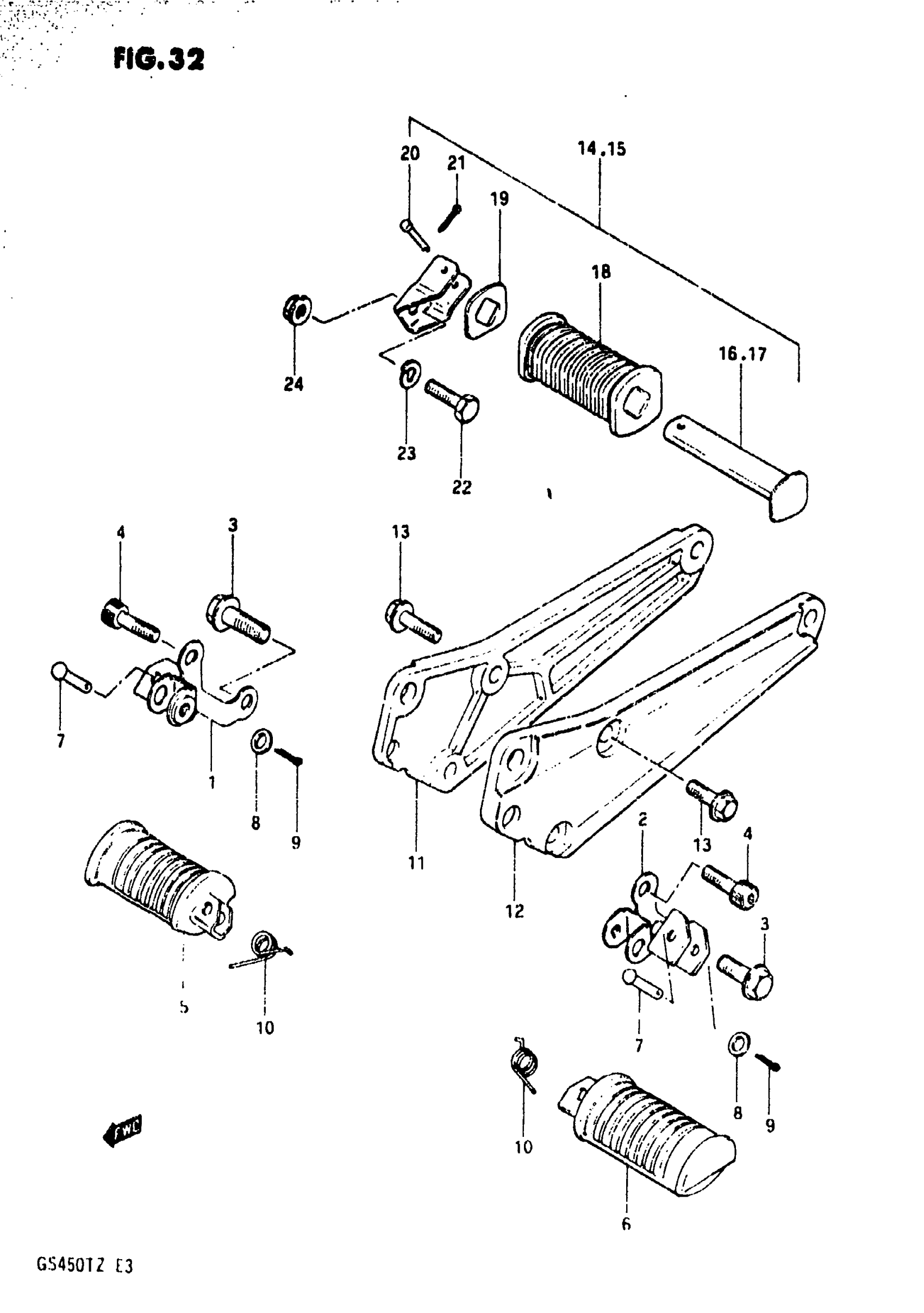

Suzuki GS450T (1982) FOOTREST (GS450TZ) Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-44310

Unavailable

2

BAR, FOOTREST LH

43520-44310

Unavailable

3

BOLT, RH This part replaces 01527-10308.

01550-10307

$3.58

4

BOLT, BRACKET This part replaces 09106-08017.

07130-08207

$4.70

5

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

$23.98

6

FOOTREST LH This part replaces 43560-49002.

43560-37310

$30.19

7

PIN

09200-08002

$1.97

8

WASHER This part replaces 08322-11088.

08322-01087

$1.86

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

10

SPRING

09448-14012

$2.80

11

BRACKET, MUFFLER RH

43811-44110

Unavailable

12

BRACKET, MUFFLER LH

43821-44110

Unavailable

13

BOLT, RH This part replaces 01527-10308.

01550-10307

$3.58

14

FOOTREST, PILLION RH

43600-34500

Unavailable

15

FOOTREST, PILLION LH | Includes Item(s) 16 - 21

43700-34500

Unavailable

16

BAR, RH

43610-49201

Unavailable

17

BAR, LH

43620-49201

Unavailable

18

RUBBER

43612-49201

Unavailable

19

WASHER This part replaces 43631-49201.

43631-45001

Unavailable

20

PIN

09200-06010

$1.87

21

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

22

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$4.03

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

24

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.38
