1982 Suzuki GS450T Footrest (Model X Diagram

← All diagrams

Find the part on the Footrest (Model X diagram for your 1982 Suzuki GS450T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

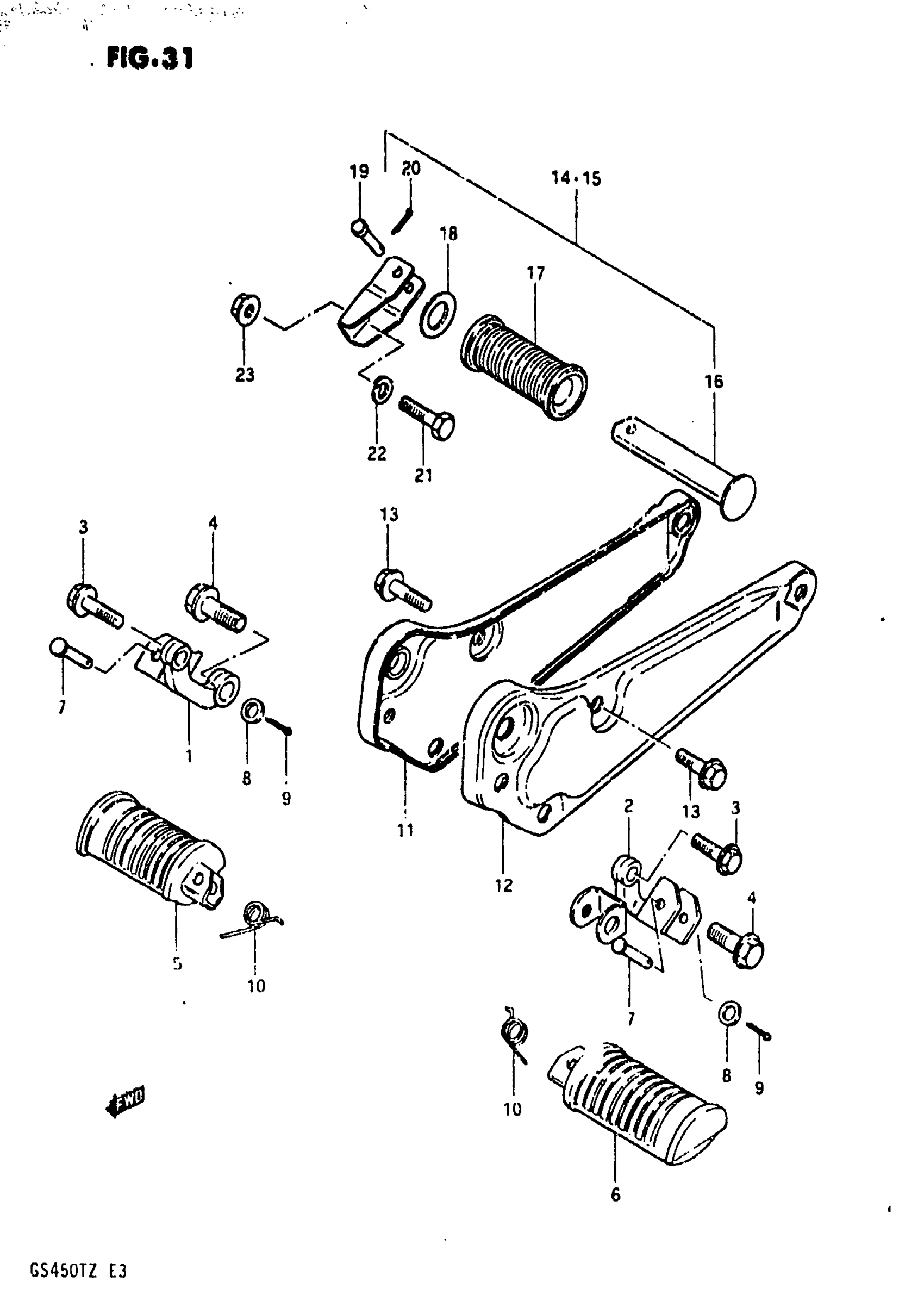

1982 Suzuki GS450T Footrest (Model X Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, FOOTREST RH | MODEL X

43510-44100

1
Out of stock

1

BAR, FOOTREST RH | GS450TXZ

43510-44300

1
Out of stock

2

BAR, FOOTREST LH | MODEL X

43520-44100

1
Out of stock

2

BAR, FOOTREST LH | GS450TXZ

43520-44300

1
Out of stock

3

BOLT, RH This part replaces 01527-10308.

01550-10307

2
Out of stock

4

BOLT This part replaces 01527-08307.

01550-08307

2
Out of stock

5

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

1
Out of stock

6

1

$32.87

In stock

7

PIN

09200-08002

2
Out of stock

8

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

10

SPRING

09448-14012

2
Out of stock

11

BRACKET, MUFFLER RH | TO 43810-44101 WITH 43600-44300 This part replaces 43810-44100.

43810-44102

1
Out of stock

11

BRACKET, MUFFLER RH This part replaces 43810-44101.

43810-44102

1
Out of stock

12

BRACKET, MUFFLER LH | TO 43820-44101 WITH 43700-44300 This part replaces 43820-44100.

43820-44102

1
Out of stock

12

BRACKET, MUFFLER LH This part replaces 43820-44101.

43820-44102

1
Out of stock

13

BOLT, PROP SHAFT REAR This part replaces 01527-10207.

01550-1020A

2
Out of stock

14

FOOTREST, PILLION RH This part replaces 43600-44100.

43600-44300

1
Out of stock

14

FOOTREST, PILLION RH | FOR 43810-44101

43600-44300

1
Out of stock

15

FOOTREST, PILLION LH This part replaces 43700-44100.

43700-44300

1
Out of stock

15

FOOTREST, PILLION LH | FOR 43820-44101; Includes Item(s) 16 - 20

43700-44300

1
Out of stock

16

BAR, PILLION FOOTREST

43610-44000

2
Out of stock

18

WASHER This part replaces 09160-19006.

09160-19024

2
Out of stock

19

PIN

09200-06010

2
Out of stock

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

21

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

2
Out of stock

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

23

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

2
Out of stock
