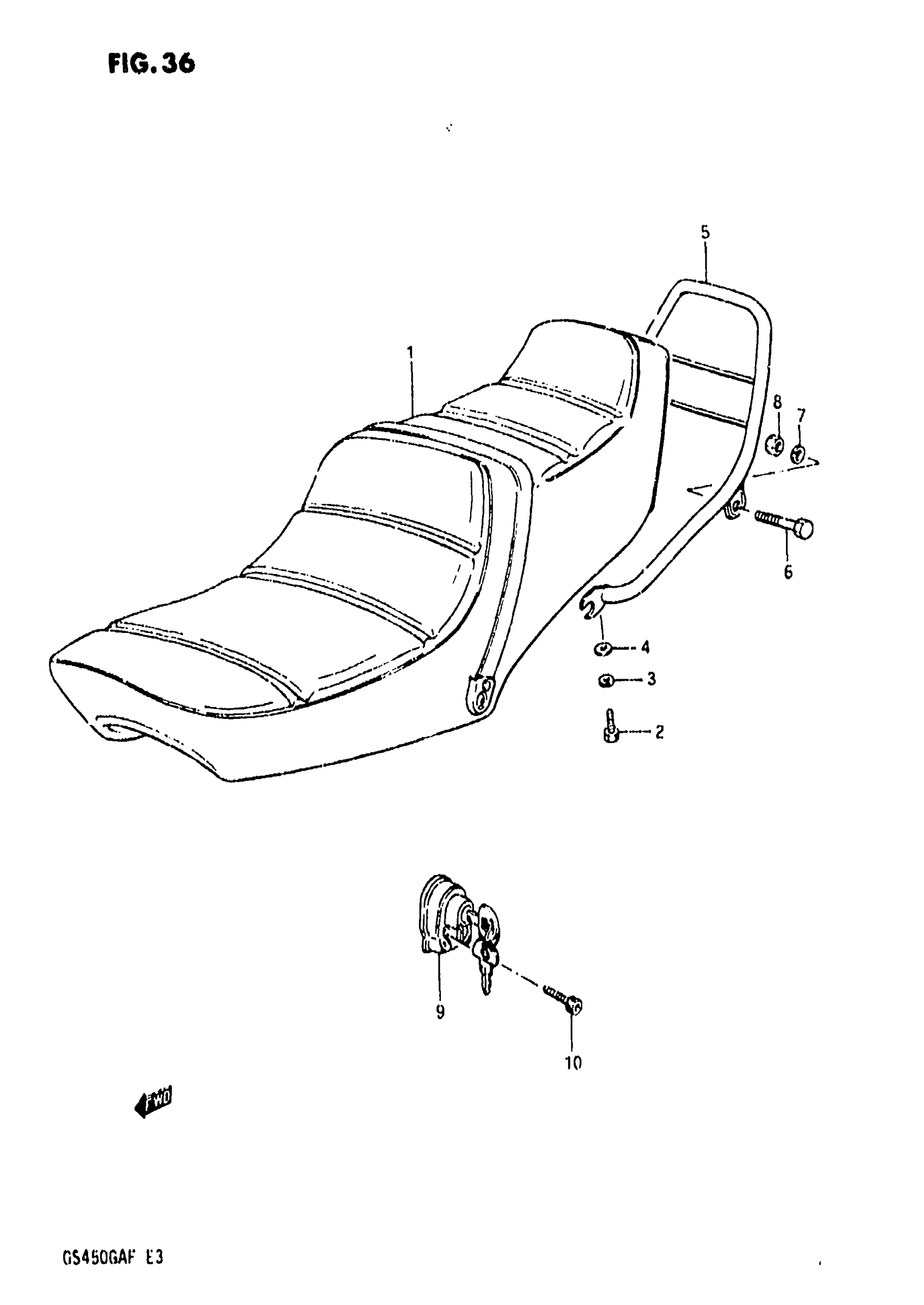

Suzuki GS450GA (1985) SEAT Diagram

#

Description

Price

1

SEAT ASSY (BLACK)

45100-44550-59N

Unavailable

2

BOLT This part replaces 09128-06006.

09128-06057

$1.64

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

4

WASHER This part replaces 08322-21068.

08322-01067

$1.86

5

HANDLE, PILLION RIDER

46210-44550

Unavailable

6

BOLT

01204-08657

Unavailable

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

8

NUT This part replaces 08310-12088.

08310-00087

$1.83

9

LOCK ASSY, HELMAT

95700-34210

Unavailable

10

BOLT This part replaces 09106-05008.

07130-0525B

$2.70
