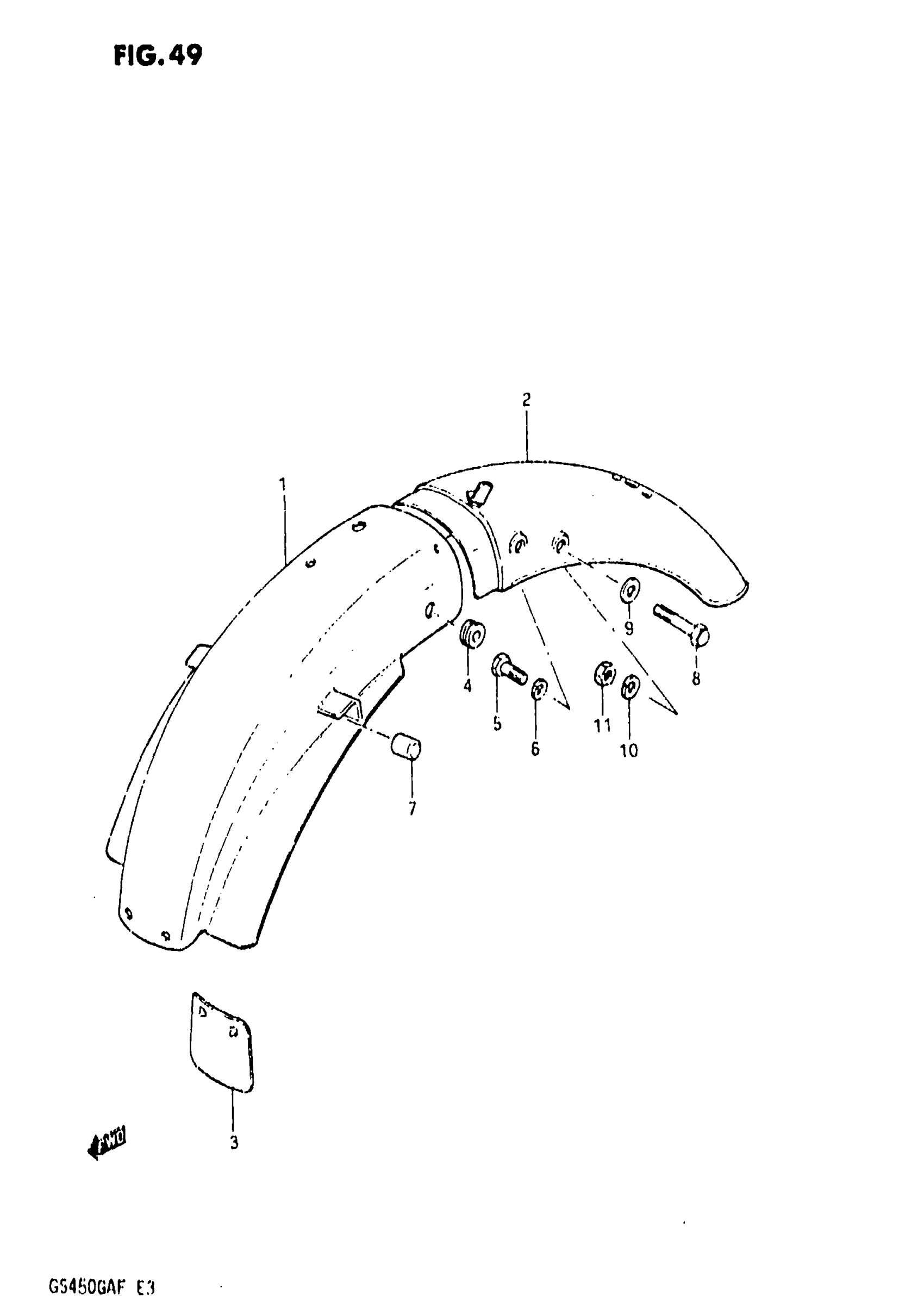

Suzuki GS450GA (1985) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-34213

Unavailable

2

FENDER, REAR

63110-34400

Unavailable

3

MUD GUARD, REAR FENDER

63411-31900

Unavailable

4

CUSHION This part replaces 09320-05006.

09320-06504

$4.61

5

BOLT This part replaces 01107-08126.

01500-0812A

$2.38

6

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.91

7

CUSHION This part replaces 09329-05003.

09329-05009

$2.47

8

BOLT

01204-08207

$2.50

9

WASHER This part replaces 08322-11088.

08322-01087

$1.92

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

11

NUT This part replaces 08310-12088.

08310-00087

$1.91
