1985 Suzuki GS450GA Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 1985 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

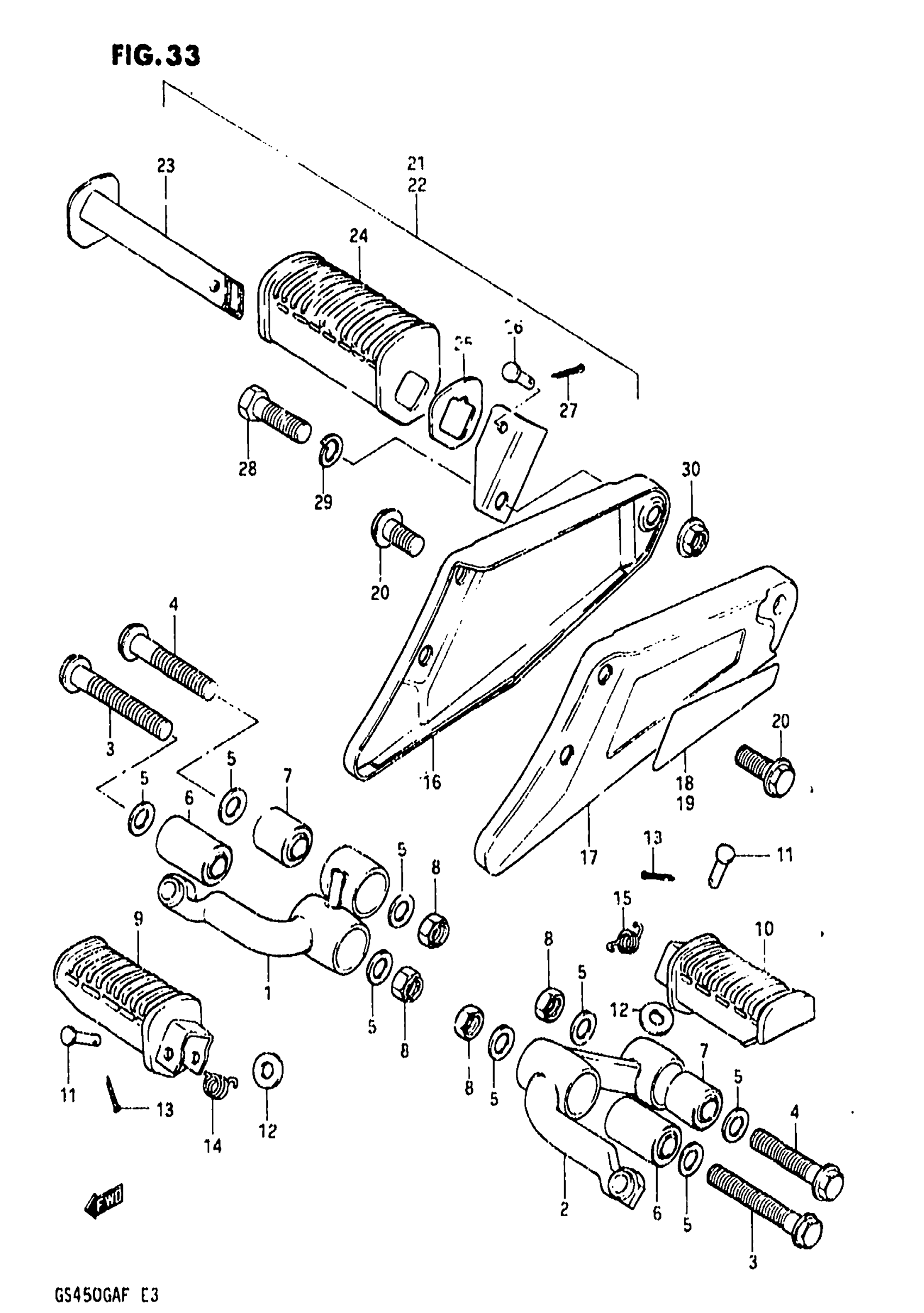

1985 Suzuki GS450GA Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, FOOTREST RH

43510-44500

1
Out of stock

2

BAR, FOOTREST LH

43520-44500

1
Out of stock

3

NO DESCRIPTION AVAILABLE This part replaces 01517-10755.

01550-10753

2
Out of stock

4

BOLT, LOWER

01517-10605

2
Out of stock

5

WASHER This part replaces 09160-10067.

09160-10005

8
Out of stock

6

BUSHING, FRONT

09319-10009

2
Out of stock

7

BUSHING, REAR

09319-10047

2
Out of stock

8

NUT This part replaces 09159-10036.

09159-10027

4
Out of stock

9

RUBBER FR FOOTR This part replaces 43550-34511.

43550-34501

1
Out of stock

10

RUBBER FR FOOTR This part replaces 43560-34511.

43560-34501

1
Out of stock

11

PIN This part replaces 09200-08034.

09200-08002

2
Out of stock

12

WASHER This part replaces 08322-11084.

08322-0108A

2
Out of stock

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

14

SPRING, RH

09448-19014

1
Out of stock

15

SPRING, LH

09448-19015

1
Out of stock

16

BRACKET, MUFFLER RH

43810-44500

1
Out of stock

17

BRACKET, MUFFLER LH

43820-44500

1
Out of stock

18

TAPE, RH

43831-44500

1
Out of stock

19

TAPE, LH

43841-44500

1
Out of stock

20

BOLT, PROP SHAFT REAR This part replaces 01517-10208.

01550-1020A

4
Out of stock

21

FOOTREST, PILLION RH

43600-49502

1
Out of stock

22

FOOTREST, PILLION LH | Includes Item(s) 23 - 27

43700-49502

1
Out of stock

23

BAR, PILLION FOOTREST, RH

43620-49401

1
Out of stock

24

RUBBER, PILLION FOOTREST This part replaces 43612-49401.

43612-49402

2
Out of stock

25

WASHER

43631-49401

2
Out of stock

26

PIN

09200-06010

2
Out of stock

27

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

28

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

2
Out of stock

29

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

30

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

2
Out of stock
