1985 Suzuki GS450GA Filter-Oil Pump Diagram

← All diagrams

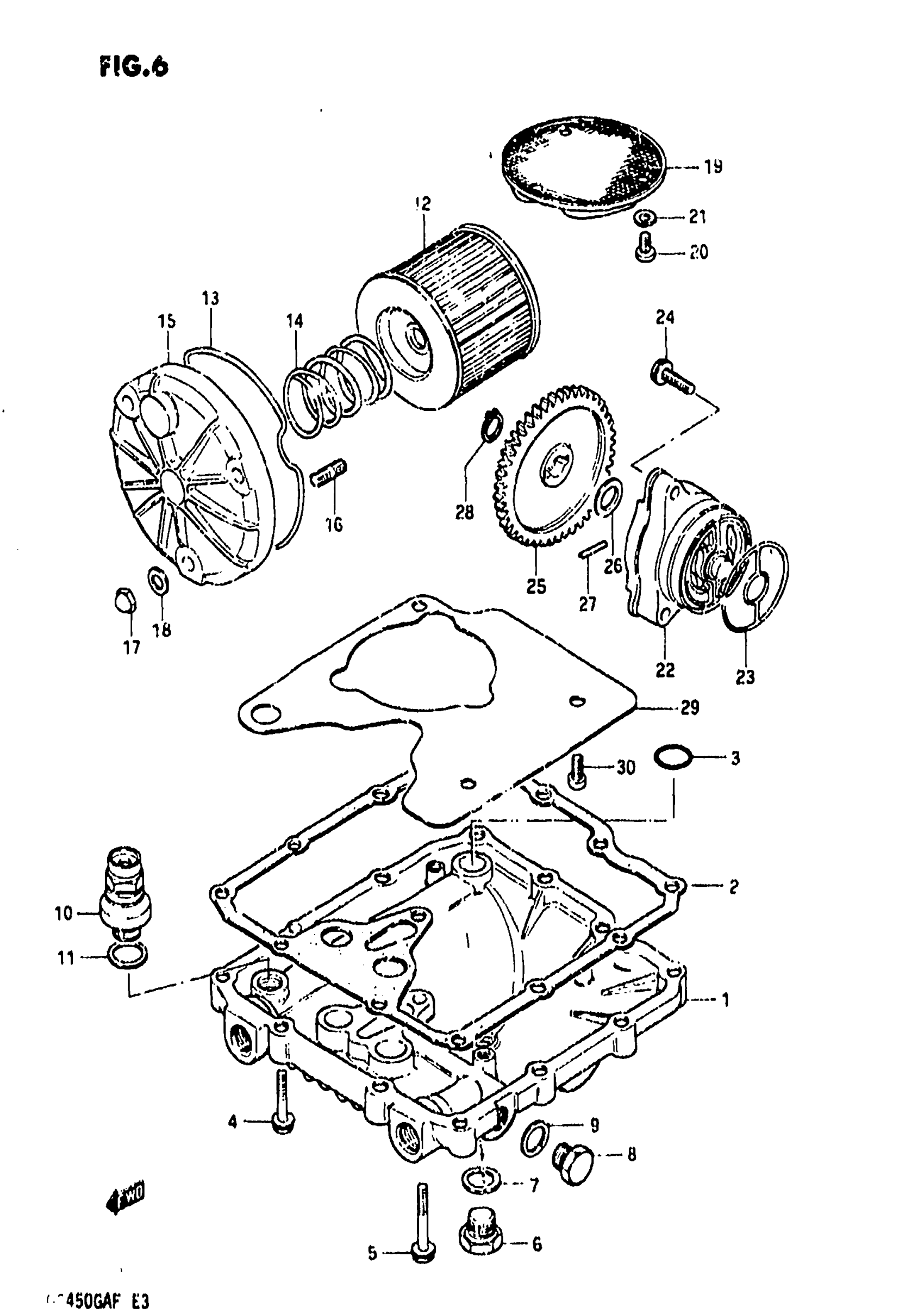

Find the part on the Filter-Oil Pump diagram for your 1985 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GS450GA Filter-Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PAN, OIL

11511-44510

1
Out of stock

2

GASKET

11489-44500

1
Out of stock

3

O RING

09280-13001

1

$2.92

In stock

4

BOLT This part replaces 01517-06305.

01550-0630A

12
Out of stock

5

BOLT This part replaces 01517-06354.

01550-0635A

1
Out of stock

6

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

7

GASKET

09168-14004

1

$1.96

In stock

8

PLUG, OIL GALLERY

09247-12103

1

$2.92

In stock

9

GASKET

09168-12002

1
Out of stock

10

REGULATOR, OIL

16440-44500

1
Out of stock

11

WASHER

08212-14181

1
Out of stock

12

FILTER, ENGINE OIL

16510-45040

1

$5.69

In stock

13

O RING

16518-45000

1

$5.69

In stock

14

SPRING

09440-32004

1

$3.22

In stock

16

STUD BOLT This part replaces 01421-06208.

01421-0620A

3
Out of stock

17

3

$1.97

In stock

18

.WASHER This part replaces 08322-21064.

08322-0106B

3
Out of stock

19

1

$17.40

In stock

20

SCREW This part replaces 02112-06128.

02112-06127

3
Out of stock

21

3

$2.28

In stock

22

PUMP, ENGINE OIL

16400-44500

1
Out of stock

23

O RING

16491-31300

1
Out of stock

24

SCREW

09103-06045

3
Out of stock

25

GEAR, DRIVEN (NT:29)

16331-44500

1
Out of stock

26

WASHER

08221-10185

1
Out of stock

27

PIN

09261-04009

1
Out of stock

28

CIRCLIP

08331-31109

1
Out of stock

29

PLATE, OIL PAN

11523-44500

1
Out of stock

30

SCREW This part replaces 02112-06128.

02112-06127

3
Out of stock
