1985 Suzuki GS450GA CAM Chain Diagram

← All diagrams

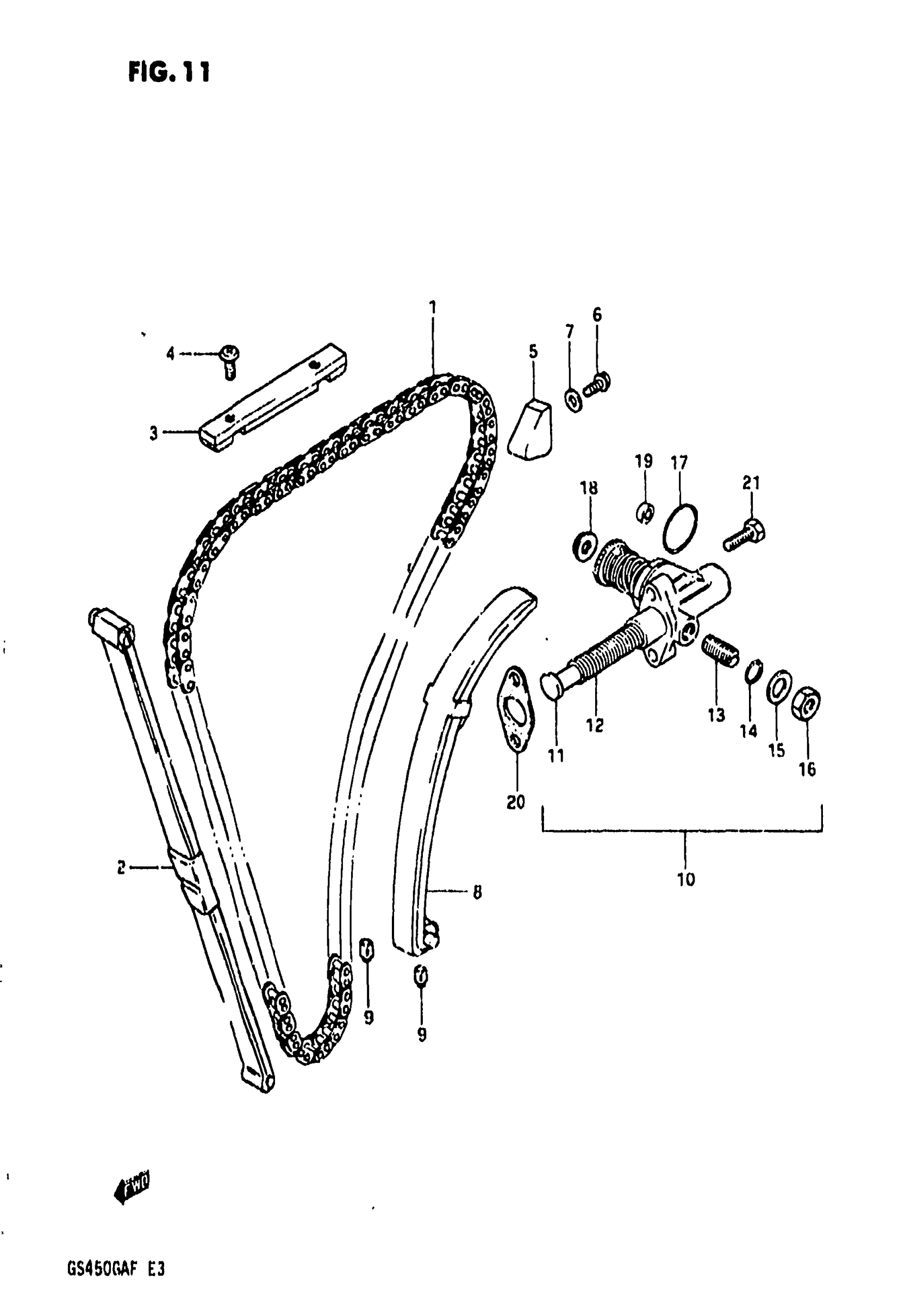

Find the part on the CAM Chain diagram for your 1985 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GS450GA CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$166.47

In stock

2

1

$45.15

In stock

3

GUIDE, CAM CHAIN NO.2

12782-47040

1
Out of stock

4

SCREW This part replaces 02112-05128.

02112-05127

2
Out of stock

5

GUIDE, CAM CHAIN NO.2

12791-45040

1

$16.03

In stock

6

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

2
Out of stock

7

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

2
Out of stock

8

TENSIONER, CAM CHAIN

12810-44150

1
Out of stock

9

CUSHION

12814-44101

2
Out of stock

10

ADJUSTER ASSY,T | Includes Item(s) 11 - 19 This part replaces 12830-47011.

12830-0930V

1
Out of stock

11

PUSH ROD

12833-47001

1
Out of stock

12

SPRING

09440-12017

1
Out of stock

13

ADJUSTER,TENSIO This part replaces 12830-45010.

12830-45003

1
Out of stock

14

1

$1.55

In stock

15

1

$2.27

In stock

16

NUT This part replaces 08310-12085.

08310-0008A

1
Out of stock

17

O RING

09280-21013

1
Out of stock

18

NUT This part replaces 08316-16064.

08316-1006B

1
Out of stock

19

OIL SEAL

09284-10006

1
Out of stock

20

GKT,TENSIONER A This part replaces 12837-31310.

12837-47010

1
Out of stock
