1985 Suzuki GS450GA Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1985 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

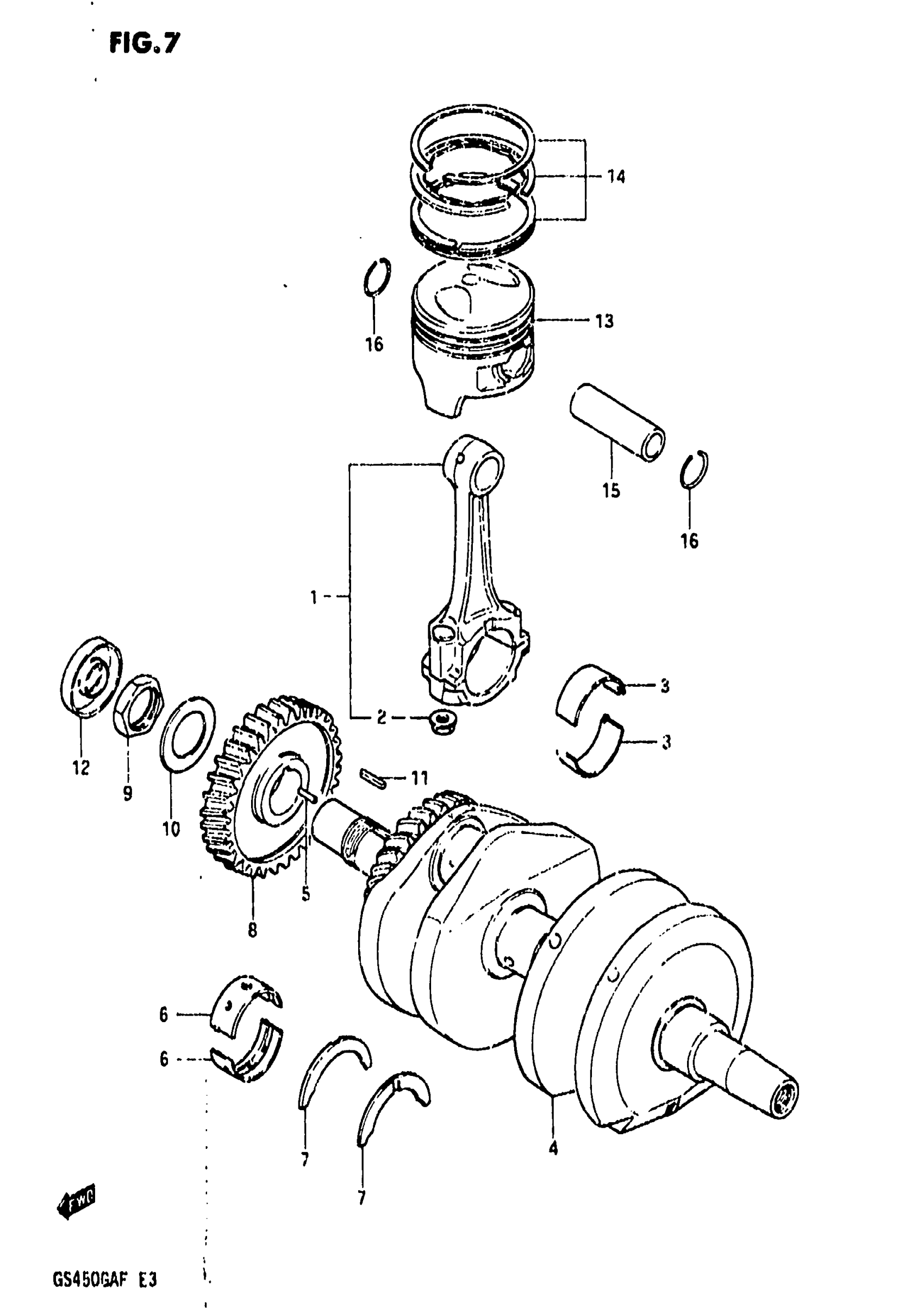

1985 Suzuki GS450GA Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD ASSY, CONNECTING | Includes Item(s) 2 This part replaces 12160-44100.

12160-44101

2
Out of stock

2

NUT

09159-08033

4
Out of stock

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-44501-010.

12164-01D01-0A0

4
Out of stock

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-44501-020.

12164-01D01-0B0

4
Out of stock

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-44501-030.

12164-01D01-0C0

4
Out of stock

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-44501-040.

12164-01D01-0D0

4
Out of stock

3

BEARING, CRANK PIN (US:0.25) | OPT

12164-44100-025

4
Out of stock

3

BEARING, CRANK PIN (US:0.50) | OPT

12164-44100-050

4
Out of stock

4

NO DESCRIPTION AVAILABLE | Includes Item(s) 5 This part replaces 12220-44501.

12220-44502

1
Out of stock

5

PIN This part replaces 06211-03052.

04221-03059

1
Out of stock

6

BEARING, CRANKSHAFT (GREEN)

12229-44500-010

8
Out of stock

6

BEARING, CRANKSHAFT (BLACK)

12229-44500-020

8
Out of stock

6

BEARING, CRANKSHAFT (BROWN)

12229-44500-030

8
Out of stock

6

BEARING, CRANKSHAFT (YELLOW)

12229-44500-040

8
Out of stock

6

BEARING, CRANKSHAFT (US:0.25) | OPT

12229-44100-025

8
Out of stock

6

BEARING, CRANKSHAFT (US:0.50) | OPT

12229-44100-050

8
Out of stock

7

BEARING, THRUST (GREEN)

12228-44104

1
Out of stock

7

BEARING, THRUST (BLACK)

12228-44105

1
Out of stock

7

BEARING, THRUST (NOT IMARKER)

12228-44106

1
Out of stock

7

BEARING, THRUST (BROWN)

12228-44107

1
Out of stock

7

BEARING, THRUST (YELLOW)

12228-44108

1
Out of stock

7

BEARING, THRUST (WHITE)

12228-44109

1
Out of stock

7

BEARING, THRUST (RED)

12228-44110

1
Out of stock

8

GEAR, PRIMARY DRIVE (NT:28)

21111-44500

1
Out of stock

9

NUT

09140-24007

1
Out of stock

10

WASHER

09164-25001

1
Out of stock

11

KEY

08341-31059

1
Out of stock

12

OIL SEAL, RH

09283-22015

1
Out of stock

13

PISTON (STD) This part replaces 12111-44110.

12111-44100

2
Out of stock

13

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-44110-050.

12103-44810-050

2
Out of stock

13

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-44110-100.

12103-44810-100

2
Out of stock

14

PISTON RING SET (STD) This part replaces 12140-44140.

12140-44110

2
Out of stock

14

PISTON RING SET (OS:0.5) | OPT

12140-44140-050

2
Out of stock

14

PISTON RING SET (OS:1.0) | OPT This part replaces 12140-44140-100.

12140-44111-100

2
Out of stock

15

PIN, PISTON

12151-45501

2
Out of stock

16

CIRCLIP

09381-18002

4
Out of stock
