1982 Suzuki GS450ET Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1982 Suzuki GS450ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

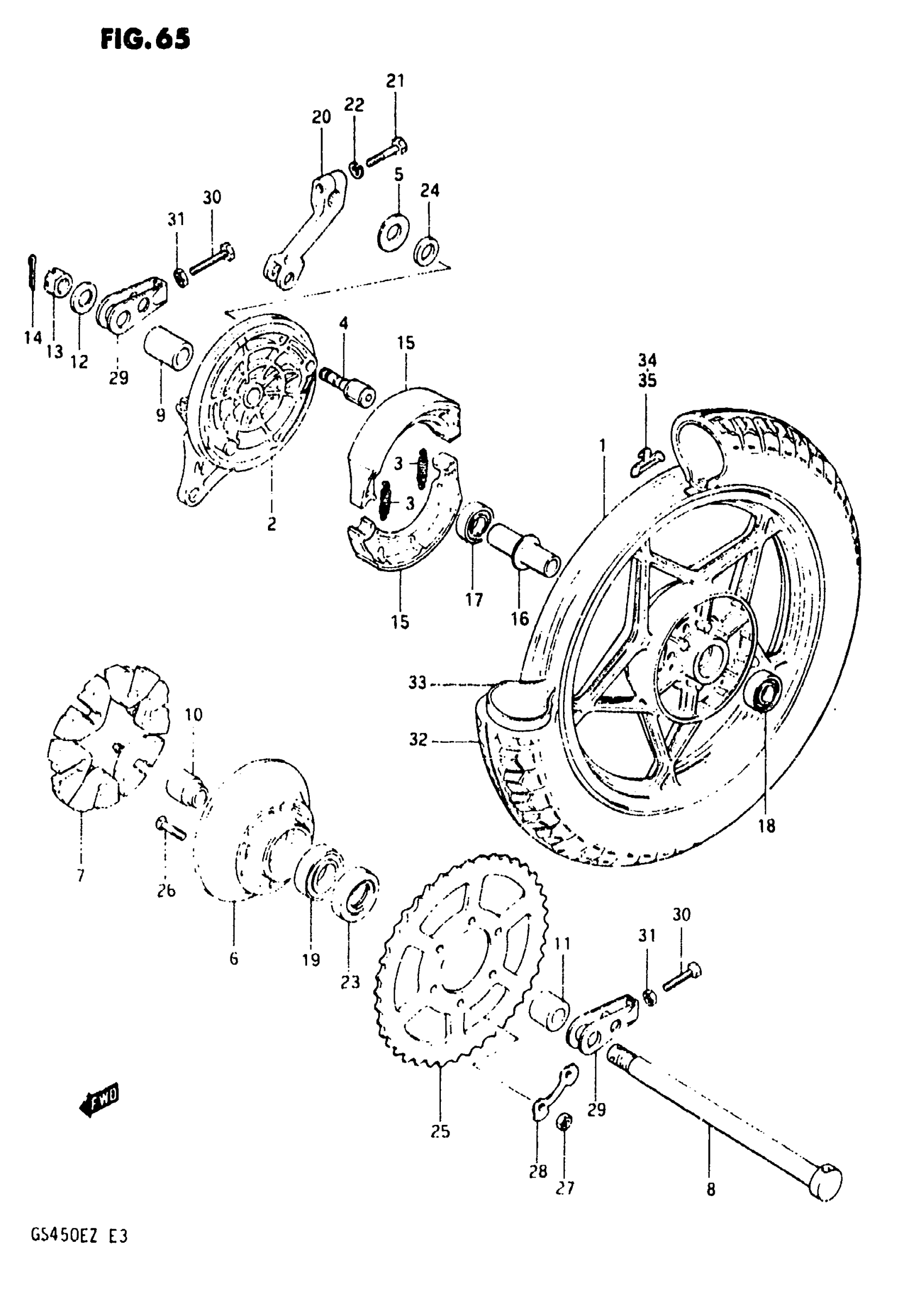

1982 Suzuki GS450ET Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (18x1.85) | MODEL T,X This part replaces 64150-44000.

64150-44000-12U

1
Out of stock

1

WHEEL, REAR (18x1.85) | MODEL Z

64150-44000-12U

1
Out of stock

1

NO DESCRIPTION AVAILABLE | GS450ST, GS450SX This part replaces 64150-44020.

64150-44000-12V

1
Out of stock

2

PANEL

64210-44060

1
Out of stock

3

SPRING

55420-30000

2
Out of stock

4

1

$31.18

In stock

5

1

$2.78

In stock

6

DRUM, SPROCKET | MODEL T This part replaces 64611-44000.

64611-44001

1
Out of stock

6

DRUM, SPROCKET | MODEL X, Z

64611-44001

1
Out of stock

7

6

$15.37

In stock

8

AXLE,REAR This part replaces 64711-33000.

64711-3300V

1
Out of stock

9

SPACER, RH

09180-17043

1
Out of stock

10

SPACER,RR HUB B This part replaces 64733-33000.

64733-3300V

1
Out of stock

11

SPACER, LH

09180-17042

1
Out of stock

12

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

1
Out of stock

13

NUT

09141-16001

1
Out of stock

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

15

SHOE SET, BRAKE | MODEL T This part replaces 64410-11300.

64400-11860

2
Out of stock

15

SHOE SET, BRAKE | MODEL X, Z This part replaces 64410-11301.

64400-11860

2
Out of stock

16

SPACER,17.6X24X This part replaces 09180-17056.

09180-17056-XC0

1
Out of stock

17

BEARING, RH

08143-63037

1

$21.98

In stock

18

BEARING, LH

08143-62037

1

$17.89

In stock

19

BEARING

08113-62057

1

$27.83

In stock

20

LEVER, BRAKE CAM

64451-44001

1
Out of stock

21

1

$2.10

In stock

23

1

$26.05

In stock

25

SPROCKET, REAR (NT:45)

64511-44000

1
Out of stock

26

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

27

NUT This part replaces 09140-10026.

09140-10026-XC0

6
Out of stock

28

LOCK WASHER

09169-10006

3
Out of stock

29

ADJUSTER, CHAIN

61410-44200

2
Out of stock

30

BOLT (8X50) | MODEL T, X This part replaces 09104-08006.

09104-08034

2
Out of stock

30

BOLT (8X50) | MODEL Z This part replaces 09104-08018.

09104-08034

2
Out of stock

31

2

$1.93

In stock

32

TIRE, REAR (3.50S-18) | IRC

65100-44111

1
Out of stock

32

TIRE, REAR (3.50S-18) | BS This part replaces 65100-44130.

65100-44111

1
Out of stock

34

BALANCER (20G)

55411-47001

1
Out of stock

35

BALANCER (30G)

55412-47001

1
Out of stock
