1982 Suzuki GS450ET Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1982 Suzuki GS450ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

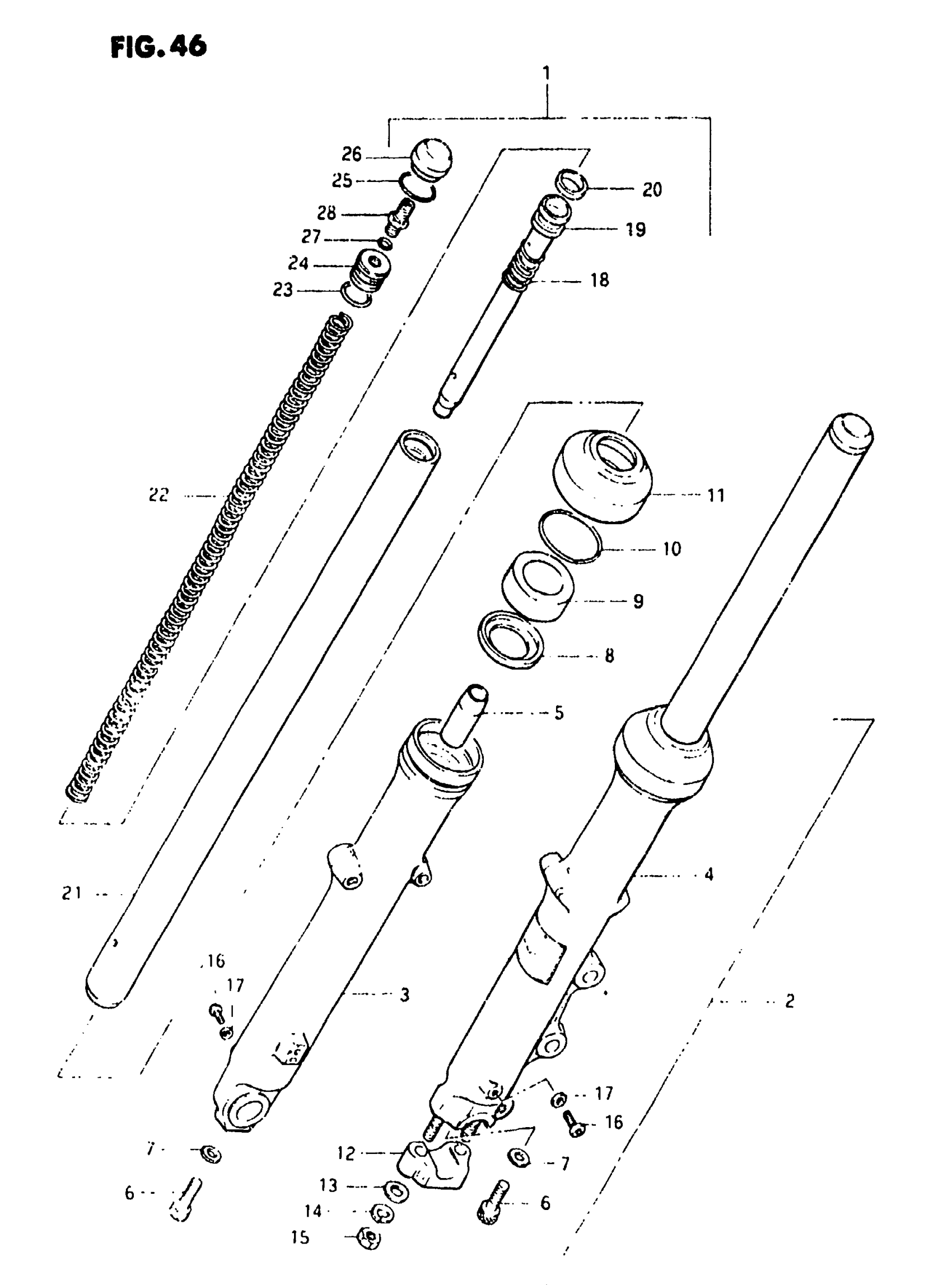

1982 Suzuki GS450ET Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DUMPER ASSY, RH

51103-44170

1
Out of stock

2

DUMPER ASSY, LH | Includes Item(s) 3 - 28

51104-44170

1
Out of stock

3

OUTER TUBE RH

51130-44170-291

1
Out of stock

4

OUTER TUBE LH

51140-44170-291

1
Out of stock

5

.PIECE, OIL LOCK

51195-48000

2
Out of stock

6

BOLT

51147-48130

2
Out of stock

7

O RING This part replaces 51148-31030.

51148-36011

2
Out of stock

8

SPACER

51168-44030

2
Out of stock

9

OIL SEAL This part replaces 51153-37310.

51153-02B00

2
Out of stock

10

RING, OIL SEAL STOPPER This part replaces 51156-11420.

51156-02B00

2
Out of stock

11

DUST SEAL

51571-37310

2
Out of stock

12

HOLDER, AXLE This part replaces 51132-44040-291.

51132-44040-15T

1
Out of stock

13

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

14

2

$2.28

In stock

15

2

$1.93

In stock

16

2

$1.67

In stock

17

GASKET

51183-33030

2
Out of stock

18

SPRING

51177-36030

2
Out of stock

19

CYLINDER This part replaces 51146-44031.

51146-38300

2
Out of stock

20

RING PISTON

51196-33130

2
Out of stock

21

INNER TUBE

51110-44170

2
Out of stock

22

SPRING

51171-44170

2
Out of stock

23

O RING

51181-33131

2
Out of stock

24

SEAT SPRING

51172-44170

2
Out of stock

25

RING STOPPER

51169-48500

2
Out of stock

26

CAP

51189-44170

2
Out of stock

27

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

2
Out of stock

28

VALVE, AIR

51293-45440

2
Out of stock
