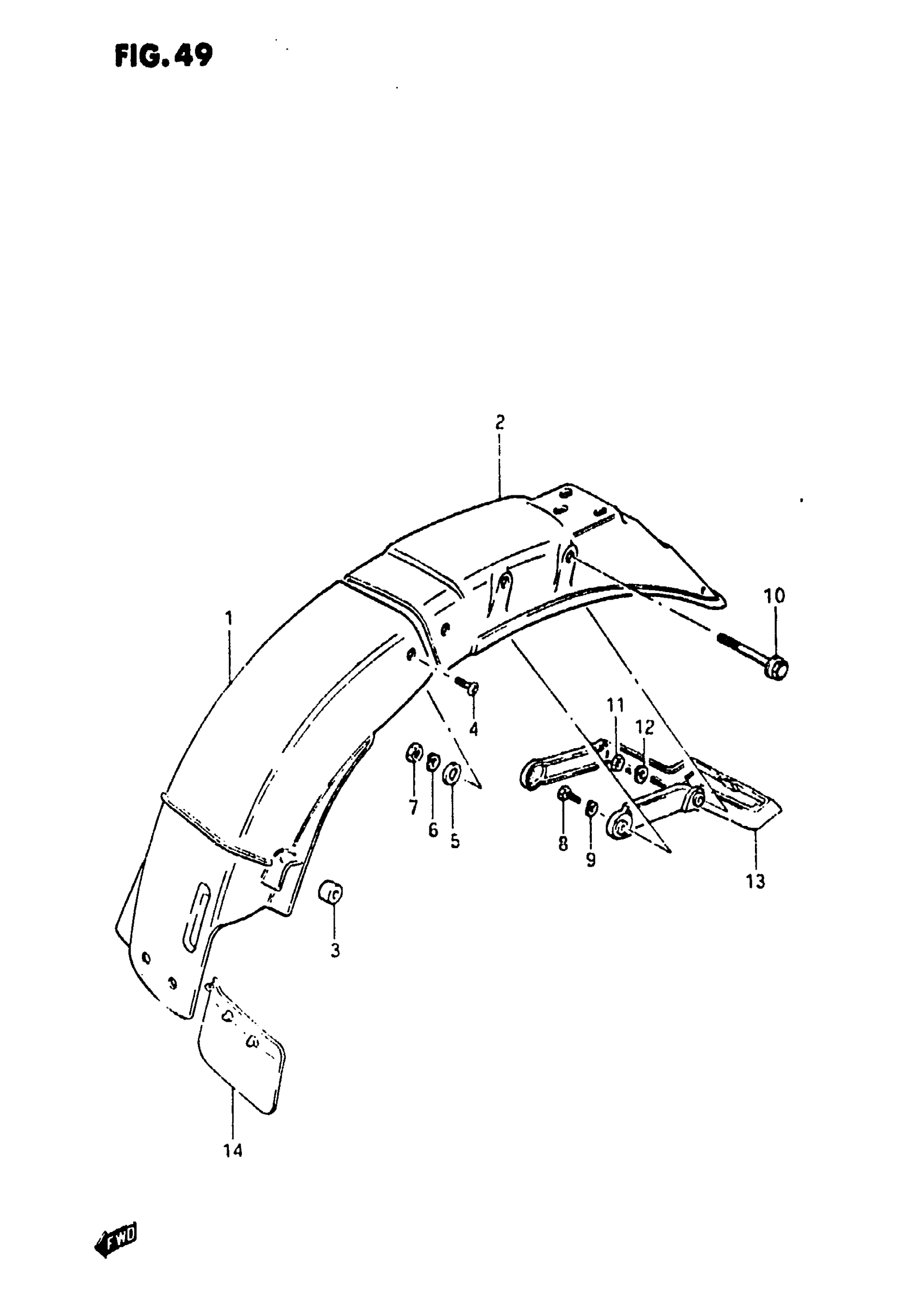

Suzuki GS450E (1983) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63112-44100.

63112-44X50

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63113-44400.

63113-44420

Unavailable

3

CUSHION This part replaces 09329-05003.

09329-05009

$2.47

4

SCREW This part replaces 02142-05128.

02142-05127

$1.97

5

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.33

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

7

NUT This part replaces 08310-11058.

08310-00057

$1.83

8

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

10

BOLT This part replaces 01517-08258.

01550-08257

$2.80

11

NUT This part replaces 08310-12088.

08310-00087

$1.83

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

13

REINFORCEMENT, REAR FENDER

63120-44400

Unavailable

14

MUD GUARD, REAR FENDER

63411-31900

Unavailable
