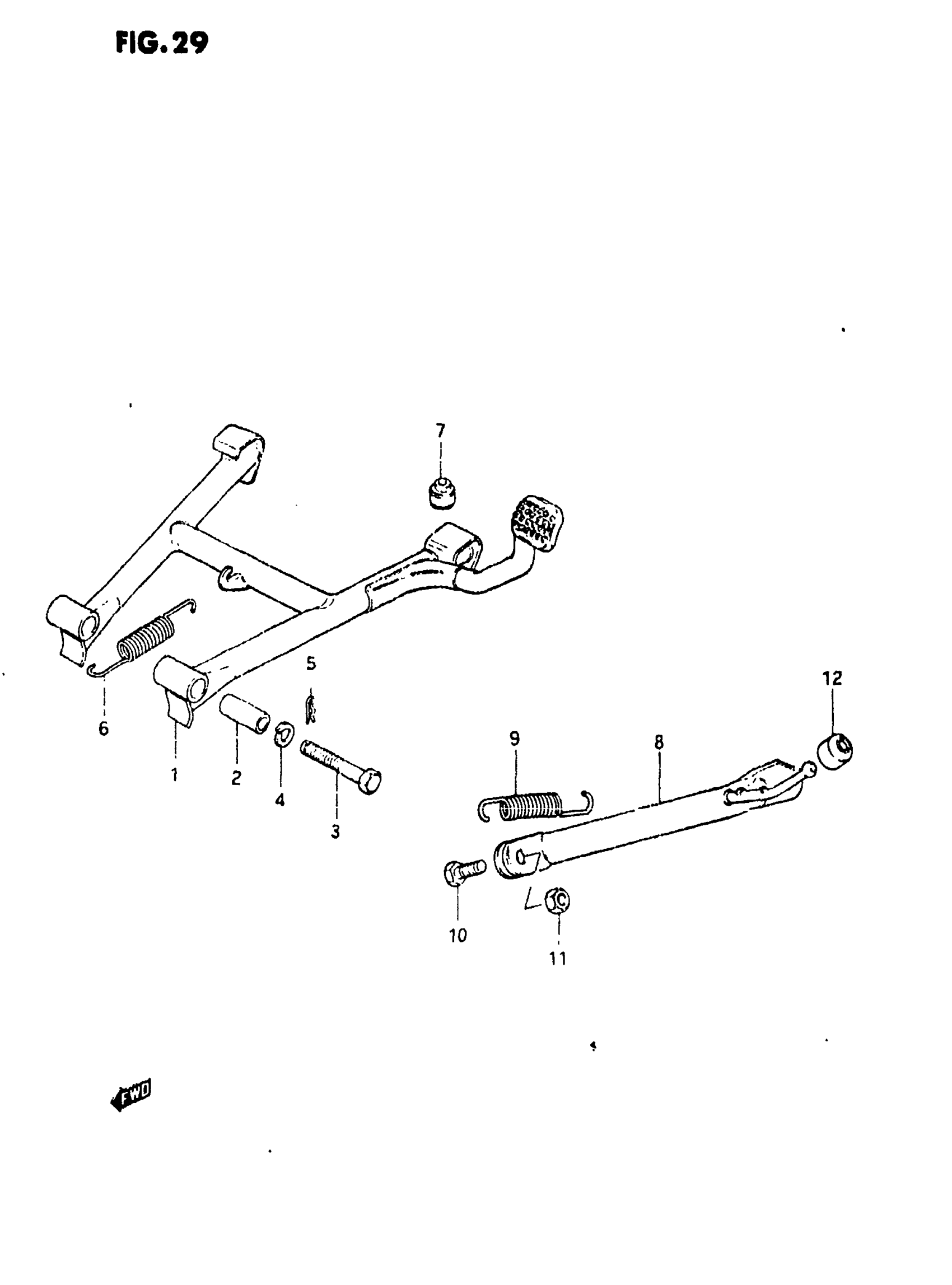

Suzuki GS450E (1983) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-44400

Unavailable

2

SPACER

09180-10040

$3.12

3

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

5

CLIP This part replaces 09385-10001.

09385-10005

$1.50

6

SPRING, CENTER This part replaces 09443-18003.

09443-18006-XC0

$8.50

7

CUSHION

09321-10001

$2.69

8

STAND, PROP This part replaces 42310-44100.

42310-44300

Unavailable

9

SPRING This part replaces 09443-17005.

09443-17008-XC0

$6.39

10

BOLT

09100-10067

$2.71

11

NUT This part replaces 08310-22108.

08310-00107

$2.19

12

CUSHION

09320-07001

$2.79
