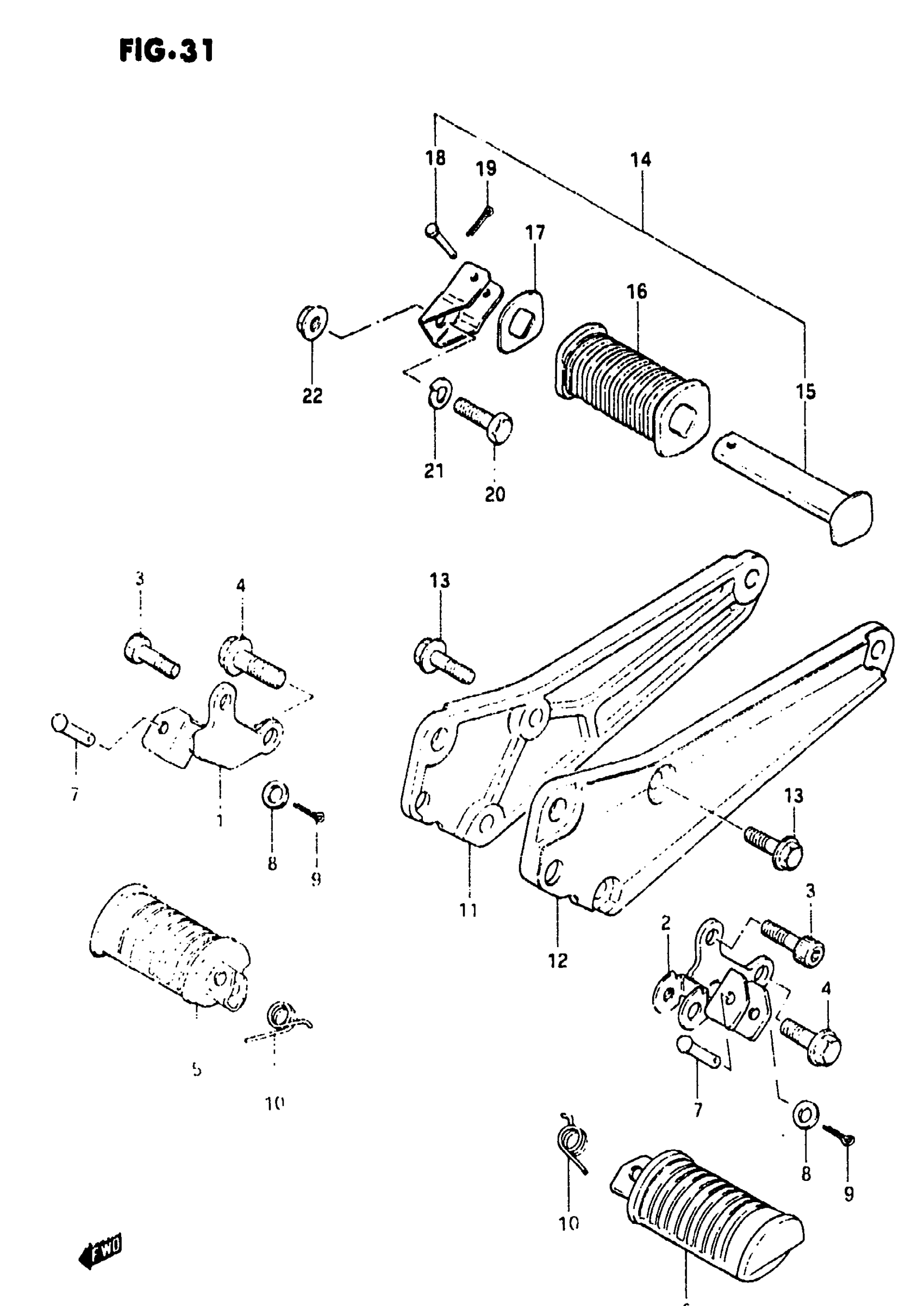

Suzuki GS450E (1983) FOOTREST Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 43510-44401.

43510-44402

Unavailable

2

BAR, FR FOOTRES This part replaces 43520-44401.

43520-11502

Unavailable

3

BOLT, BRACKET This part replaces 09106-08017.

07130-08207

$4.70

4

BOLT, RH This part replaces 01527-10308.

01550-10307

$3.71

5

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

$25.06

6

FOOTREST LH This part replaces 43560-37301.

43560-37310

$31.54

7

PIN

09200-08002

$2.02

8

WASHER This part replaces 08322-11088.

08322-01087

$1.92

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

10

SPRING

09448-14012

$2.82

11

BRACKET, MUFFLER RH

43811-44110

Unavailable

12

BRACKET, MUFFLER LH

43821-44110

Unavailable

13

BOLT, RH This part replaces 01517-10308.

01550-10307

$3.71

14

FOOTREST, PILLION RH

43600-34500

Unavailable

14

FOOTREST, PILLION LH | Includes Item(s) 15 - 19

43700-34500

Unavailable

15

BAR, PILLION RH

43610-49201

Unavailable

15

BAR, PILLION LH

43620-49201

Unavailable

16

RUBBER

43612-49201

Unavailable

17

WASHER This part replaces 43631-49201.

43631-45001

Unavailable

18

PIN

09200-06010

$1.87

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

20

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$4.03

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

22

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.46
