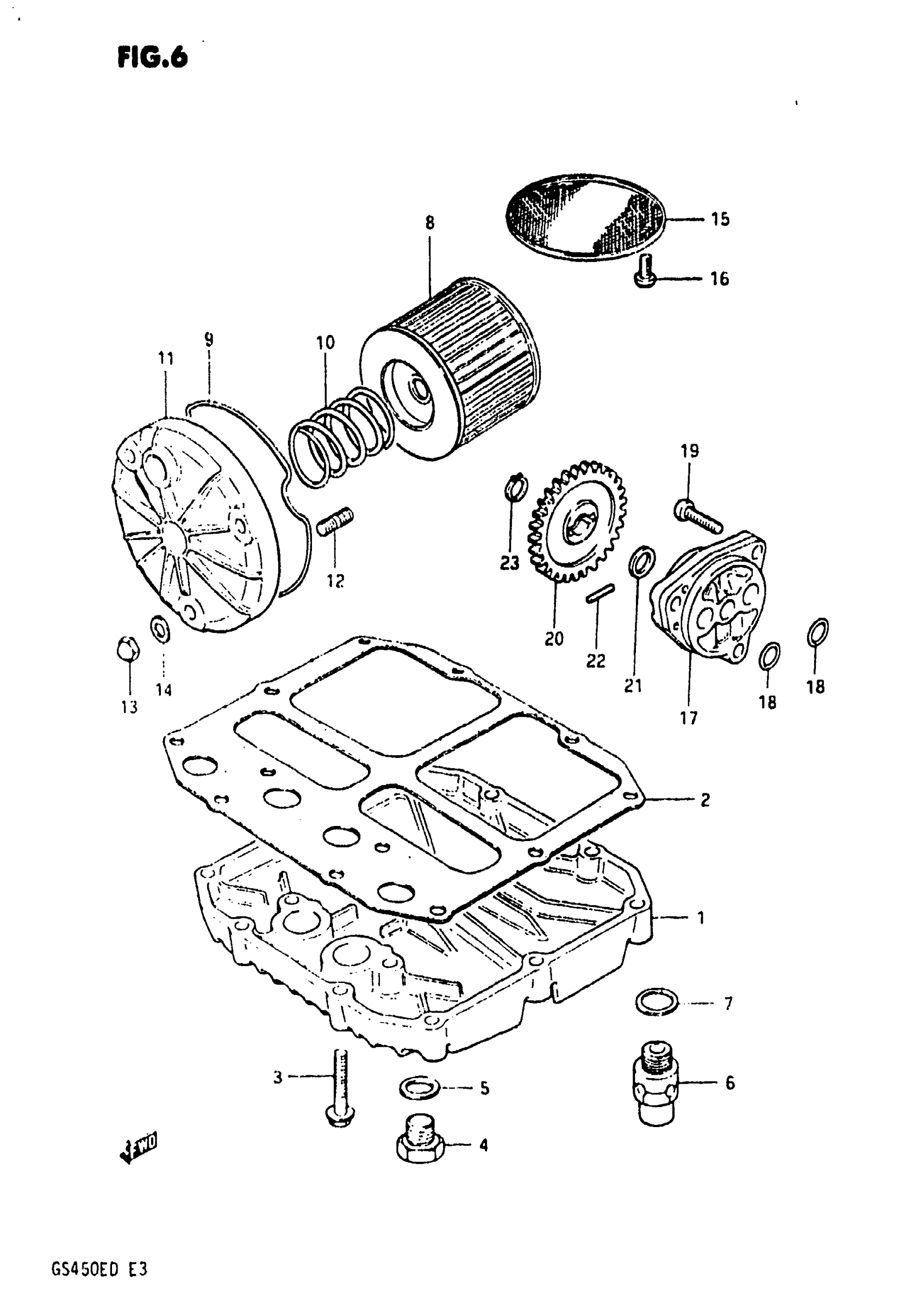

Suzuki GS450E (1983) OIL FILTER - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-44100

$114.75

2

GASKET, OIL PAN This part replaces 11489-44100.

11489-44110

$9.67

3

BOLT This part replaces 01517-06308.

01550-06307

$2.73

4

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.73

5

GASKET

09168-14004

$1.69

6

VALVE ASSY, OIL RELIEF This part replaces 16440-34301.

16440-11D00

$66.67

7

WASHER

08212-14181

Unavailable

8

FILTER, ENGINE OIL

16510-45040

$5.30

9

O RING

16518-45000

$5.23

10

SPRING

09440-32004

$3.22

11

CAP, ENGINE OIL FILTER This part replaces 16512-44400.

16512-45D00

$64.25

12

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.89

13

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.83

14

WASHER This part replaces 08322-21068.

08322-01067

$1.86

15

STRAINER, ENGINE OIL

16520-45010

Unavailable

16

SCREW This part replaces 02112-06128.

02112-06127

$1.83

17

PUMP, ENGINE OIL

16400-44100

$220.83

18

O RING

09280-13004

$2.19

19

SCREW This part replaces 02112-06258.

02112-06257

$1.68

20

GEAR, DRIVEN (NT:29)

16331-44000

Unavailable

21

WASHER

08221-10185

$2.35

22

PIN

09261-04009

$1.50

23

CIRCLIP

08331-31109

$1.77
