1983 Suzuki GS450E Cylinder Head Diagram

← All diagrams

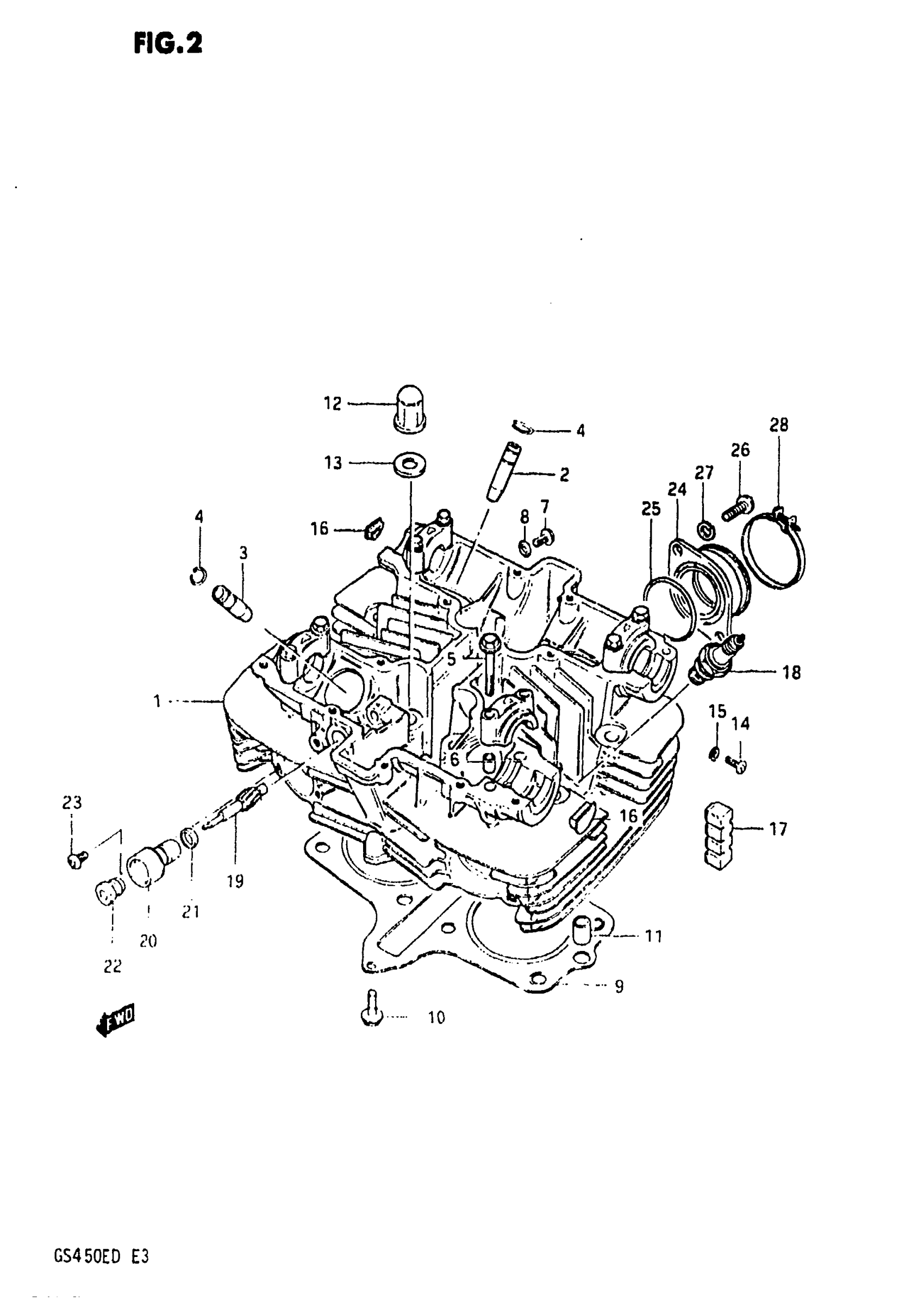

Find the part on the Cylinder Head diagram for your 1983 Suzuki GS450E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS450E Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | Includes Item(s) 2 - 8

11100-44110

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-45740

2
Out of stock

3

GUIDE, EXHAUST VALVE

11116-45740

2
Out of stock

4

RING, VALVE GUIDE

09381-10003

4
Out of stock

5

BOLT (6X39)

09103-06026

8
Out of stock

6

PIN

09206-08001

8
Out of stock

7

BOLT This part replaces 01517-06128.

01550-06127

2
Out of stock

8

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

2
Out of stock

9

GASKET,CYL HEAD This part replaces 11141-44100.

11141-44110-H17

1
Out of stock

10

BOLT This part replaces 01517-06308.

01550-06307

1
Out of stock

11

PIN

04211-11189

2
Out of stock

12

NUT

09159-10026

8
Out of stock

13

GASKET

09168-10017

8
Out of stock

14

2

$1.55

In stock

15

GASKET

09168-05010

2
Out of stock

16

PLUG, SIDE

09241-23002

4
Out of stock

17

RUBBER PAD (N4)

11251-46150

4
Out of stock

18

SPARK PLUG This part replaces 09482-00056.

09482-00091

2
Out of stock

18

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

2
Out of stock

19

GEAR, TACHO. DRIVEN (NT:10) This part replaces 26431-45001.

26431-45002

1
Out of stock

20

SLEEVE

26441-49000

1
Out of stock

21

SEAL BAND

26451-45000

1
Out of stock

22

OIL SEAL

09289-05002

1
Out of stock

23

SCREW

09128-05101

1
Out of stock

24

PIPE, INTAKE

13110-44100

2
Out of stock

25

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

2
Out of stock

26

SCREW This part replaces 02112-06208.

02112-06207

4
Out of stock

27

4

$2.28

In stock

28

CLAMP

09402-54303

2
Out of stock
