1979 Suzuki GS425L AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1979 Suzuki GS425L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

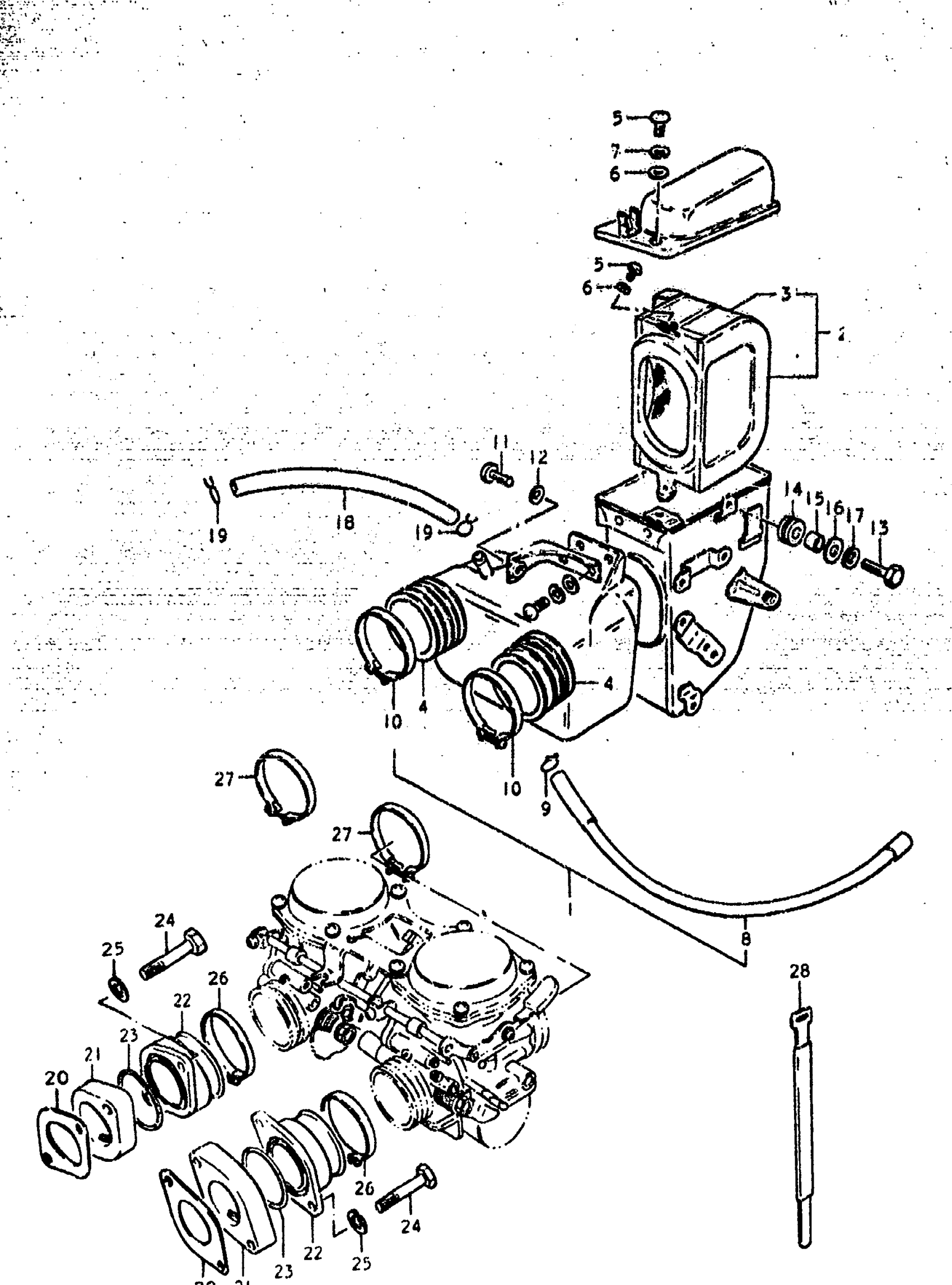

1979 Suzuki GS425L AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 10

13700-44011

1
Out of stock

2

FILTER

13780-44010

1
Out of stock

3

ELEMENT

13781-44010

1
Out of stock

4

HOSE, INLET

13722-44010

2
Out of stock

5

SCREW This part replaces 02112-05108.

02112-05107

3
Out of stock

6

WASHER This part replaces 08322-21058.

08322-01057

3
Out of stock

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

3
Out of stock

8

HOSE, DRAIN This part replaces 13791-44010.

13871-00020

1
Out of stock

9

CLIP This part replaces 13795-44010.

09401-14301

1
Out of stock

10

..CLAMP This part replaces 09402-60306.

09402-60208

2
Out of stock

11

SCREW This part replaces 02112-06108.

02112-06107

3
Out of stock

12

.WASHER This part replaces 08322-11068.

08322-0106B

3
Out of stock

13

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

14

1

$2.23

In stock

15

SPACER

09180-05011

1
Out of stock

16

WASHER This part replaces 09160-06007.

09160-06084

1
Out of stock

17

1

$2.28

In stock

18

HOSE,11X15X2000 This part replaces 09343-11005.

09352-11154-00B

1
Out of stock

19

CLIP

09401-14301

2
Out of stock

20

GASKET, CARBURETOR

13125-44001

2
Out of stock

21

INSULATOR

13129-44001

2
Out of stock

22

PIPE, INTAKE

13110-44001

2
Out of stock

23

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

2
Out of stock

24

BOLT This part replaces 01107-06358.

64455-07L00

4
Out of stock

25

4

$2.28

In stock

26

CLAMP

09402-54303

2
Out of stock

27

CLAMP

09402-58306

2
Out of stock

28

CLAMP This part replaces 09407-18301.

09407-18302

1
Out of stock
