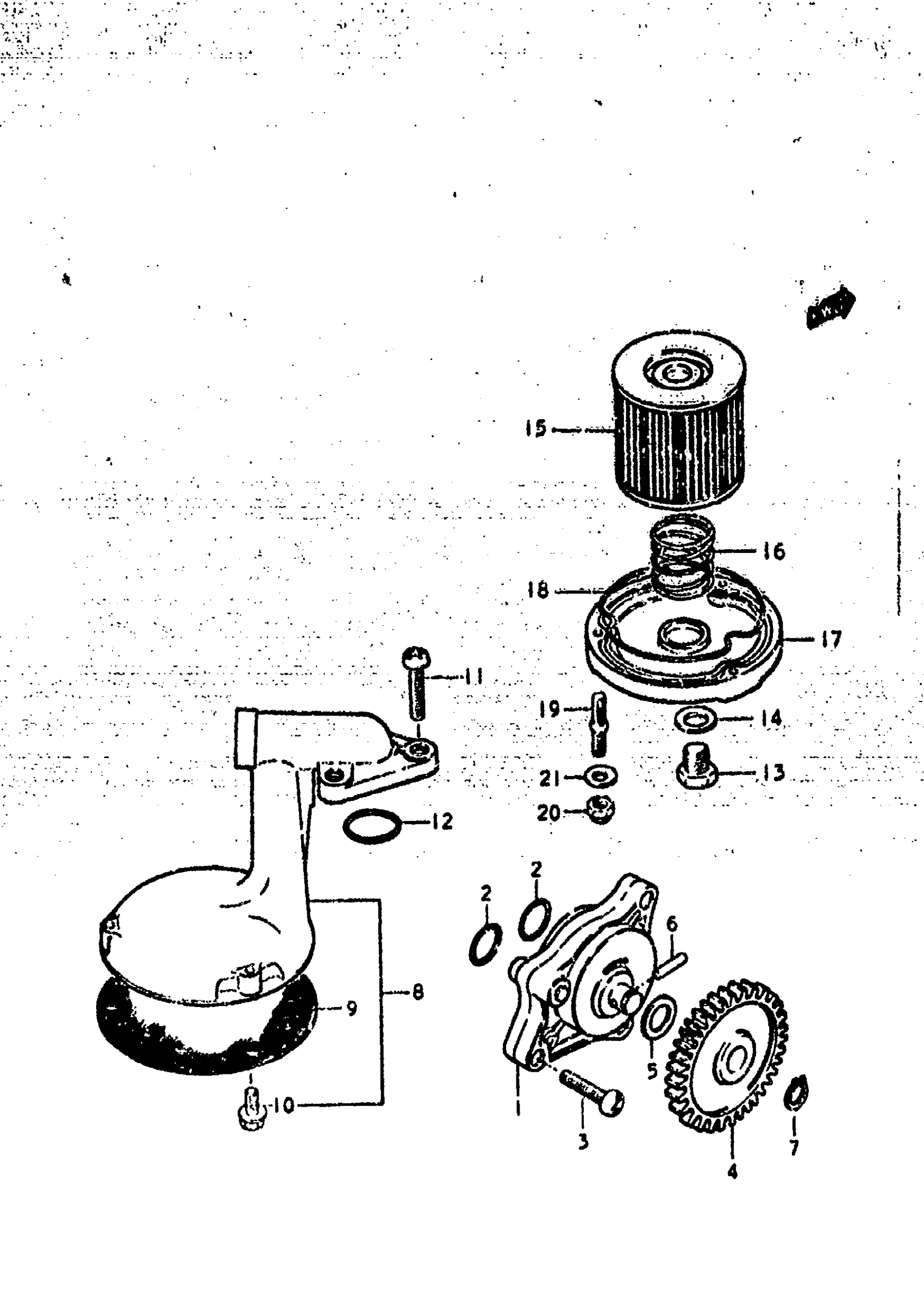

Suzuki GS425L (1979) OIL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL This part replaces 16400-45013.

16400-45020

Unavailable

2

O RING

09280-13004

$2.19

3

SCREW This part replaces 02112-06258.

02112-06257

$1.68

4

GEAR, OIL PUMP DRIVEN | NT:29

16331-44000

Unavailable

5

WASHER

08221-10185

$2.35

6

PIN

09261-04009

$1.50

7

CIRCLIP

08331-31109

$1.77

8

STRAINER, ENGINE OIL | Includes Item(s) 9 - 10

16520-44000

Unavailable

9

NET

16522-44001

Unavailable

10

BOLT This part replaces 01517-06108.

01550-06107

$3.05

11

SCREW This part replaces 02112-06208.

02112-06207

$1.77

12

O RING

09280-16005

$2.24

13

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.73

14

GASKET

09168-14004

$1.69

15

FILTER, ENGINE OIL

16510-45040

$5.30

16

SPRING

09440-32004

$3.22

17

CAP, ENGINE OIL FILTER This part replaces 16512-45100.

16512-45101

Unavailable

18

O RING

16518-45000

$5.23

19

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.89

20

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.83

21

WASHER This part replaces 08322-21068.

08322-01067

$1.86
