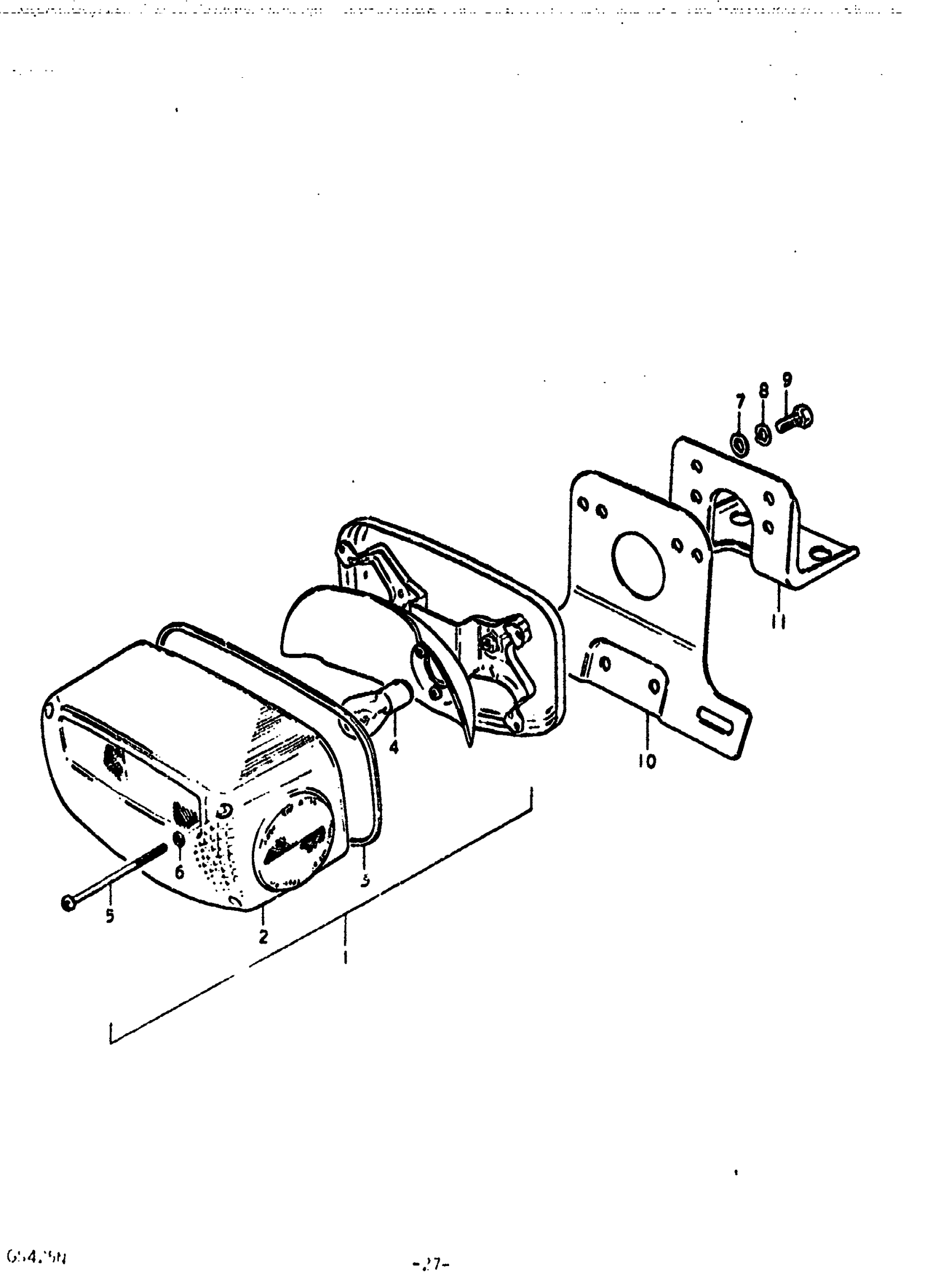

Suzuki GS425E (1979) REAR COMBINATION LAMP Diagram

#

Description

Price

1

LAMP ASSY, REAR COMBINATION | N,EN; Includes Item(s) 2 - 6

35710-45011

Unavailable

2

LENS,RR COMBI L | N,EN This part replaces 35712-45011.

35712-45013

Unavailable

3

GASKET | N,EN

35713-45010

Unavailable

4

BULB | N,EN; 12V, 23/8W

09471-12035

$4.26

5

SCREW 4X55 | N,EN This part replaces 02111-04558.

02112-04558

$1.73

6

GASKET | N,EN

35627-43010

$2.29

7

WASHER | N,EN This part replaces 08322-21068.

08322-01067

$1.93

8

LOCK WASHER | N,EN This part replaces 08321-21068.

08321-01067

$1.89

9

BOLT | N,EN This part replaces 01107-06128.

01500-06127

$2.01

10

NO DESCRIPTION AVAILABLE | N,EN This part replaces 35927-45002.

35927-45003

Unavailable

11

BRACKET, LICENCE PLATE | N,EN

35928-45001

Unavailable
