Partiron

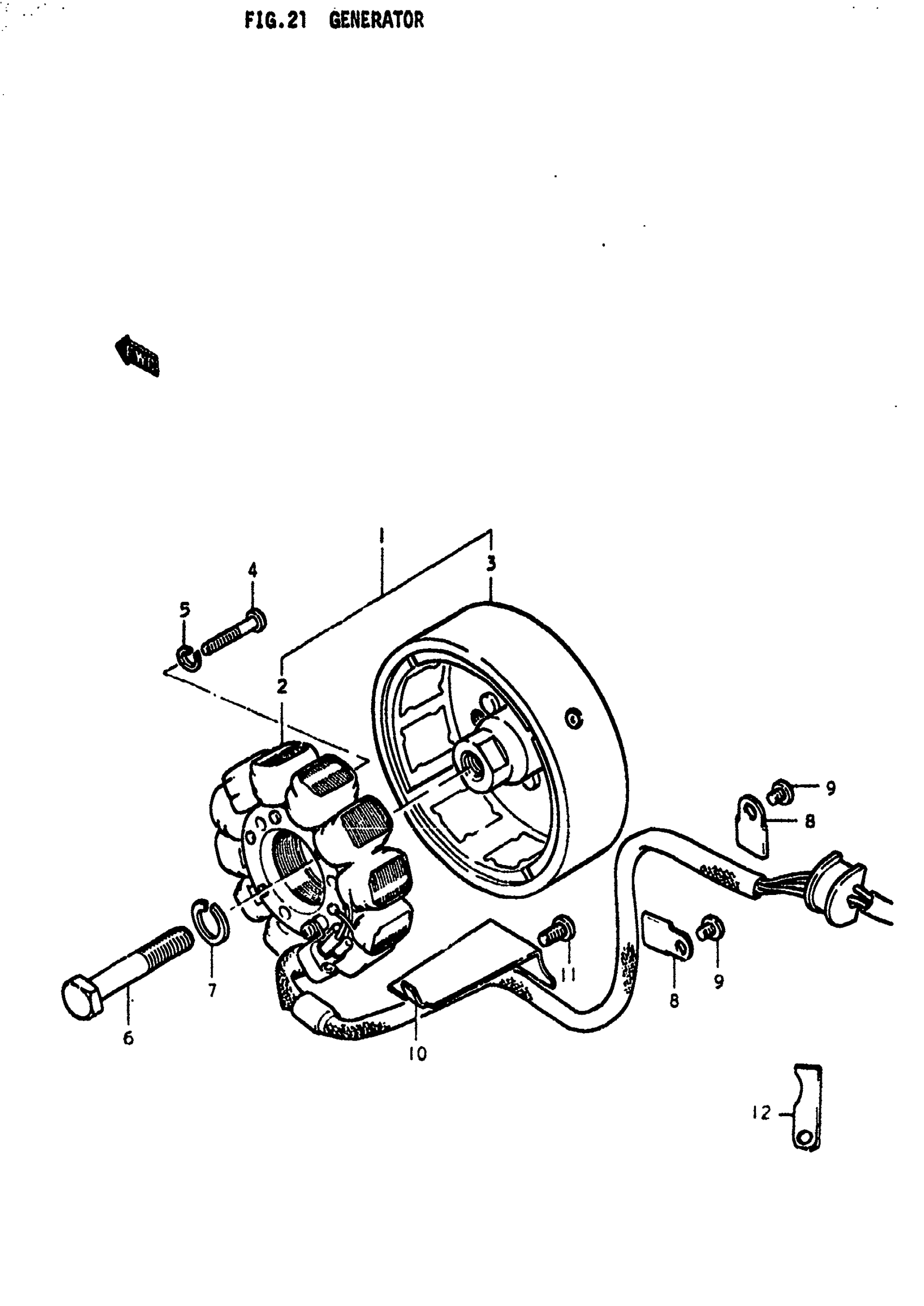

Suzuki GS425E (1979) GENERATOR Diagram

#

Description
Price

1

STATOR | N,EN; Includes Item(s) 2 - 3 This part replaces 31400-45020.

31401-45030

Unavailable

2

STATOR | N,EN This part replaces 31401-45020.

31401-45030

Unavailable

3

ROTOR | N,EN This part replaces 31402-45020.

31402-45030

Unavailable

4

SCREW | N,EN This part replaces 02112-05308.

02112-0530A

$1.93

5

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.83

6

BOLT | N,EN This part replaces 01107-12458.

01500-12457

$6.65

7

LOCK WASHER | N,EN This part replaces 08321-21128.

08321-01127

$2.07

8

CLAMP | N,EN

31497-45000

$2.17

9

SCREW | N,EN This part replaces 02112-05068.

09125-05122

$2.07

10

CLAMP | N,EN

31498-45000

$2.06

11

SCREW | N,EN This part replaces 02112-06108.

02112-06107

$1.45

12

CLAMP | N,EN

31497-44000

Unavailable
