1978 Suzuki GS400X Cylinder Head Diagram

← All diagrams

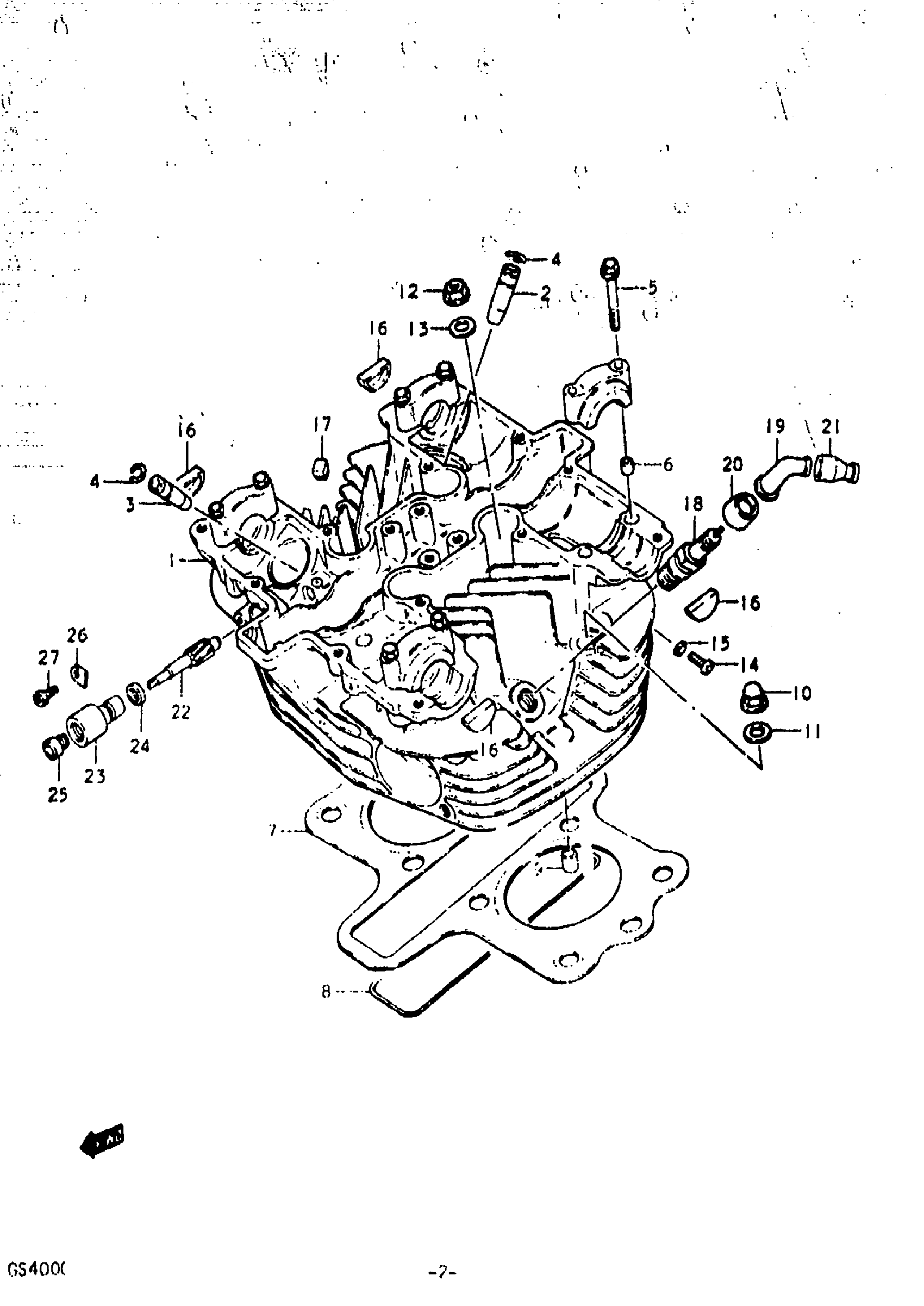

Find the part on the Cylinder Head diagram for your 1978 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Suzuki GS400X Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | C,XC; Includes Item(s) 2 - 6 This part replaces 11100-44812.

11100-44813

1
Out of stock

2

GUIDE, INTAKE VALVE | C,XC This part replaces 11115-45721.

11115-45740

2
Out of stock

3

GUIDE, EXHAUST VALVE | C,XC This part replaces 11116-45721.

11116-45740

2
Out of stock

4

RINC, VALVE GUIDE | C,XC

09381-10003

4
Out of stock

5

BOLT (6X39) | C,XC

09103-06026

8
Out of stock

6

PIN | C,XC

09206-08001

8
Out of stock

7

GASKET,CYLINDER | C,XC This part replaces 11141-44051.

11141-44053

1
Out of stock

8

O RING | C,XC

09280-99003

1
Out of stock

9

PIN | C,XC

04211-11189

2
Out of stock

10

NUT | C,XC This part replaces 09159-10023.

09159-10026

4
Out of stock

11

GASKET | C,XC

09168-10017

4
Out of stock

12

NUT, WHEEL SET | C,XC This part replaces 09159-10022.

08316-10107

4
Out of stock

13

WASHER | C,XC; 10.5x22x2.3

09160-10039

4
Out of stock

14

SCREW | C,XC This part replaces 02112-05208.

02112-05207

2
Out of stock

15

GASKET | C,XC

09168-05010

2
Out of stock

16

PLUG,ENG MTG,HO | C,XC This part replaces 09241-25002.

09241-25005

4
Out of stock

17

PAD, RUBBER | C,XC This part replaces 11152-45000.

11152-38A00

10
Out of stock

18

SPARK PLUG | C,XC; NGK, B-8ES

09482-00091

2
Out of stock

18

SPARK PLUG W24E | C,XC; ND, W24ES This part replaces 09482-00092.

09482-00247-111

2
Out of stock

19

CAP, SPARK PLUG | C,XC

33510-43010

2
Out of stock

20

SEAL, SPARK PLUG | C,XC

33541-69010

2
Out of stock

21

SEAL,HIGH TENSION CORD (SIDE) | C,XC This part replaces 33542-98000.

33542-38B00

2
Out of stock

22

GEAR, TACHO. DRIVEN (NT:10) | C,XC; NT:10 This part replaces 26431-45001.

26431-45002

1
Out of stock

23

SLEEVE | C,XC This part replaces 26441-45000.

26441-49000

1
Out of stock

24

SEAL BAND | C,XC

26451-45000

1
Out of stock

25

O, SEAL | C,XC This part replaces 09289-05001.

09289-05002

1
Out of stock

26

PLATE, GEAR SLEEVE | C,XC

26449-33000

1
Out of stock

27

SCREW | C,XC

09128-05101

1
Out of stock
