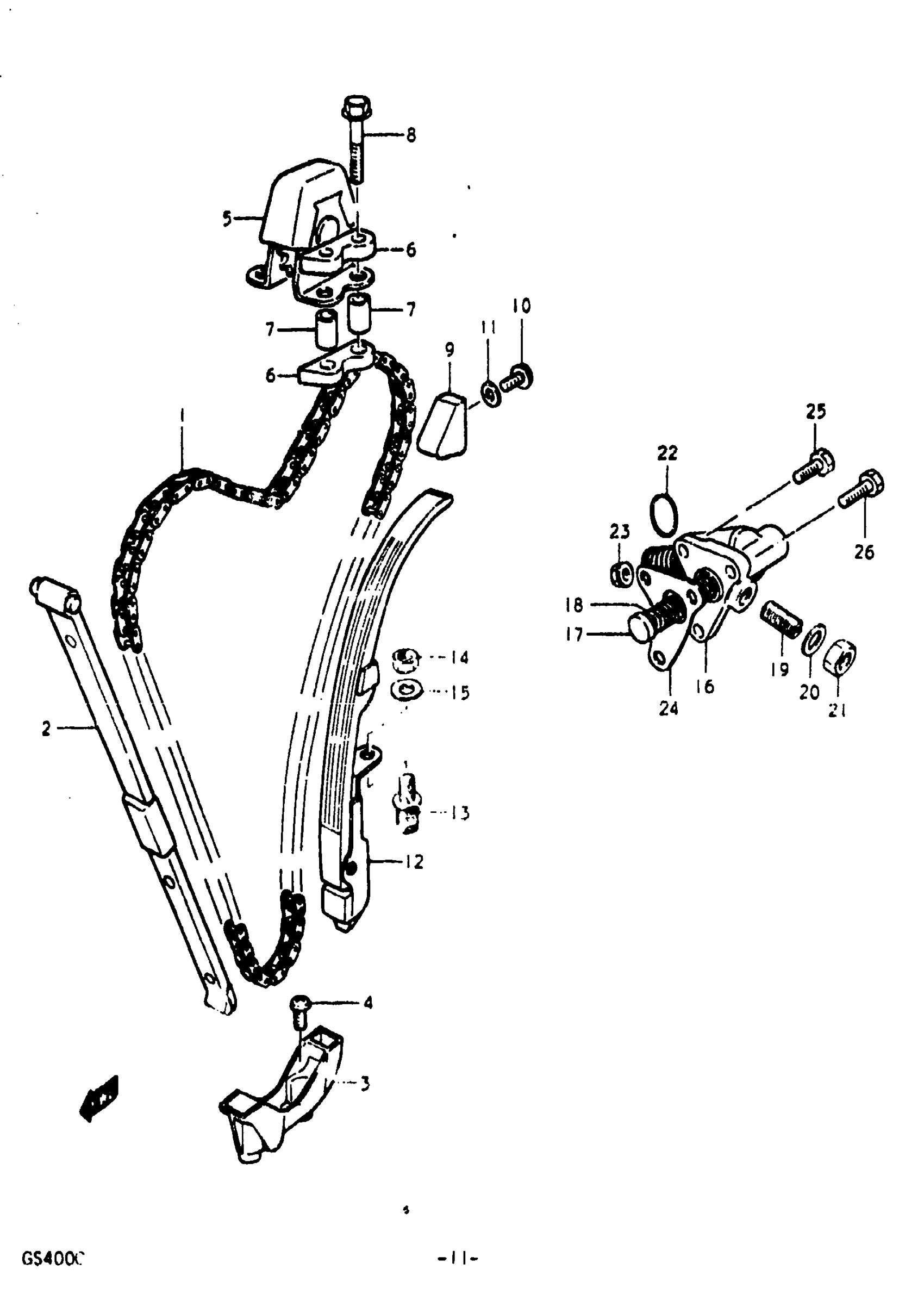

Suzuki GS400X (1978) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM THAFT DRIVE | C,XC; 120L

12760-45040

$166.47

2

GUIDE,CAM CHAIN | C,XC This part replaces 12771-45040.

12771-45053

$45.15

3

HOLDER, CAM CHAIN GUIDE NO.1 | C,XC

12776-45001

Unavailable

4

SCREW | C,XC This part replaces 02112-06208.

02112-06207

$1.77

5

IDLER, CAM CHAIN | C,XC

12780-45050

Unavailable

6

CUSHION, IDLER | C,XC

12788-45050

Unavailable

7

SPACER (6.5X10X13) | C,XC This part replaces 09180-06060.

09180-06291

$2.67

8

BOLT | C,XC This part replaces 01517-06308.

01550-06307

$2.73

9

GUIDE, CAM CHAIN NO.2 | C,XC

12791-45040

$16.03

10

BOLT | C,XC This part replaces 01517-06128.

01550-06127

$2.31

11

GASKET (5.8X13X1.2) | C,XC This part replaces 09168-06009.

09168-06023

$2.01

12

TENSIONER, CAM CHAIN | C,XC

12810-45040

Unavailable

13

STUD BOLT | C,XC

09108-08050

Unavailable

14

NUT | C,XC This part replaces 08310-22088.

08310-00087

$1.83

15

WASHER | C,XC This part replaces 08322-11088.

08322-01087

$1.86

16

ADJUSTER,TENSIO | C,XC; Includes Item(s) 17 - 23 This part replaces 12830-45001.

12830-45003

Unavailable

17

PUSH ROD | C,XC This part replaces 12833-45000.

12833-45001

Unavailable

18

SPPING | C,XC

09440-12017

$2.67

19

SCREW | C,XC

12838-45001

$9.50

20

WASHER | C,XC This part replaces 08322-11088.

08322-01087

$1.86

21

NUT | C,XC This part replaces 08310-12088.

08310-00087

$1.83

22

.O RING (D:1.9,ID:5.7) | C,XC This part replaces 09280-06003.

09280-06005

$1.45

23

NUT | C,XC This part replaces 09159-06017.

08319-31067

$2.01

24

GASKET,TENS ADJ | C,XC This part replaces 12837-45000.

12837-45000-H17

Unavailable

25

BOLT | C,XC

09128-06017

Unavailable

26

BOLT | C,XC

09128-06017

Unavailable
