1978 Suzuki GS400X Crankcase RH Cover Diagram

← All diagrams

Find the part on the Crankcase RH Cover diagram for your 1978 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

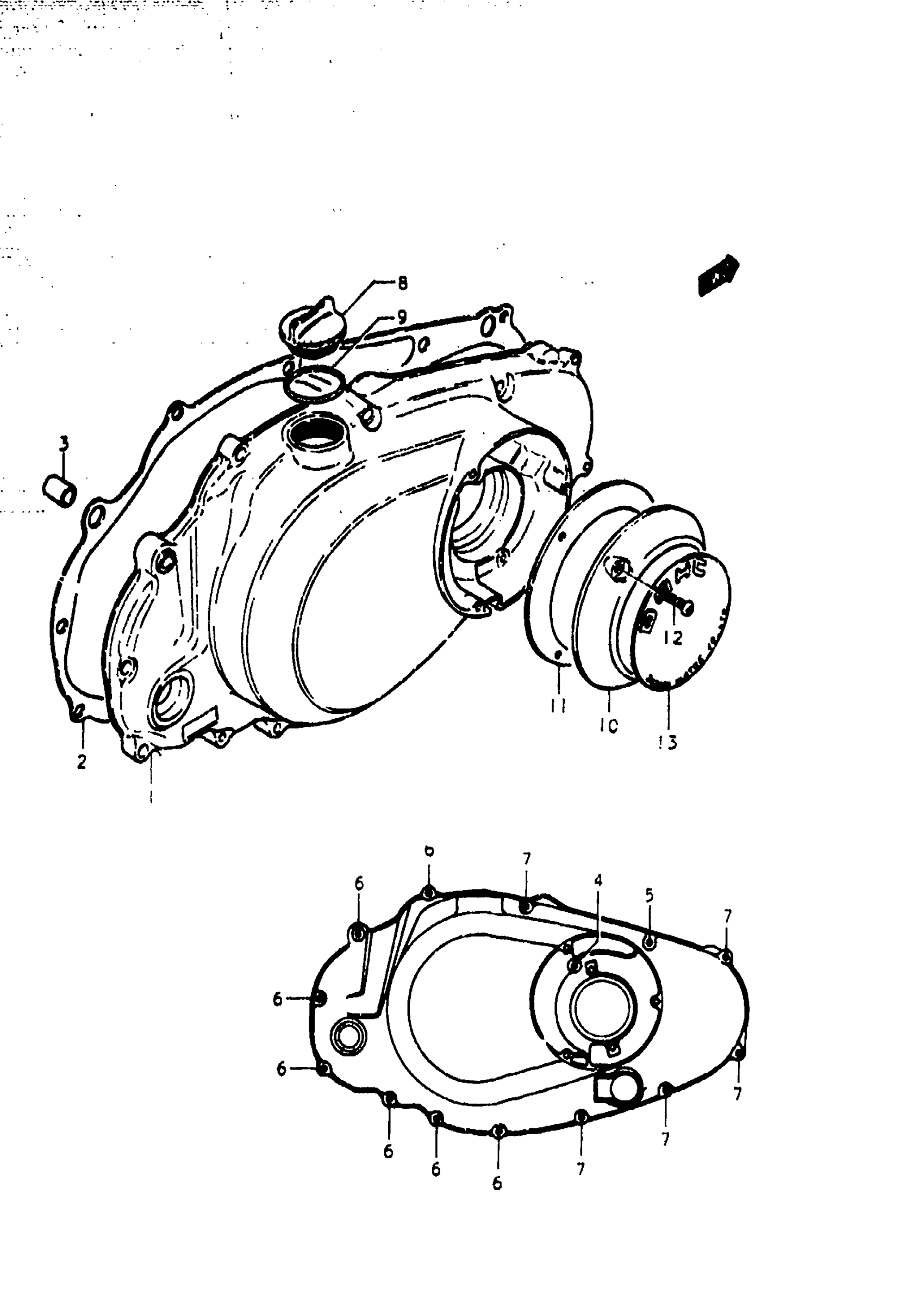

1978 Suzuki GS400X Crankcase RH Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | C,XC

11340-44001

1
Out of stock

2

GASKET,CLUTCH C | C,XC This part replaces 11482-44000.

11482-44001

1
Out of stock

3

PIN | C,XC This part replaces 09206-13001.

04211-13189

2
Out of stock

4

SCREW | C,XC This part replaces 02112-06608.

02112-06607

1
Out of stock

5

SCREW (6X45) | C,XC This part replaces 02112-06458.

02112-06457

1
Out of stock

6

SCREW | C,XC This part replaces 02112-06358.

02112-06357

7
Out of stock

7

SCREW | C,XC This part replaces 02112-06258.

02112-06257

5
Out of stock

8

CAP, OIL FILLER | C,XC This part replaces 09259-30001.

09200-30810

1
Out of stock

9

O RING | C,XC

09280-32005

1
Out of stock

10

COVER, CONTACT BREAKER | C,XC This part replaces 11381-44000.

11381-44003

1
Out of stock

11

GASKET | C,XC This part replaces 11491-44000.

11491-44001

1
Out of stock

12

SCREW | C,XC This part replaces 02112-05208.

02112-05207

3
Out of stock

13

EMBLEM | C,XC; "DOHC" This part replaces 68235-45000.

68235-45200

1
Out of stock
