1978 Suzuki GS400X Contact Breaker Diagram

← All diagrams

Find the part on the Contact Breaker diagram for your 1978 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

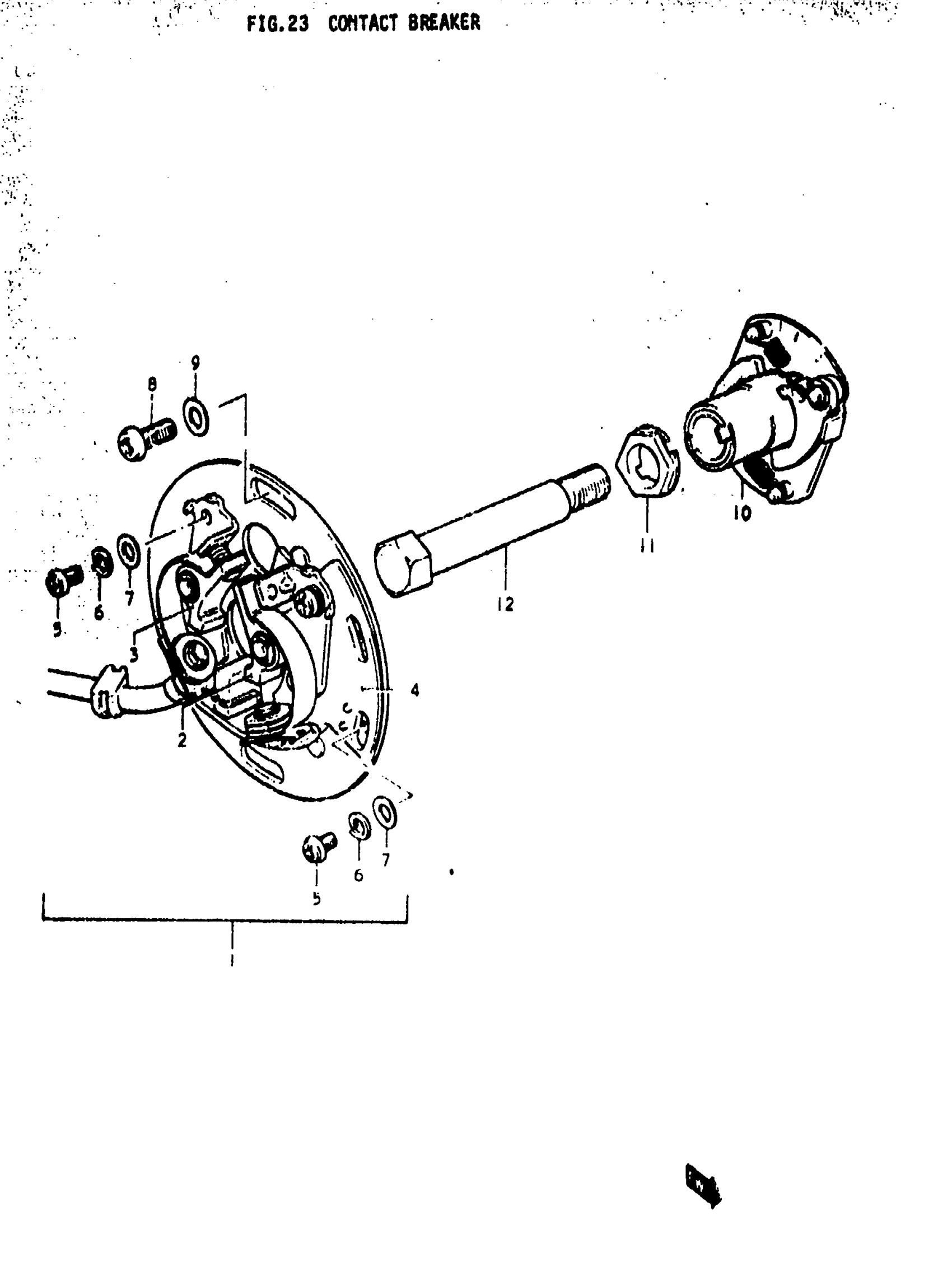

1978 Suzuki GS400X Contact Breaker Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | C,XC; Includes Item(s) 2 - 7 This part replaces 33110-44020.

33110-44X51

1
Out of stock

2

POINT ASSY RH | C,XC This part replaces 33140-45020.

33140-44110

1
Out of stock

3

POINT ASSY LH | C,XC This part replaces 33160-45020.

33160-44110

1
Out of stock

4

PLATE, CONTACT POINT SHIFTING | C,XC

33143-44020

1
Out of stock

5

6

$1.67

In stock

7

6

$2.03

In stock

8

SCREW | C,XC

09125-05024

2
Out of stock

9

1

$2.33

In stock

10

GOVERNOR ASSY, ADVANCE | C,XC

33120-44021

1
Out of stock

11

WASHER | C,XC

33465-47000

1
Out of stock

12

1

$3.46

In stock
