1977 Suzuki GS400X Transmission Diagram

← All diagrams

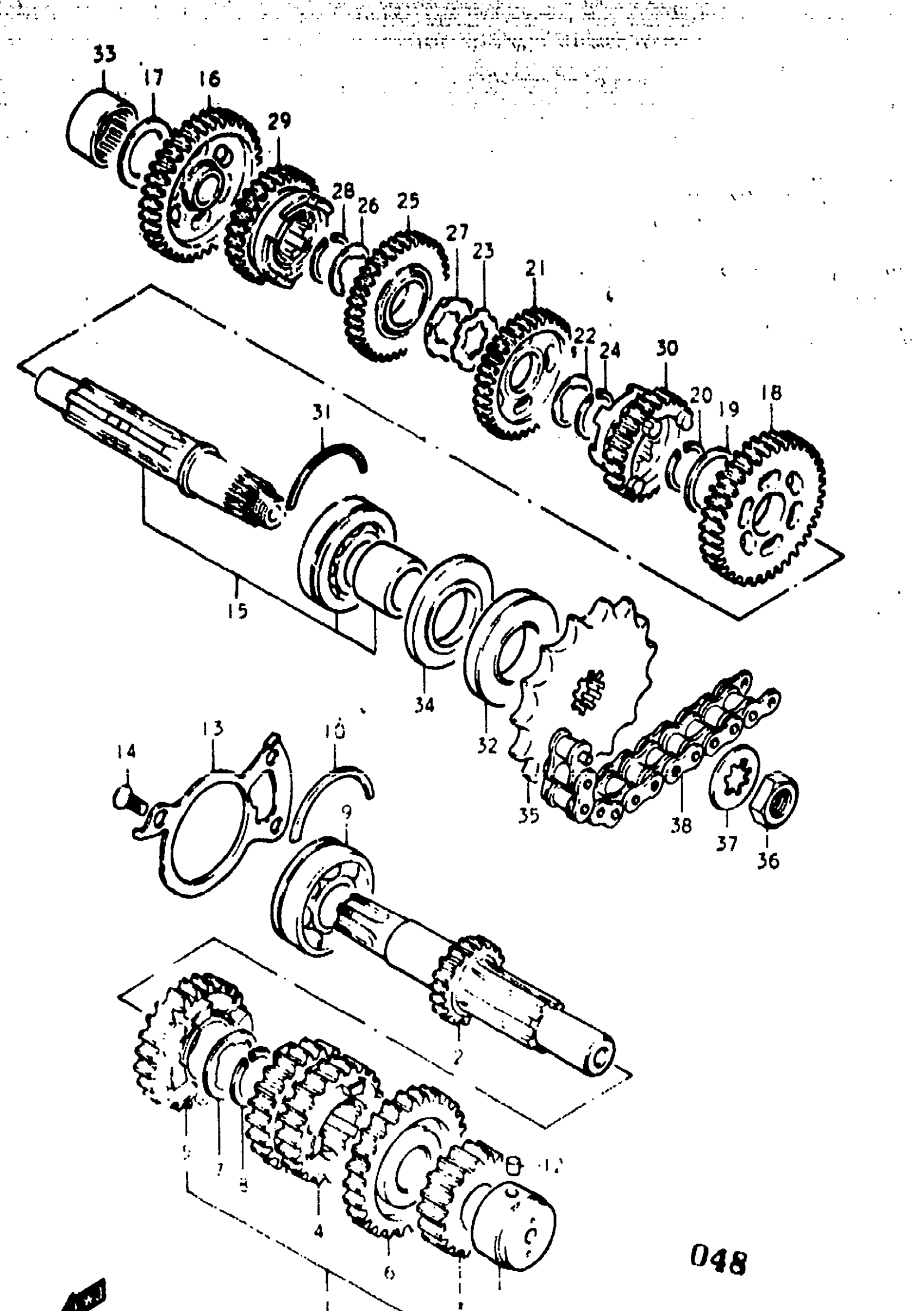

Find the part on the Transmission diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GS400X Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT ASSY | B,XB This part replaces 24120-44002.

24120-44003

1
Out of stock

2

.COUNTERSHAFT | B,XB; NT:13; Includes Item(s) 3 - 8

24121-44000

1
Out of stock

3

GEAR, 2ND DRIVE | B,XB; NT:18

24221-44001

1
Out of stock

4

GEAR, 3RD DRIVE | B,XB; NT:21/24

24231-44001

1
Out of stock

5

GEAR, 5TH DRIVE (NT:26) | B,XB; NT:26 This part replaces 24250-44000.

24250-44001

1
Out of stock

6

GEAR, 6TH DRIVE | B,XB; NT:27

24260-44000

1
Out of stock

7

WASHER LOCK (25.1X31X1.0) | B,XB

09167-25012

1
Out of stock

8

CIRCLIP | B,XB

09380-25010

1
Out of stock

9

BEARING, LH | B,XB This part replaces 09262-25051.

09262-25105

1
Out of stock

10

C RING | B,XB This part replaces 09390-62006.

09390-62012

1
Out of stock

11

BEARING, LH (20X34X20) | B,XB This part replaces 09263-20026.

09263-20025

1
Out of stock

12

PIN | B,XB This part replaces 06211-07122.

04221-07129

1
Out of stock

13

HOLDER, BEARING | B,XB

24741-44000

1
Out of stock

14

SCREW | B,XB This part replaces 02122-06168.

02122-06167

3
Out of stock

15

DRIVESHAFT | B,XB This part replaces 24100-44810.

24100-44811

1
Out of stock

16

GEAR, 1ST DRIVEN (NT:32) | B,XB; NT:32 This part replaces 24310-44000.

24310-44001

1
Out of stock

17

WASHER | B,XB

08211-20341

1

$3.05

In stock

18

GEAR, 2ND DRIVEN | B,XB; NT:32 This part replaces 24320-44000.

24320-44002

1
Out of stock

19

WASHER | B,XB

08211-25321

1

$3.24

In stock

20

CIRCLIP | B,XB

09380-25010

1
Out of stock

21

GEAR, 3RD DRIVEN (NT:29) | B,XB; NT:29 This part replaces 24331-44002.

24331-44003

1
Out of stock

22

WASHER LOCK (25.1X31X1.0) | B,XB

09167-25012

1
Out of stock

23

WASHER,LOCK (25.1X41X1.5) | B,XB

09167-25013

1
Out of stock

24

CIRCLIP | B,XB

09380-25010

1
Out of stock

25

GEAR, 4TH DRIVEN (NT:27) | B,XB; NT:27 This part replaces 24341-44002.

24341-44003

1
Out of stock

26

WASHER LOCK (25.1X31X1.0) | B,XB

09167-25012

1
Out of stock

27

LOCK WASHER | B,XB

09169-25001

1
Out of stock

28

CIRCLIP | B,XB

09380-25010

1
Out of stock

29

GEAR, 5TH DRIVEN (NT:25) | B,XB; NT:25 This part replaces 24351-44000.

24351-20F02

1
Out of stock

30

GEAR, 6TH DRIVEN (NT:23) | B,XB; NT:23 This part replaces 24361-44001.

24361-44010

1
Out of stock

31

C RING | B,XB This part replaces 09390-62006.

09390-62012

1
Out of stock

32

OIL SEAL (32x62x70-1) | B,XB This part replaces 09283-32014.

09283-32015

1
Out of stock

33

BEARING, RH (20X34X17) | B,XB This part replaces 09263-20028.

09263-20027

1
Out of stock

34

OIL SEAL | B,XB

09282-32002

1
Out of stock

35

SPROCKET, ENGINE | B,XB; NT:16

27511-44000

1
Out of stock

36

NUT | B,XB

09140-20009

1
Out of stock

37

WASHER (25.3X41.6X1) | B,XB This part replaces 09167-25011.

09167-25019

1
Out of stock

38

NO DESCRIPTION AVAILABLE | B,XB; 104L This part replaces 27600-33012.

27600-33020

1
Out of stock
