1977 Suzuki GS400X Chain Case - Shock Absorber Diagram

← All diagrams

Find the part on the Chain Case - Shock Absorber diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

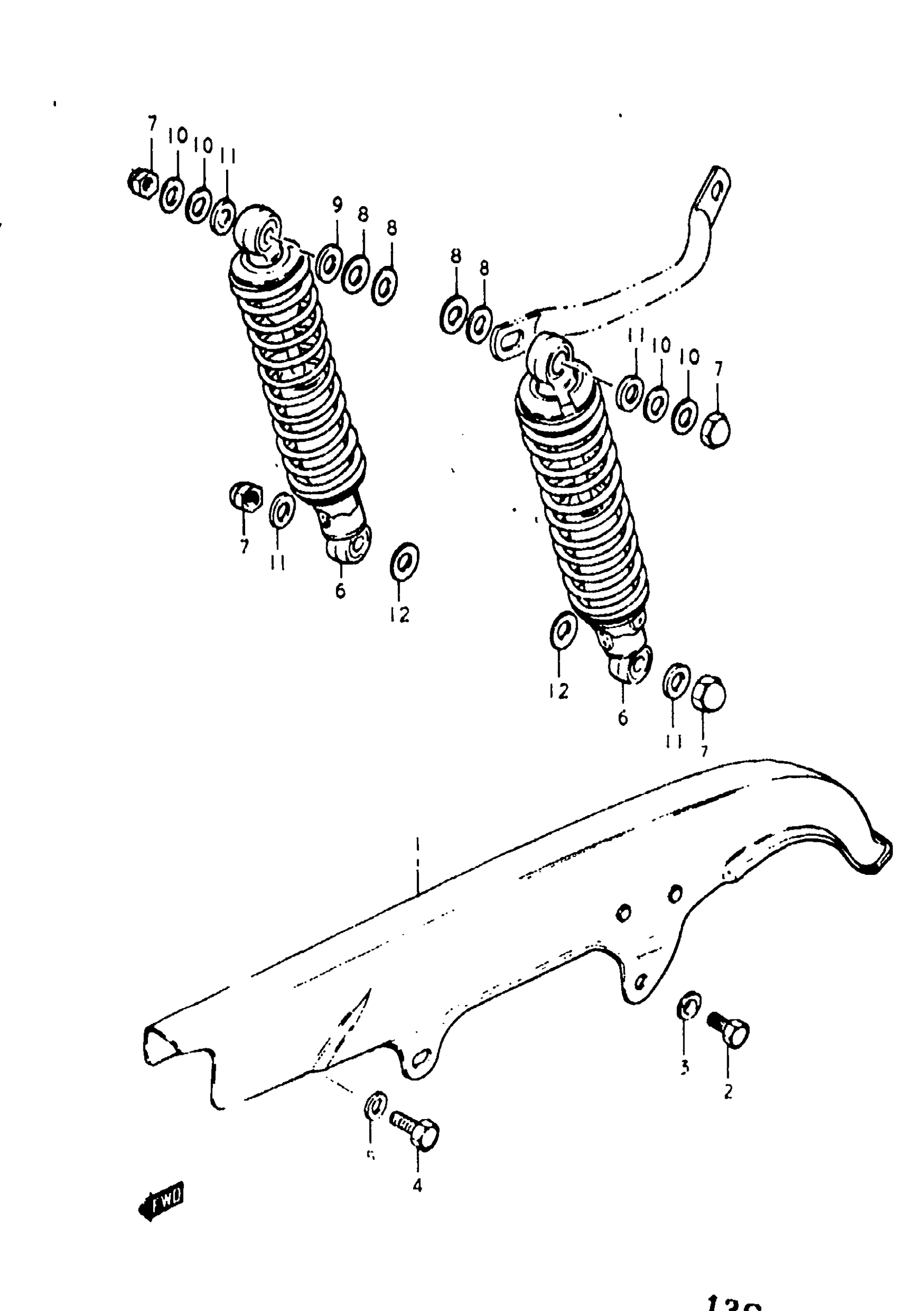

1977 Suzuki GS400X Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN CASE | B,XB

61310-44000-019

1
Out of stock

2

BOLT | B,XB

09100-06011

2

$1.82

In stock

3

2

$1.80

In stock

4

BOLT | B,XB This part replaces 01112-06108.

01500-06107

1
Out of stock

5

WASHER (6.5X18X1.0) | B,XB

09160-06028

1
Out of stock

6

NO DESCRIPTION AVAILABLE | B,XB; 6.5x18x1 This part replaces 62100-44030.

62100-44411

2
Out of stock

7

4

$2.73

In stock

8

WASHER | B,XB This part replaces 08322-11128.

08322-01127

4
Out of stock

9

WASHER, FRONT AXLE | B,XB; 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

1
Out of stock

11

WASHER | B,XB; 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

4
Out of stock

12

2

$2.43

In stock
