1977 Suzuki GS400X Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

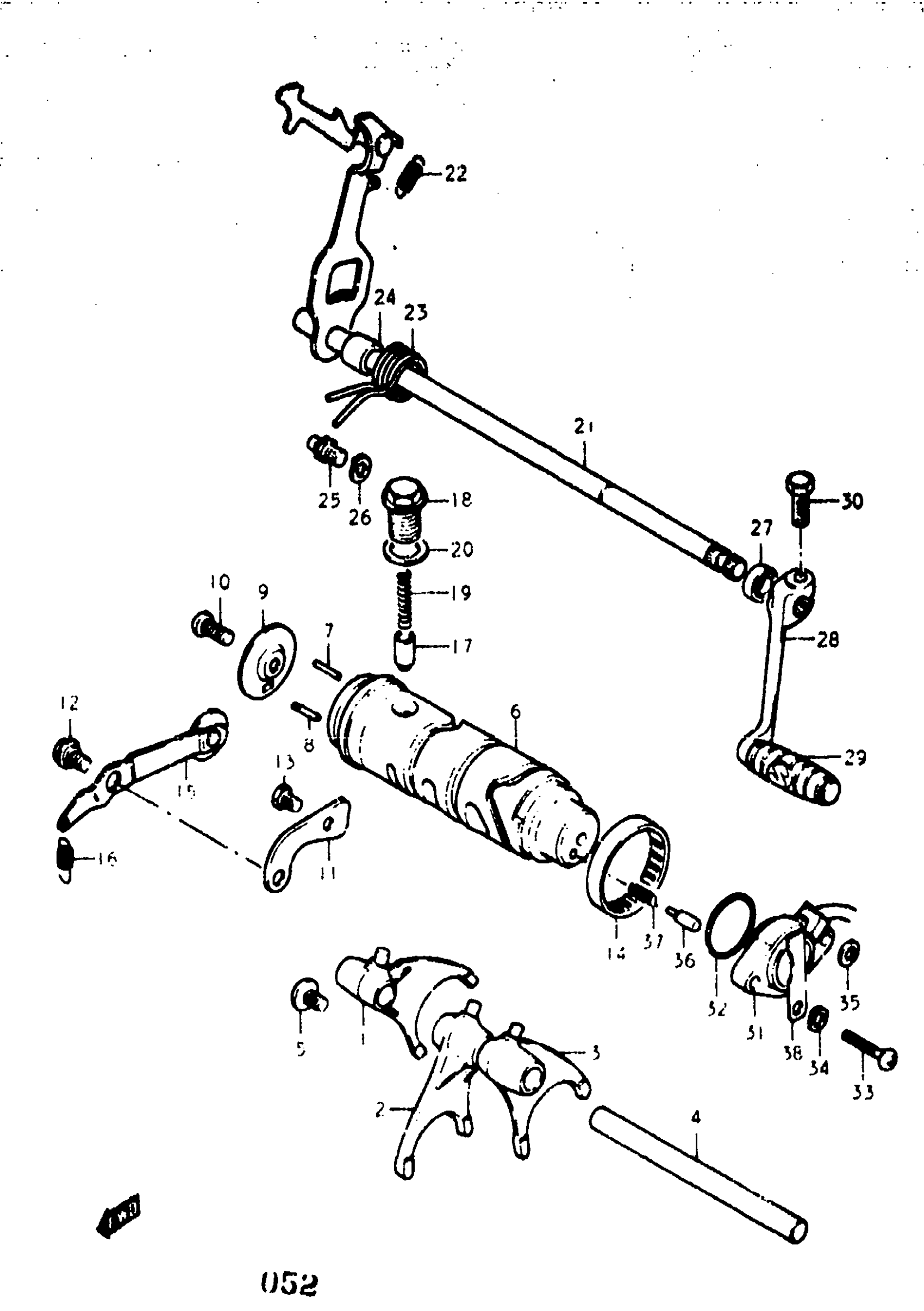

1977 Suzuki GS400X Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING NO.1 | B,XB This part replaces 25211-44000.

25211-44001

1
Out of stock

2

FORK, GEAR SHIFTING NO.2 | B,XB This part replaces 25221-44000.

25221-44001

1
Out of stock

3

FORK, GEAR SHIFTING NO.3 | B,XB

25231-44000

1
Out of stock

4

SHAFT, GEAR SHIFT FORK NO.1 | B,XB This part replaces 25411-31000.

25411-18900

1
Out of stock

5

SCREW | B,XB

02142-06108

1
Out of stock

6

CAM, GEAR SHIFTING | B,XB

25311-44000

1
Out of stock

7

PIN | B,XB

09261-04001

5
Out of stock

8

PIN | B,XB

09209-04013

1
Out of stock

9

HOLDER, DRIVE PIN | B,XB

25322-44000

1
Out of stock

10

SCREW | B,XB This part replaces 02112-06168.

02112-06167

1
Out of stock

11

GUIDE, CAM | B,XB This part replaces 25341-44000.

25341-33300

1
Out of stock

12

BOLT | B,XB This part replaces 09111-06019.

09111-06054

1
Out of stock

13

BOLT | B,XB This part replaces 01112-06128.

01500-06127

1
Out of stock

14

BEARING | B,XB

09263-40001

1
Out of stock

15

STOPPER, CAM NO.1 | B,XB

25350-44000

1
Out of stock

16

SPRING | B,XB

09443-09007

1
Out of stock

19

SPRING | B,XB

09440-05018

1
Out of stock

20

GASKET | B,XB

09168-14004

1
Out of stock

21

SHAFT, GEAR SHIFTING | B,XB

25510-44000

1
Out of stock

22

SPRING | B,XB

09443-07013

1
Out of stock

23

SPRING | B,XB This part replaces 09444-26012.

09444-26013

1
Out of stock

24

SPACER | B,XB

09180-12068

1
Out of stock

25

STOPPER, ARM | B,XB This part replaces 25671-01000.

25671-01011

1
Out of stock

26

1

$2.28

In stock

27

OIL SEAL (12X22X9) | B,XB This part replaces 09285-12002.

09285-12006

1
Out of stock

28

LEVER ASSY, GEAR SHIFTING | B,XB; Includes Item(s) 29

25600-44000

1
Out of stock

29

.RUBBER,GEAR SHIFT PEDAL | B,XB This part replaces 25652-16500.

25652-16510

1
Out of stock

30

BOLT, REAR | B,XB This part replaces 01122-08208.

01500-08207

1
Out of stock

31

BODY, SWITCH | B,XB This part replaces 37720-45010.

37720-45100

1
Out of stock

32

O RING (D:2.4,ID:26.2) | B,XB This part replaces 09280-26003.

09280-26005

1
Out of stock

33

SCREW | B,XB This part replaces 02111-05207.

02112-05207

2
Out of stock

34

LOCK WASHER | B,XB This part replaces 08321-21058.

08321-0105A

2
Out of stock

35

WASHER | B,XB This part replaces 08322-21058.

08322-01057

1
Out of stock

36

CONTACT | B,XB

09209-05011

1
Out of stock

37

SPRING | B,XB

09440-04010

1
Out of stock

38

CLAMP, GENERATOR LEAD WIRE | B,XB

31497-44000

1
Out of stock
