1977 Suzuki GS400X OIL Pump Diagram

← All diagrams

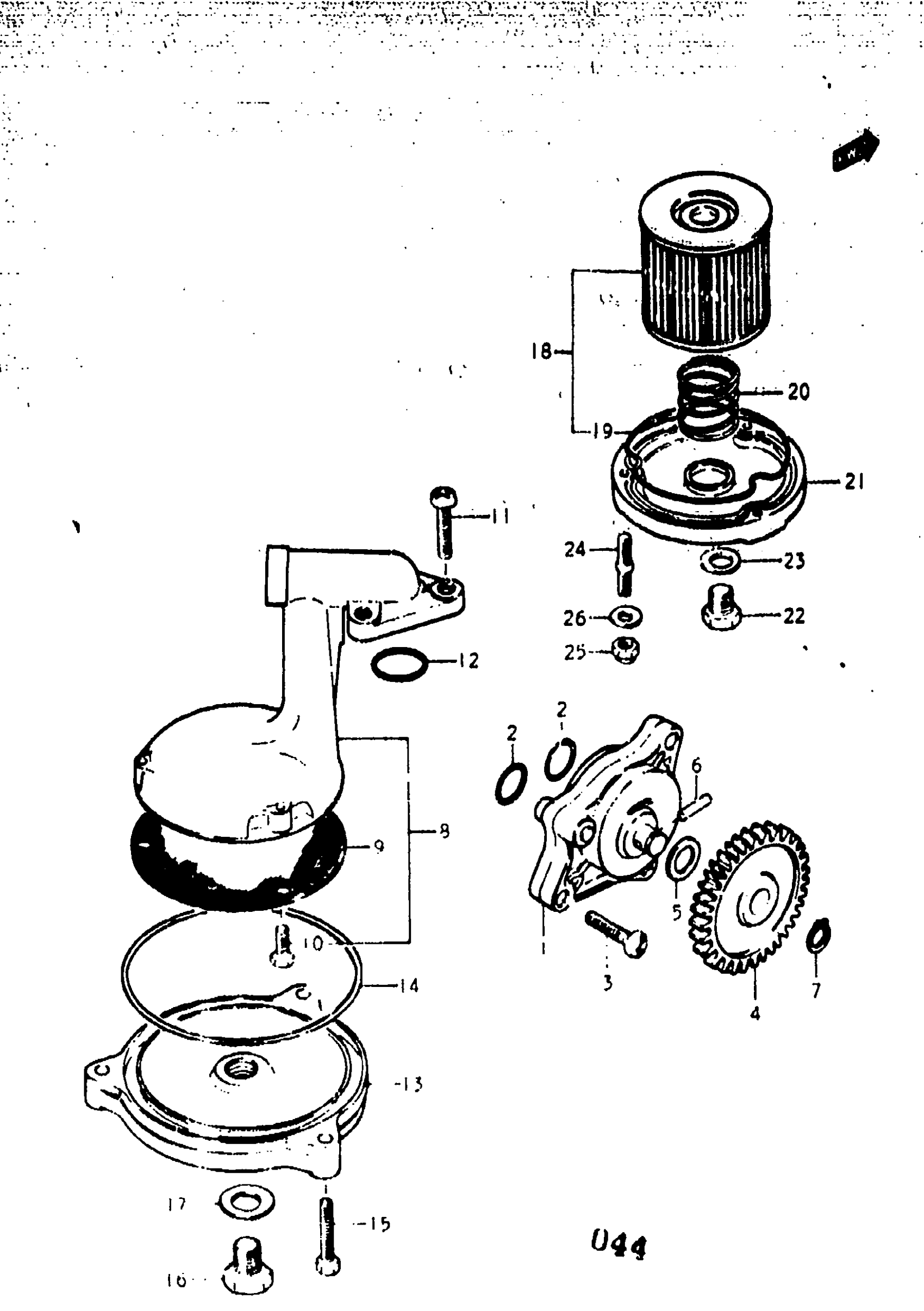

Find the part on the OIL Pump diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GS400X OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL | B,XB This part replaces 16400-45010.

16400-45020

1
Out of stock

2

O RING | B,XB

09280-13004

2
Out of stock

3

SCREW | B,XB This part replaces 02112-06258.

02112-06257

3
Out of stock

4

GEAR, OIL PUMP DRIVEN | B,XB; NT:29

16331-44000

1
Out of stock

5

WASHER | B,XB

08221-10185

1
Out of stock

6

PIN | B,XB

09261-04009

1
Out of stock

7

CIRCLIP | B,XB This part replaces 08331-11109.

08331-31109

1
Out of stock

8

STRAINER, ENGINE OIL | B,XB; Includes Item(s) 9 - 10

16520-44000

1
Out of stock

9

NET | B,XB

16522-44001

1
Out of stock

10

BOLT | B,XB This part replaces 01511-06108.

01550-06107

2
Out of stock

11

SCREW | B,XB This part replaces 02112-06208.

02112-06207

3
Out of stock

12

O RING | B,XB

09280-16005

1
Out of stock

13

CAP, OIL STRAINER | B,XB

11811-44000

1
Out of stock

14

O RING | B,XB

09280-83001

1
Out of stock

15

BOLT | B,XB This part replaces 01512-06258.

01550-06257

3
Out of stock

16

PLUG (MAGNETO) | B,XB This part replaces 09247-14001.

09247-14002

1
Out of stock

17

GASKET | B,XB

09168-14004

1
Out of stock

18

FILTER, ENGINE OIL | B,XB; Includes Item(s) 19 This part replaces 16500-45810.

16510-45040

1
Out of stock

19

O RING | B,XB

16518-45000

1
Out of stock

20

SPRING | B,XB

09440-32004

1

$3.22

In stock

21

CAP, ENGINE OIL FILTER | B,XB This part replaces 16512-45000.

16512-45101

1
Out of stock

22

PLUG, OIL DRAIN | B,XB

09247-10001

1
Out of stock

23

GASKET | B,XB

09168-10007

1
Out of stock

24

STUD BOLT | B,XB This part replaces 01421-06208.

01421-0620A

3
Out of stock

25

NUT | B,XB

08313-12068

—
Out of stock

26

.WASHER | B,XB This part replaces 08322-11068.

08322-0106B

3
Out of stock
