1977 Suzuki GS400X CAM Chain Diagram

← All diagrams

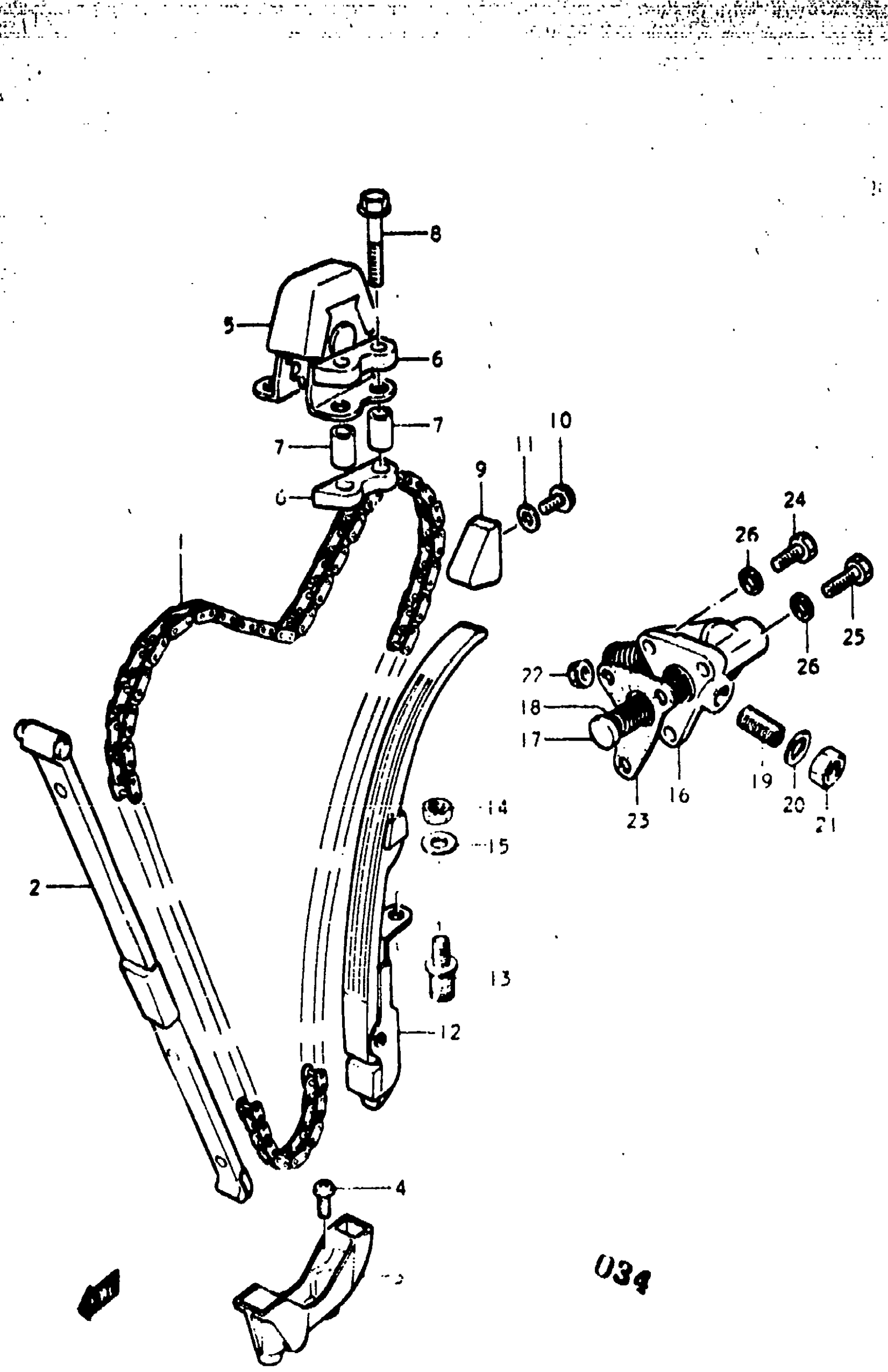

Find the part on the CAM Chain diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GS400X CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE | B,XB; 120G

12760-45040

1
Out of stock

2

GUIDE,CAM CHAIN | B,XB This part replaces 12771-45040.

12771-45053

1
Out of stock

3

HOLDER, CAM CHAIN GUIDE NO.1 | B,XB

12776-45001

1
Out of stock

4

SCREW | B,XB This part replaces 02112-06208.

02112-06207

2
Out of stock

5

IDLER, CAM CHAIN | B,XB

12780-45050

1
Out of stock

6

CUSHION, IDIER | B,XB

12788-45050

4
Out of stock

7

SPACER (6.5X10X13) | B,XB This part replaces 09180-06060.

09180-06291

4
Out of stock

8

BOLT | B,XB This part replaces 01511-06308.

01550-06257

4
Out of stock

9

GUIDE, CAM CHAIN NO.2 | B,XB

12791-45040

1
Out of stock

10

BOLT | B,XB This part replaces 01512-06128.

01550-06127

2
Out of stock

11

GASKET (5.8X13X1.2) | B,XB This part replaces 09168-06009.

09168-06023

2
Out of stock

12

TENSIONER, CAM CHAIN | B,XB

12810-45040

1
Out of stock

13

STUD BOLT | B,XB

09108-08050

1
Out of stock

14

1

$1.93

In stock

15

WASHER | B,XB This part replaces 08322-11088.

08322-01087

1
Out of stock

16

ADJUSTER ASSY, TENSIONER | B,XB; Includes Item(s) 17 - 22

12830-44001

—
Out of stock

17

PUSH ROD | B,XB This part replaces 12833-45000.

12833-45001

1
Out of stock

18

SPRING | B,XB

09440-12012

1
Out of stock

19

NO DESCRIPTION AVAILABLE | B,XB This part replaces 12838-44001.

12838-44990

1
Out of stock

20

GASKET | B,XB

09168-10014

1
Out of stock

21

NUT | B,XB This part replaces 08312-32108.

08310-00107

1
Out of stock

22

NUT | B,XB This part replaces 09159-06017.

08319-31067

1
Out of stock

23

GASKET,TENS ADJ | B,XB This part replaces 12837-45000.

12837-45000-H17

1
Out of stock

24

BOLT, STARTING MOTOR | B,XB This part replaces 09128-06012.

09103-06212

2
Out of stock

25

BOLT | B,XB

09128-06017

1
Out of stock

26

WASHER | B,XB This part replaces 08322-21068.

08322-01067

3
Out of stock
