1977 Suzuki GS400X Crankshaft Diagram

← All diagrams

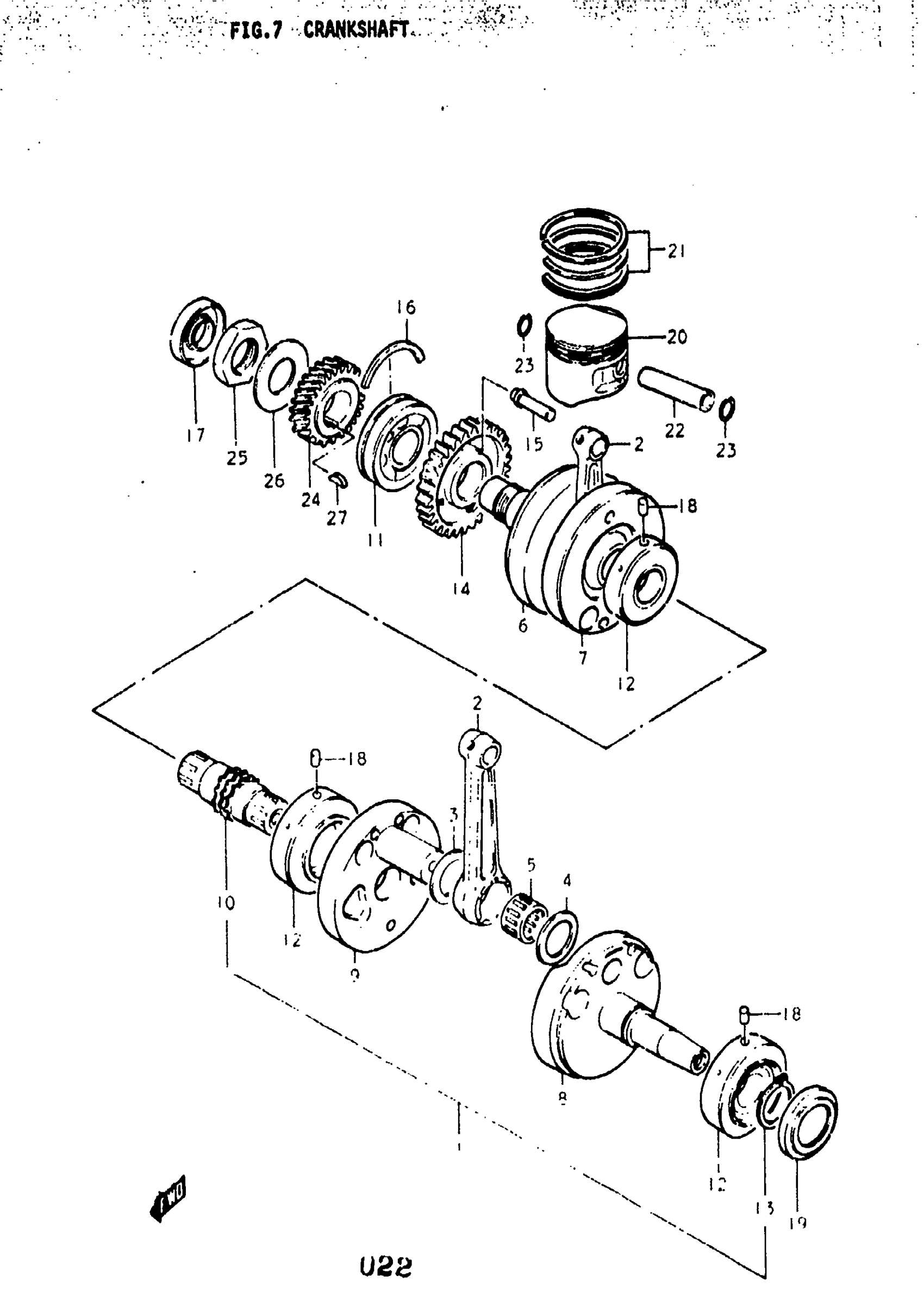

Find the part on the Crankshaft diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GS400X Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET | B,XB; Includes Item(s) 2 - 15 This part replaces 12200-44001.

12200-44003

1
Out of stock

2

ROD, CONNECTING | B,XB This part replaces 12161-44000.

12161-44001

2
Out of stock

3

WASHER | B,XB; 28x48x2

09160-28009

2
Out of stock

4

WASHER | B,XB; 28x48x1

09160-28010

2
Out of stock

5

BEARING | B,XB

09263-28010

2
Out of stock

6

CRANKSHAFT, RH | B,XB

12220-44001

1
Out of stock

7

WEB, LH | B,XB This part replaces 12230-44001.

12230-44002

1
Out of stock

8

CRANKSHAFT, LH | B,XB

12261-44001

1
Out of stock

9

WEB, LH | B,XB This part replaces 12230-44001.

12230-44002

1
Out of stock

10

SHAFT, TINING CHAIN DRIVE | B,XB

12281-45000

1
Out of stock

11

BEARING | B,XB

09262-30033

1
Out of stock

12

BEARING | B,XB This part replaces 09264-32002.

09264-32009

3
Out of stock

13

CIRCLIP | B,XB

08331-31329

1
Out of stock

14

GEAR, CRANK BALANCER DRIVE | B,XB; NT:46

12661-44001

1
Out of stock

15

PIN | B,XB

09209-10014

1
Out of stock

16

C RING | B,XB

09390-72004

1
Out of stock

17

OIL SEAL, RH | B,XB

09283-25062

1
Out of stock

18

PIN | B,XB This part replaces 06211-07122.

04221-07129

3
Out of stock

19

OIL SEAL, STARTER CLUTCH GEAR | B; 48x60x8 This part replaces 09289-48001.

09289-48002

1
Out of stock

20

PISTON (STD) | B,XB This part replaces 12111-45001.

12111-45002

2
Out of stock

20

NO DESCRIPTION AVAILABLE | B,XB; OS:0.5 This part replaces 12111-45701.

12103-45820-050

2
Out of stock

20

NO DESCRIPTION AVAILABLE | B,XB; OS:1.0 This part replaces 12111-45711.

12103-45820-100

2
Out of stock

21

PISTON RING SET (STD) | B,XB This part replaces 12100-45810.

12140-45013

2
Out of stock

21

PISTON RING SET (OS:0.5) | B,XB; OS:0.5 This part replaces 12100-45820.

12140-45013-050

2
Out of stock

21

PISTON RING SET (OS:1.0) | B,XB; OS:1.0 This part replaces 12100-45830.

12140-45013-100

2
Out of stock

22

PIN, PISTON | B,XB

12151-29001

2
Out of stock

23

SNAP RING | B,XB This part replaces 09381-16002.

09381-16001

4
Out of stock

24

GEAR, PRIMARY DRIVE | B,XB; NT:28

21111-44000

1
Out of stock

25

NUT | B,XB This part replaces 09140-28001.

09140-28003

1
Out of stock

26

WASHER | B,XB

09164-28001

1
Out of stock

27

KEY | B,XB

08341-31059

1
Out of stock
