1977 Suzuki GS400X Cylinder Head Diagram

← All diagrams

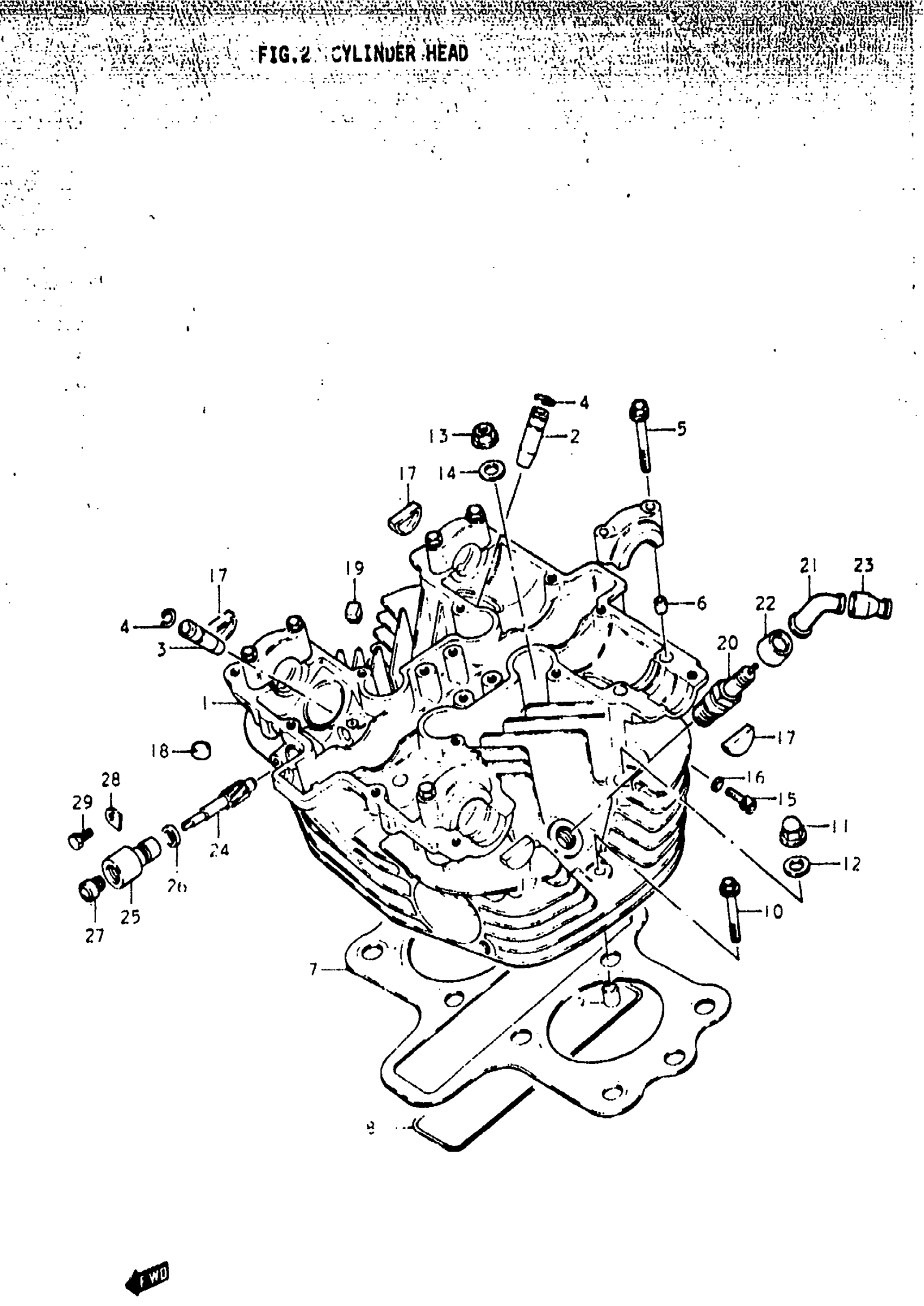

Find the part on the Cylinder Head diagram for your 1977 Suzuki GS400X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GS400X Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | BxB; Includes Item(s) 2 - 6 This part replaces 11100-44810.

11100-44813

1
Out of stock

2

GUIDE, INTAKE VALVE | B,XB; SEE NOTE This part replaces 11115-45720.

11115-45740

2
Out of stock

3

GUIDE, EXHAUST VALVE | B,XB; SEE NOTE This part replaces 11116-45720.

11116-45740

2
Out of stock

4

RING, VALVE GUIDE | BxB This part replaces 09381-10002.

09381-10003

4
Out of stock

5

BOLT (6X39) | BxB

09103-06026

8
Out of stock

6

PIN | BxB

09206-08001

8
Out of stock

7

GASKET,CYLINDER | BxB This part replaces 11141-44051.

11141-44053

1
Out of stock

8

O RING | BxB

09280-99003

1
Out of stock

9

PIN | BxB

04211-11189

2
Out of stock

10

BOLT (CHROME) | BxB This part replaces 01512-06458.

01550-06457

2
Out of stock

11

NUT | BxB This part replaces 09159-10023.

09159-10026

4
Out of stock

12

GASKET | BxB

09168-10017

4
Out of stock

13

NUT, WHEEL SET | BxB This part replaces 09159-10022.

08316-10107

4
Out of stock

14

WASHER | BxB; 10.5x22x2.3

09160-10039

4
Out of stock

15

BOLT, INTAKE PORT | BxB

09106-05001

2
Out of stock

16

GASKET | BxB

09168-05010

2
Out of stock

17

PLUG, CYLINDER HEAD SIDE | BxB

09241-23002

4
Out of stock

18

PAD, RUBBER | BxB; COLUMN

11151-45000

8
Out of stock

19

PAD, RUBBER | B,XB; QUBE This part replaces 11152-45000.

11152-38A00

10
Out of stock

20

SPARK PLUG | B,XB; NGK, B-BES

09482-00091

2
Out of stock

20

SPARK PLUG W24E | B,XB; ND, W24ES This part replaces 09482-00092.

09482-00247-111

2
Out of stock

21

CAP, SPARK PLUG | BxB

33510-43010

2
Out of stock

22

SEAL, SPARK PLUG | BxB

33541-69010

2
Out of stock

23

SEAL,HIGH TENSION CORD (SIDE) | BxB This part replaces 33542-98000.

33542-38B00

2
Out of stock

24

GEAR, TACHO. DRIVEN (NT:10) | B,XB; NT:10 This part replaces 26431-45001.

26431-45002

1
Out of stock

25

SLEEVE | B,XB This part replaces 26441-45000.

26441-49000

1
Out of stock

26

SEAL BAND | B,XB

26451-45000

1
Out of stock

27

O, SEAL | B,XB This part replaces 09289-05001.

09289-05002

1
Out of stock

28

PLATE, GEAR SLEEVE | B,XB

26449-33000

1
Out of stock

29

SCREW | B,XB

09128-05101

1
Out of stock
