1977 Yamaha GS340A Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1977 Yamaha GS340A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

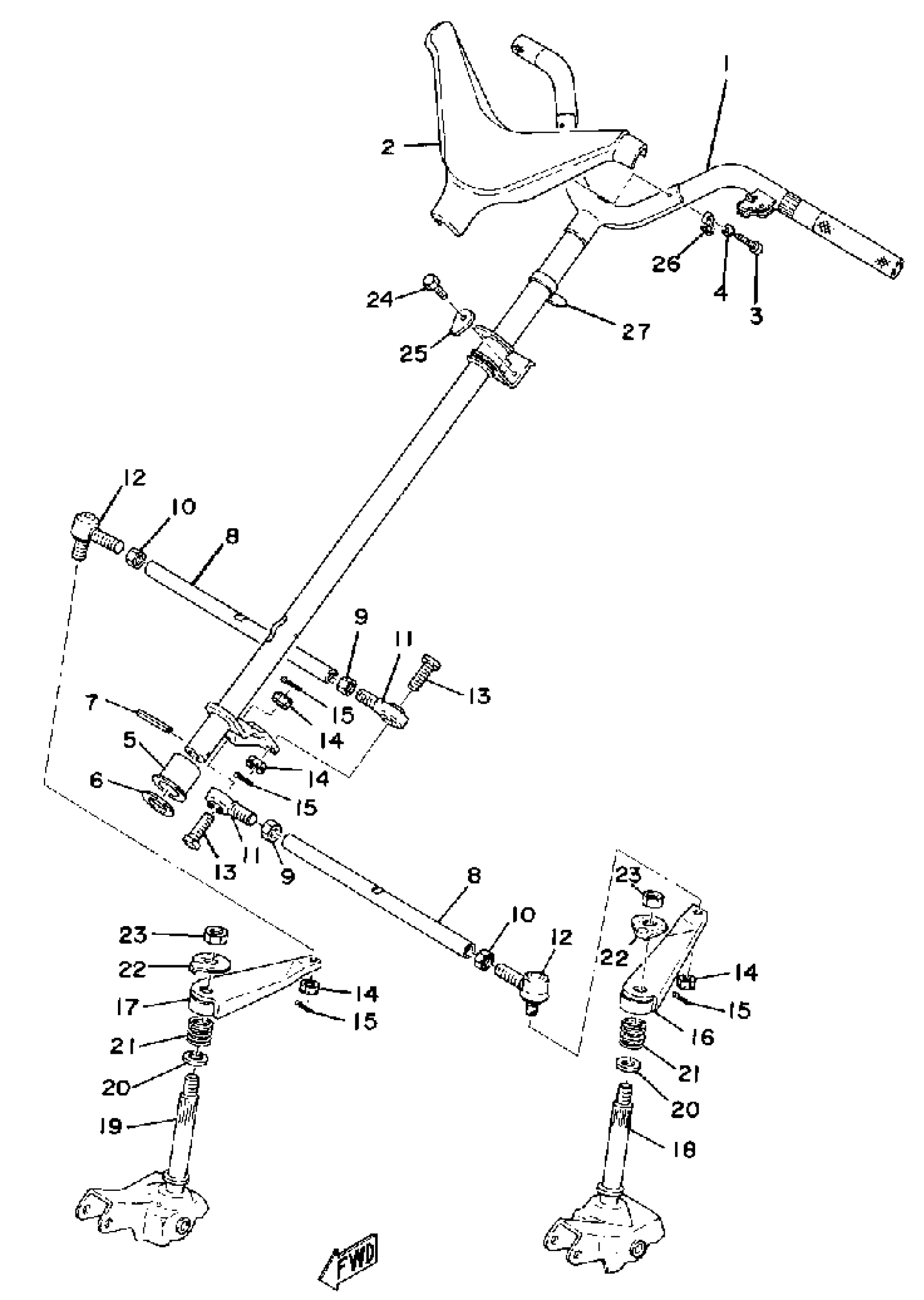

1977 Yamaha GS340A Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(8E3-23811-00-00)

1
Out of stock

2

PAD, STEERING

(863-23815-01-00)

1
Out of stock

3

SCREW, PAN

98507-05035-00

1

$6.69

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

BEARING, STRG LOWER

(853-23875-00-00)

1
Out of stock

6

BEARING, STEERING

(841-23812-01-00)

1
Out of stock

7

PIN, SPRING

91609-60045-00

1
Out of stock

8

ROD, STEERING RELAY

(861-23821-00-00)

1
Out of stock

9

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

10

NUT (821-23834-00)

90170-12054-00

1
Out of stock

11

JOINT, UNIVERSAL 1

861-23841-00-00

1
Out of stock

12

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

13

BOLT

90109-10409-00

1
Out of stock

14

NUT, CASTLE

95307-10900-00

—

$7.55

In stock

15

PIN, COTTER

91490-25020-00

1

$2.94

In stock

16

ARM, OUTSIDE 1

899-23851-00-00

1
Out of stock

17

ARM, OUTSIDE 2

890-23852-00-00

1
Out of stock

18

COLUMN, SKI 1

(899-23853-00-00)

1
Out of stock

19

COLUMN, SKI 2

(899-23854-00-00)

1
Out of stock

20

SPACER

90560-20037-00

1
Out of stock

21

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

22

WASHER, LOCK (810-23857-00)

90215-12031-00

1
Out of stock

23

NUT(3DM)

95304-12600-00

—

$6.68

In stock

24

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

25

WASHER, LOCK

(90215-06038-00)

1
Out of stock

26

CLAMP

(90462-08003-00)

1
Out of stock

27

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
