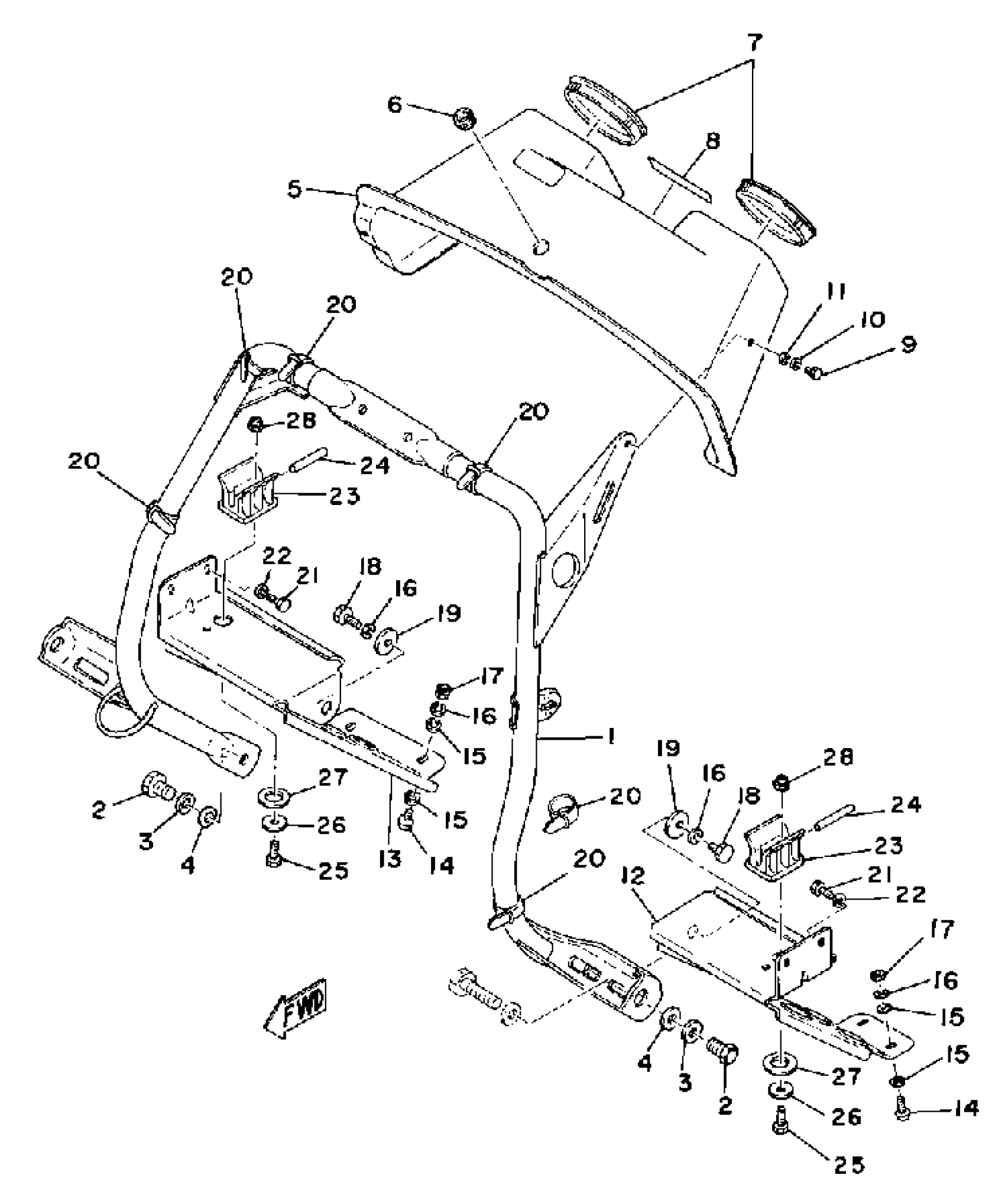

Find the part on the Steering Gate diagram for your 1977 Yamaha GS340A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha GS340A Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

(884-23870-00-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

4

WASHER, LOCK 2

(861-23895-00-00)

1
Out of stock

5

PANEL, INSTRUMENT

(897-77711-00-00)

1
Out of stock

6

GROMMET (462)

90480-13018-00

1

$6.25

In stock

7

ORMNT, INSTR PNL 1

(861-77715-00-00)

1
Out of stock

8

INDICATOR 4

888-77744-00-00

1
Out of stock

9

BOLT, HEXAGON

(97306-05012-00)

1
Out of stock

10

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

11

WASHER(1RW)

92907-05600-00

1
Out of stock

12

FOOTREST 1

(8E3-27411-00-00)

1
Out of stock

13

FOOTREST 2

(8E3-27421-00-00)

1
Out of stock

14

SCREW, PAN

98507-06014-00

1

$6.18

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

BOLT (661)

97013-06012-00

—

$4.71

In stock

19

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

20

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

21

BOLT, HEXAGON

97313-05016-00

1
Out of stock

22

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

23

CLAMP 3

878-77137-01-00

1
Out of stock

24

STOPPER

878-77188-00-00

1
Out of stock

25

BOLT,HEXAGON

97017-06008-00

—
Out of stock

26

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

27

WASHER, PLATE

90201-15239-00

1
Out of stock

28

NUT, NYLON

95707-06300-00

—

$3.20

In stock
