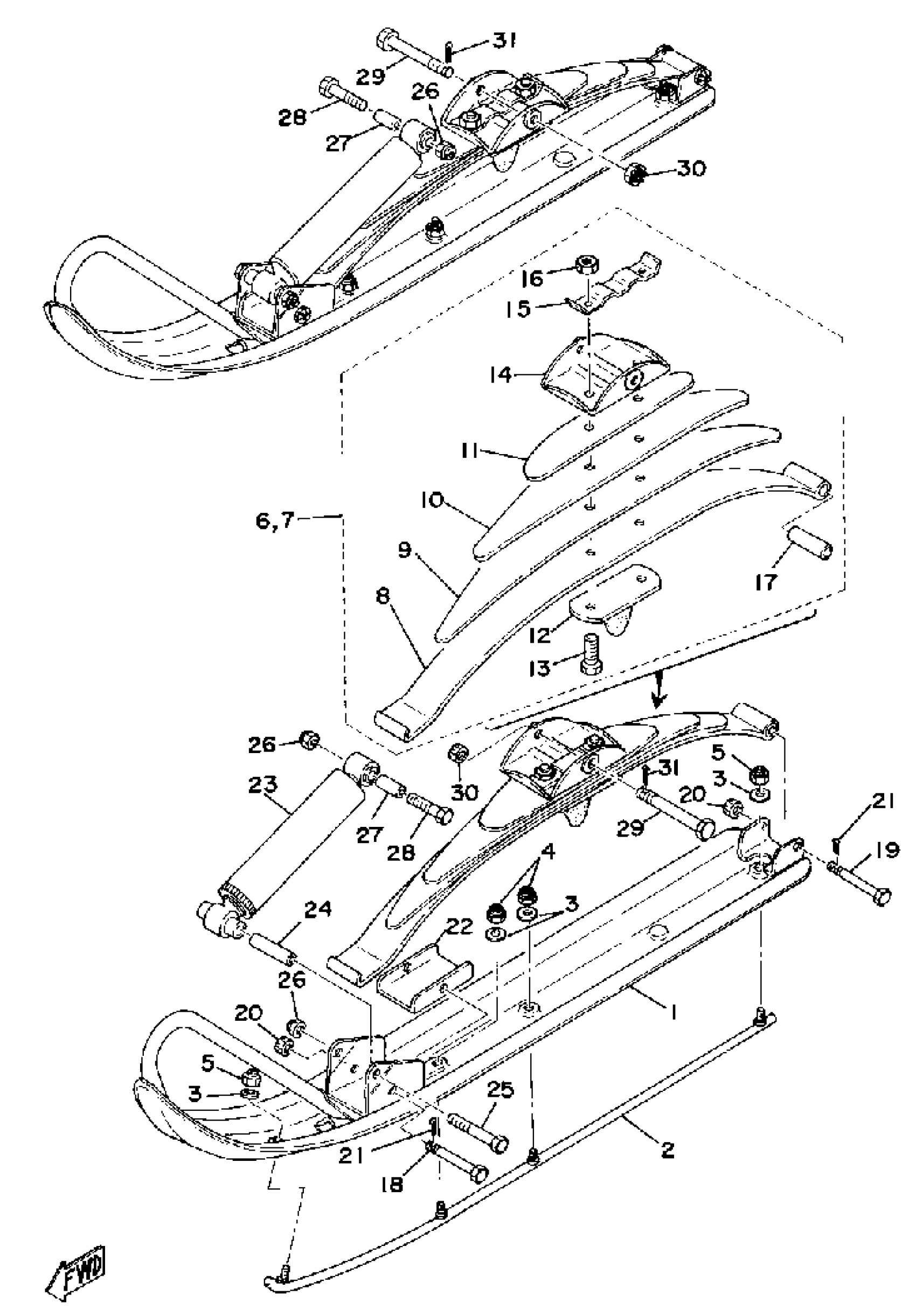

Find the part on the SKI diagram for your 1977 Yamaha GS340A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha GS340A SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8E3-23710-09-00

1
Out of stock

2

RUNNER 1

8E3-23731-00-XX

1
Out of stock

3

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

4

NUT

90185-08055-00

1

$8.31

In stock

5

NUT, NYLON

95717-08300-00

1

$2.57

In stock

6

SPRING ASSEMBLY 1

899-23760-00-00

1
Out of stock

7

SPRING ASSEMBLY 2

(899-23770-00-00)

1
Out of stock

8

LEAF 1

888-23761-10-00

1
Out of stock

9

LEAF 2

865-23762-10-00

1
Out of stock

10

LEAF 3

899-23763-10-00

—

$33.34

In stock

11

LEAF 4

899-23764-10-00

1
Out of stock

12

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

13

. BOLT

90109-105E7-00

1
Out of stock

14

SADDLE 1

(841-23766-00-00)

1
Out of stock

15

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

16

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

17

COLLAR

90387-08478-00

1
Out of stock

18

—

$8.14

In stock

19

BOLT, PIN HOLE (8A7)

90102-08027-00

—

$7.35

In stock

20

NUT, NYLON

95717-08300-00

1

$2.57

In stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock

22

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

23

SHOCK ABSORBER ASSEMBLY

8F7-23350-00-00

1
Out of stock

24

COLLAR (864)

90387-08224-00

—

$7.52

In stock

25

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

26

NUT, NYLON

95717-08300-00

1

$2.57

In stock

27

COLLAR

90387-08223-00

1
Out of stock

28

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

29

BOLT, WITH HOLE

90102-10024-00

1
Out of stock

30

NUT, SLOTTED

95306-10900-00

1
Out of stock

31

PIN, COTTER

91490-25020-00

—

$2.94

In stock
