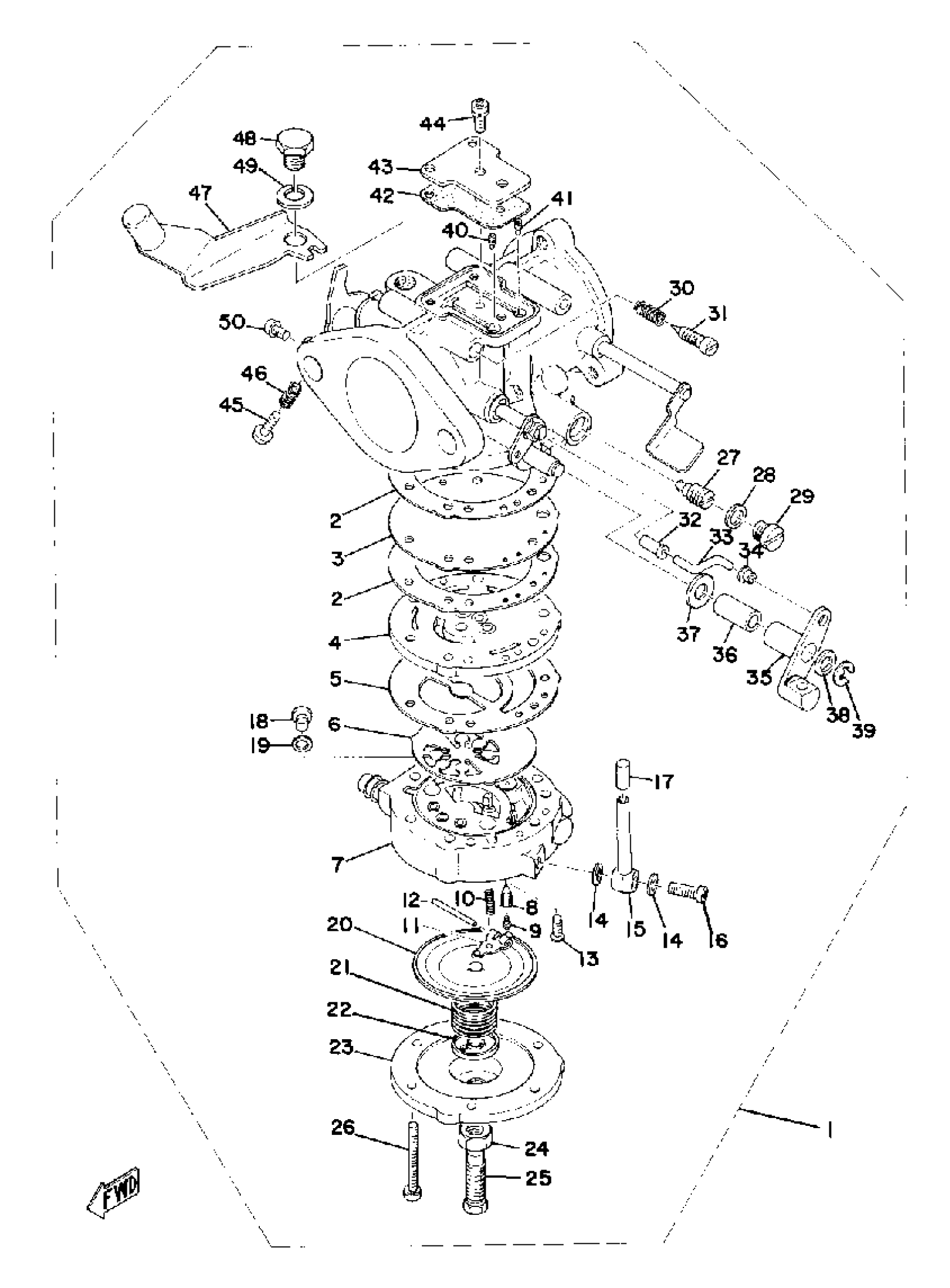

Find the part on the Carburetor diagram for your 1977 Yamaha GS340A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha GS340A Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(8E3-14501-00-00)

1
Out of stock

2

GASKET

879-14536-09-00

1

$16.28

In stock

3

. DIAPHRAGM, PUMP

879-14541-01-00

1
Out of stock

4

BODY, PUMP 1

(865-14542-01-00)

1
Out of stock

5

GASKET

865-14553-09-00

1

$14.75

In stock

6

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

7

BODY, PUMP 2

(865-14543-00-00)

1
Out of stock

8

VALVE

838-14546-00-00

1

$39.18

In stock

9

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

10

. SPRING

810-14556-00-00

1
Out of stock

11

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

12

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

13

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

14

. WASHER

806-14559-00-00

1
Out of stock

15

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

16

. SCREW

8A1-14592-00-00

1
Out of stock

17

. CAP, BLIND

810-24462-01-00

1
Out of stock

18

SCREW

(806-14567-01-00)

1
Out of stock

19

. WASHER

810-14597-00-00

1
Out of stock

20

DIAPHRAGM

810-14545-00-00

—
Out of stock

21

SPRING

(857-14555-00-00)

1
Out of stock

22

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

23

BODY, PUMP 3

(810-14544-01-00)

1
Out of stock

24

. NUT

95380-08700-00

1

$3.07

In stock

25

. SCREW, STOP

884-14565-01-00

1
Out of stock

26

SCREW

(824-14567-00-00)

1
Out of stock

27

. JET, MAIN #130 (130)

845-14516-30-00

1
Out of stock

27

. JET, MAIN #135

845-14516-35-00

1
Out of stock

27

. JET, MAIN #140

845-14516-40-00

1
Out of stock

27

JET, MAIN #145

(845-14516-45-00)

1
Out of stock

28

. WASHER

838-14597-00-00

1
Out of stock

29

SCREW

(845-14567-00-00)

1
Out of stock

30

SPRING, COMPRESSION

(90501-10237-00)

1
Out of stock

31

SCREW, ADJUST

(865-14522-00-00)

1
Out of stock

32

COLLAR

(865-14535-00-00)

1
Out of stock

33

ROD

(865-14577-00-00)

1
Out of stock

34

. COLLAR

865-14534-00-00

1
Out of stock

35

LEVER

(8E3-14573-00-00)

1
Out of stock

36

COLLAR

(806-14534-00-00)

1
Out of stock

37

. WASHER, PLATE

90202-07055-00

1
Out of stock

38

WASHER, PLATE(3TJ)

90202-06056-00

—
Out of stock

39

CIRCLIP(22K)

99080-05600-00

—

$6.17

In stock

40

JET #60

(865-14515-60-00)

1
Out of stock

41

JET #70

(865-14515-70-00)

1
Out of stock

42

GASKET

(865-14537-00-00)

1
Out of stock

43

PLATE

(8A1-14527-00-00)

1
Out of stock

44

. SCREW, WITH WASHER

90159-05005-00

1
Out of stock

45

. SCREW, PAN HEAD

90157-04010-00

1
Out of stock

46

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

47

. BRACKET, THROTTLE

865-14571-01-00

1
Out of stock

48

BOLT(62E)

97013-08012-00

—

$2.48

In stock

49

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

50

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock
