1977 Yamaha GS340A Shroud Diagram

← All diagrams

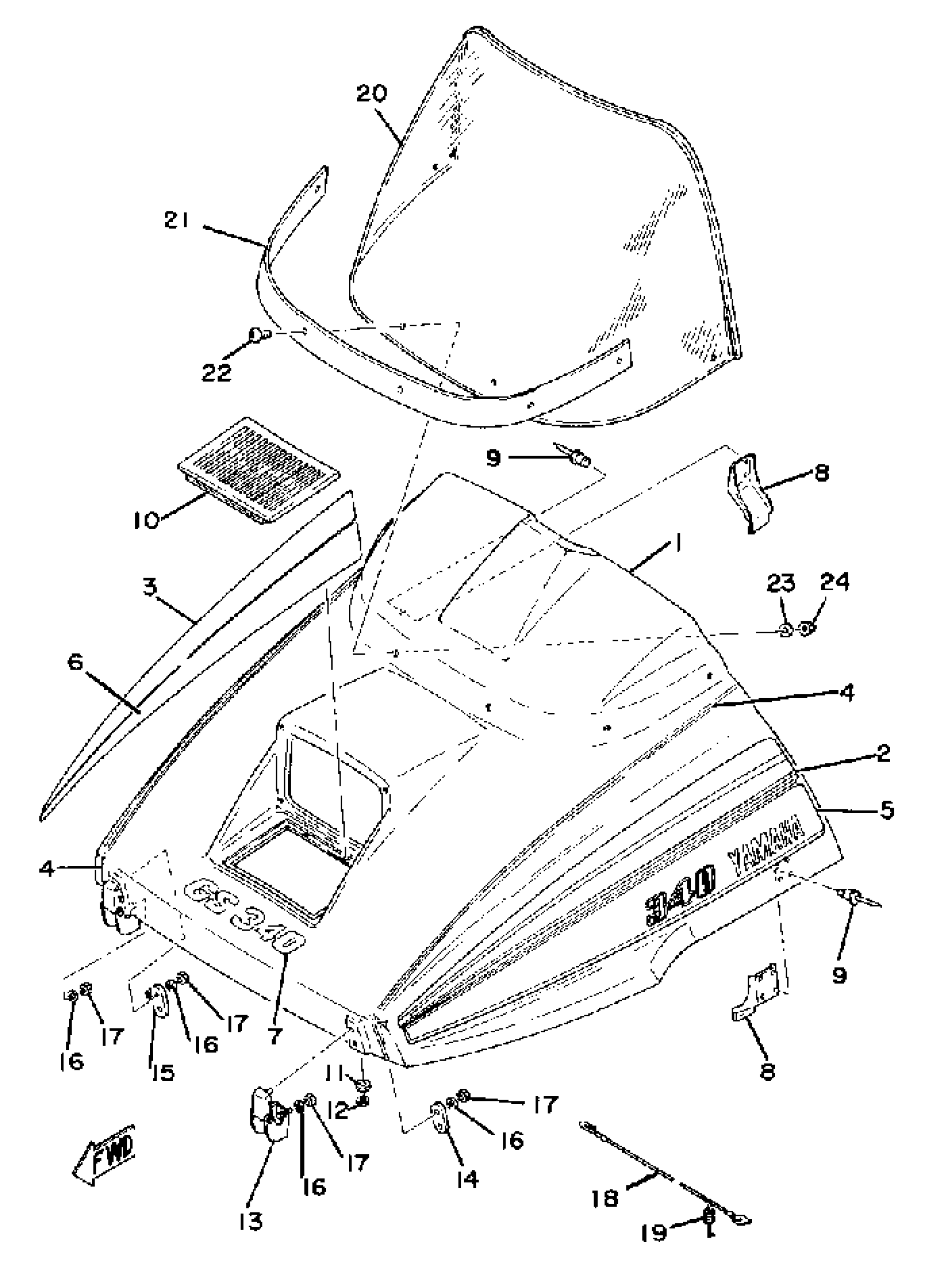

Find the part on the Shroud diagram for your 1977 Yamaha GS340A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha GS340A Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

(8E3-77110-00-00)

1
Out of stock

2

ORNAMENT 1

(8E3-77163-00-00)

1
Out of stock

3

ORNAMENT 2

(8E3-77164-00-00)

1
Out of stock

5

ORNAMENT 4

(8E3-77113-00-00)

1
Out of stock

6

ORNAMENT 5

8E3-77114-00-00

1
Out of stock

7

EMBLEM 6

(8A0-77356-00-00)

1
Out of stock

8

CLAMP 2

(8E3-77136-00-00)

1
Out of stock

9

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

10

LOUVER 1

853-77131-00-00

1
Out of stock

11

EMBLEM 3

838-77143-00-00

1
Out of stock

12

NUT 6504269100

90183-05003-00

1
Out of stock

13

HINGE ASSEMBLY

8E3-77140-00-00

1
Out of stock

14

PLATE, BACK UP 1

(841-77153-00-00)

1
Out of stock

15

PLATE, BACK UP 2

(841-77154-00-00)

1
Out of stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

STOPPER, SHROUD

8E4-77118-00-00

1
Out of stock

19

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

20

WINDSHIELD

(898-77210-00-00)

1
Out of stock

21

TRIM, LOWER

(8E3-77214-00-00)

1
Out of stock

22

SCREW, BINDING(3XV)

90154-05059-00

—

$5.21

In stock

23

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

24

NUT, NYLON

95707-05300-00

—

$2.74

In stock
