1977 Yamaha GS340A Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1977 Yamaha GS340A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

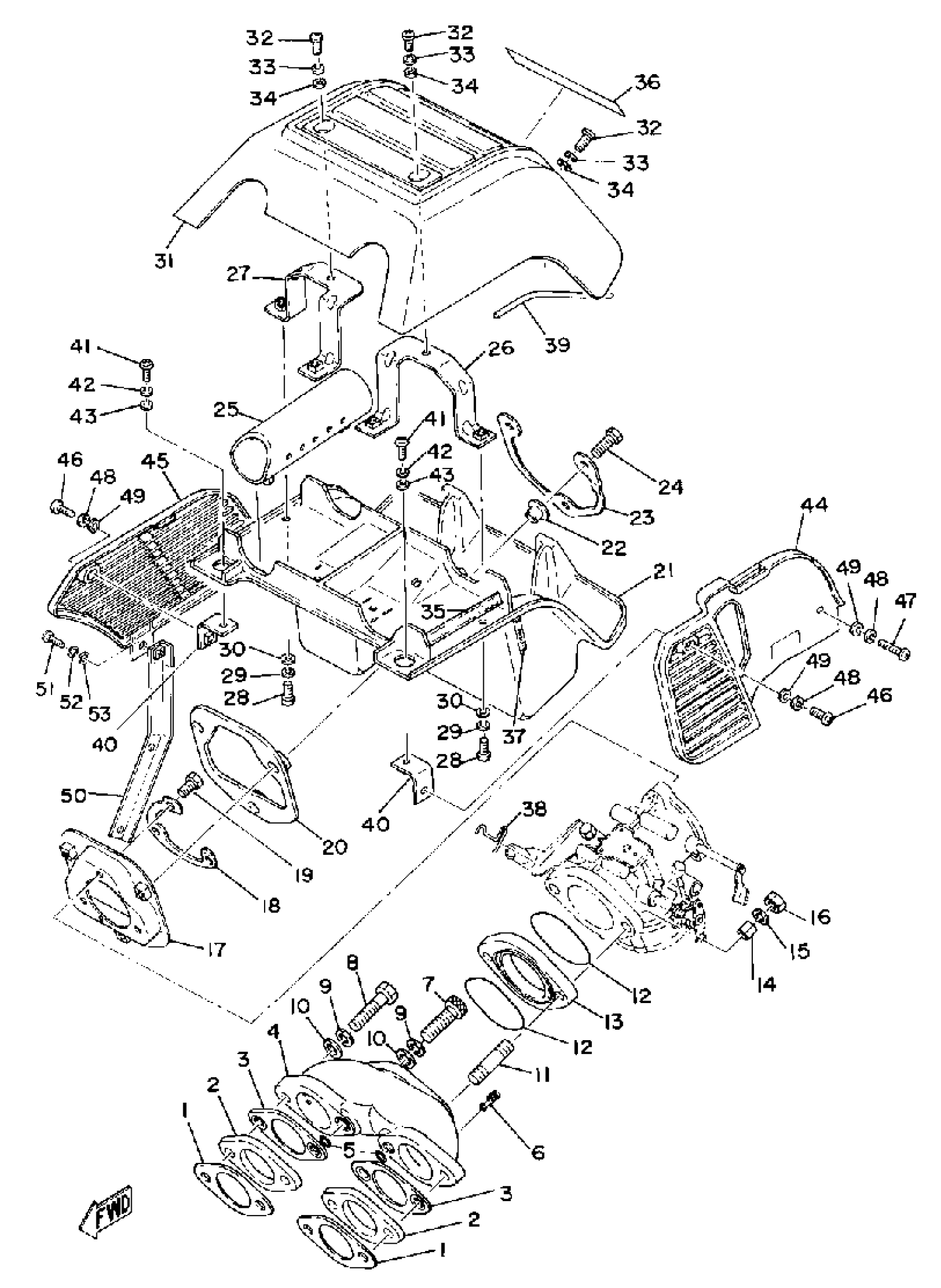

1977 Yamaha GS340A Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, MANIFOLD

810-13556-09-00

1
Out of stock

2

MANIFOLD, INTAKE

807-13555-01-00

1
Out of stock

3

GASKET

810-13563-09-00

1
Out of stock

4

JOINT, CARBURETOR

(824-13565-00-00)

1
Out of stock

5

O-RING (11M)

93210-07540-00

1

$5.77

In stock

6

NOZZLE

824-13552-00-00

1
Out of stock

7

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

8

BOLT

97013-08035-00

1

$4.80

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

BOLT, STUD

(90116-08051-00)

1
Out of stock

12

O-RING

93210-53291-00

1
Out of stock

13

JOINT, CARBURETOR

8A0-13565-00-00

1
Out of stock

14

SPACER

(810-13576-00-00)

1
Out of stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

. NUT

95380-08700-00

1

$3.07

In stock

17

PLATE

(865-14477-01-00)

1
Out of stock

18

WASHER

865-14475-01-00

1
Out of stock

19

BOLT (661)

97013-06012-00

—

$4.71

In stock

20

DAMPER

(865-14492-01-00)

1
Out of stock

21

SILENCER, INTAKE 1

(865-14431-01-00)

1
Out of stock

22

COLLAR (838-84757-00)

90387-06024-00

—
Out of stock

23

WASHER

(866-14475-01-00)

1
Out of stock

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

25

PIPE

(865-14419-00-00)

1
Out of stock

26

STAY 1

(865-14498-01-00)

1
Out of stock

27

STAY 1

(866-14498-01-00)

1
Out of stock

28

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

29

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

30

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

31

SILENCER, INTAKE 2

(865-14441-00-00)

1
Out of stock

32

SCREW, BINDING

98907-05010-00

—
Out of stock

33

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

34

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

35

DAMPER 1

(8E3-14425-00-00)

1
Out of stock

36

EMBLEM 1

(8A0-77351-00-00)

1
Out of stock

37

INDICATOR, CHOKE

(847-77455-00-00)

1
Out of stock

38

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock

39

SEAL

(8A0-14462-00-00)

1
Out of stock

40

STAY 2

(8E3-14499-00-00)

1
Out of stock

41

SCREW, PAN

98517-05012-00

—

$3.91

In stock

42

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

43

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

44

LOUVER 1

8E3-77441-00-00

1
Out of stock

45

LOUVER 2

8E3-77442-00-00

1
Out of stock

46

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

47

SCREW, PAN HEAD(4MY)

98507-05025-00

—

$6.18

In stock

48

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

49

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

50

CARBURETOR ASSEMBLY 1

(8E3-14501-00-00)

1
Out of stock

51

SCREW, PAN

98517-05012-00

—

$3.91

In stock

52

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

53

WASHER, PLATE

90201-06045-00

—

$6.18

In stock
