1985 Suzuki GS300L Wiring Harness Diagram

← All diagrams

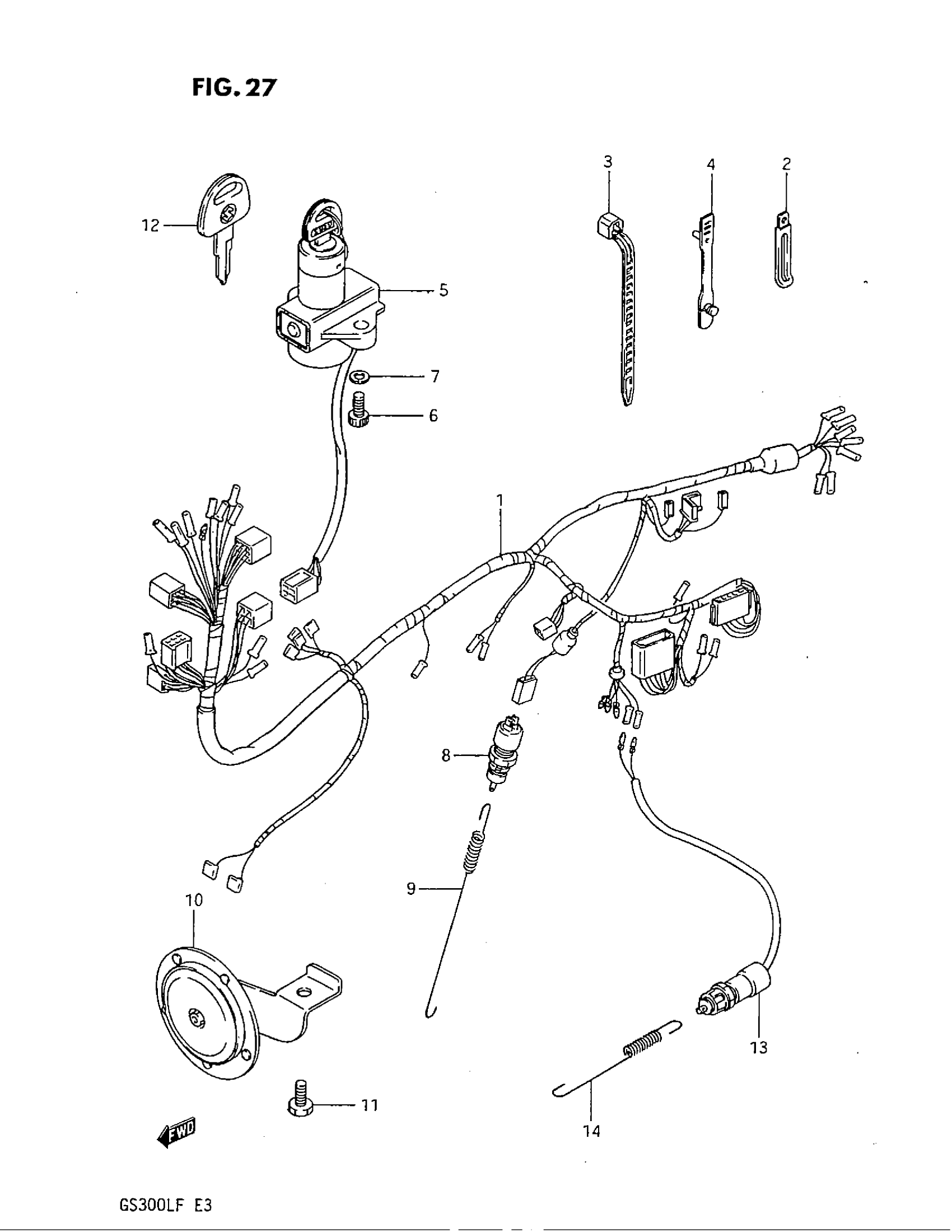

Find the part on the Wiring Harness diagram for your 1985 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GS300L Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS

36610-11920

1
Out of stock

2

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

1
Out of stock

3

CLAMP (L:125)

09407-14403

3
Out of stock

4

CLIP

09407-05403

2
Out of stock

5

SWITCH ASSY, IGNITION | Includes Item(s) 6 - 7

37110-45301

1
Out of stock

6

BOLT This part replaces 37152-47011.

07130-0616B

2
Out of stock

7

2

$2.28

In stock

8

SWITCH ASSY, STOP LAMP This part replaces 37740-07900.

37740-24A00

1
Out of stock

9

SPRING This part replaces 09443-06035.

09443-06035-XC0

1
Out of stock

10

HORN

38500-11590

1
Out of stock

11

BOLT This part replaces 01107-08126.

01500-0812A

1
Out of stock

12

KEY, BLANK | OPT

37146-47010

1
Out of stock

13

SWITCH, PROP STAND WARNING

37840-34500

1
Out of stock

14

SPRING This part replaces 09443-06030.

09443-06048-XC0

1
Out of stock
