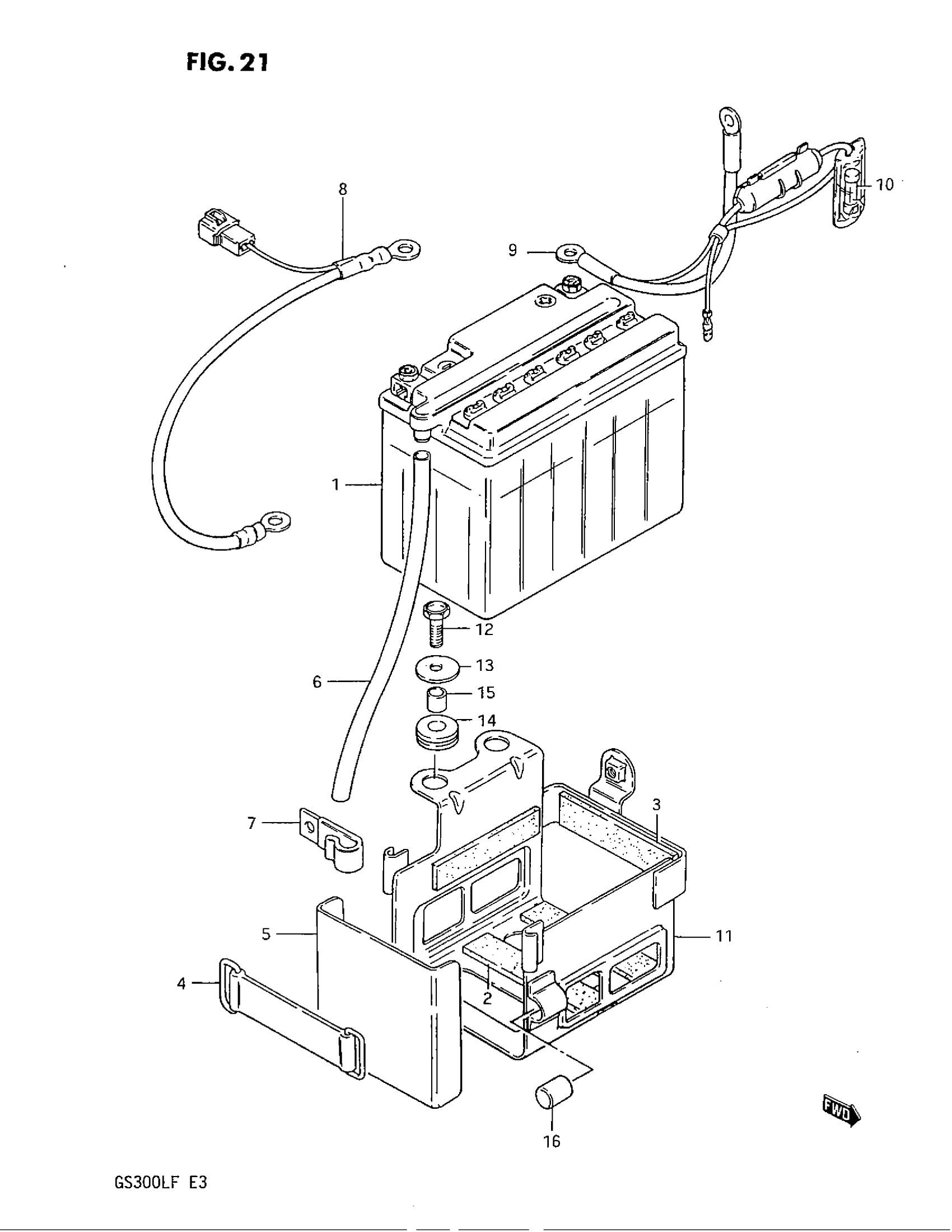

Suzuki GS300L (1985) BATTERY Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 33610-11600.

33610-11010

Unavailable

2

CUSHION | CUT AS REQUIRED PROFILE

33651-37000

$4.09

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.09

4

BAND

09462-00008

$4.36

5

COVER, BATTERY

33661-44101

Unavailable

6

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$7.65

7

CLAMP This part replaces 09403-09303.

09403-09003

$2.38

8

WIRE, BATT (-) This part replaces 33860-44500.

33860-44501

Unavailable

9

FUSE CASE ASSY | Includes Item(s) 10

36740-44501

Unavailable

10

FUSE (15A)

09481-15001

$2.07

11

HOLDER, BATTERY

41540-11500

Unavailable

12

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.77

13

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.15

14

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

15

SPACER

09180-06038

$1.86

16

CUSHION, FRONT

09329-05006

$2.58
