1977 Yamaha GS300A Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 1977 Yamaha GS300A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

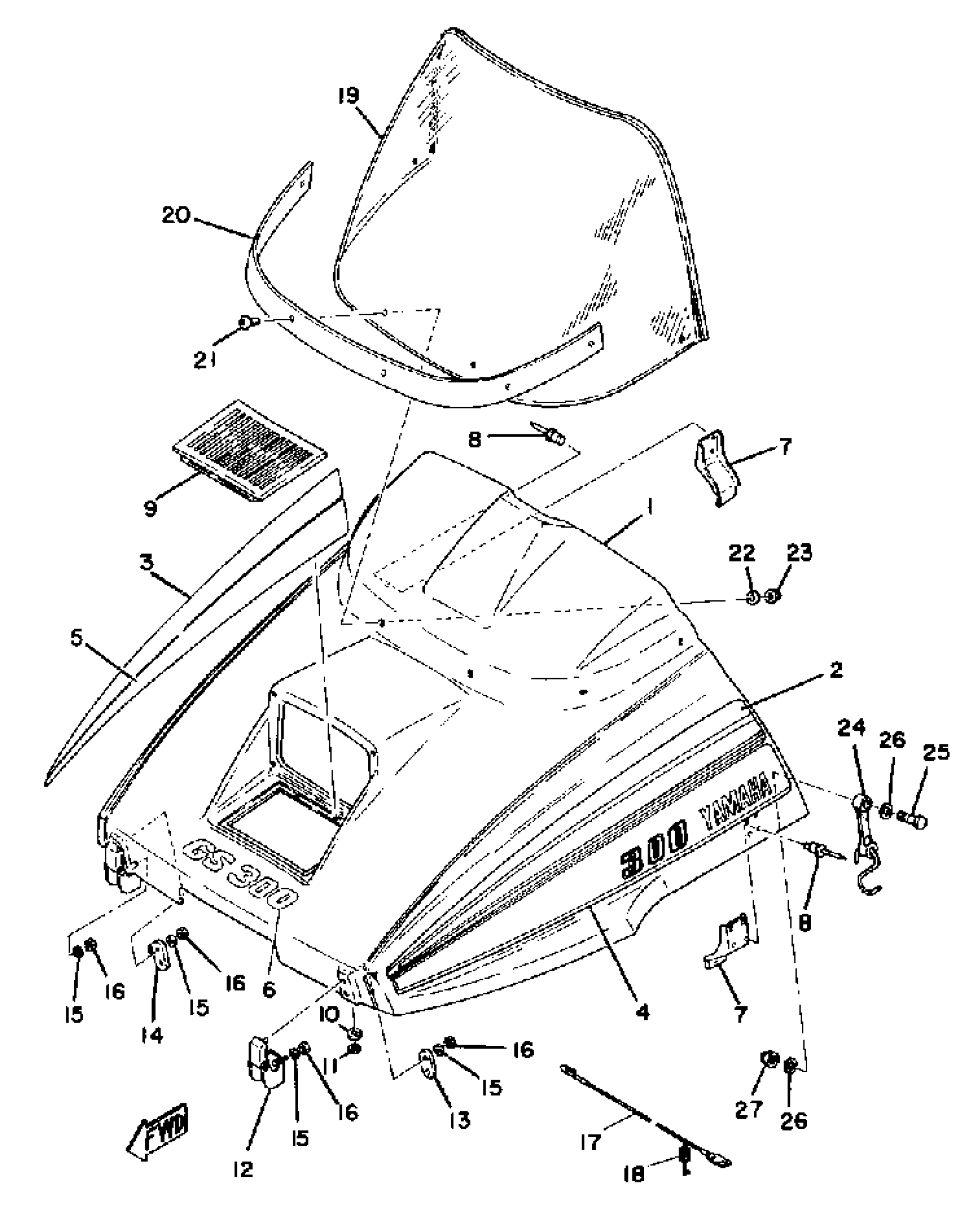

1977 Yamaha GS300A Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

(8E6-77110-00-00)

1
Out of stock

2

ORNAMENT 1

(8E3-77163-00-00)

1
Out of stock

3

ORNAMENT 2

(8E3-77164-00-00)

1
Out of stock

4

ORNAMENT 4

8E6-77113-00-00

1
Out of stock

5

ORNAMENT 5

8E6-77114-00-00

1
Out of stock

6

EMBLEM 6

(898-77356-00-00)

1
Out of stock

7

CLAMP 2

(8E3-77136-00-00)

1
Out of stock

8

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

9

LOUVER 1

853-77131-00-00

1
Out of stock

10

EMBLEM 3

838-77143-00-00

1
Out of stock

11

NUT 6504269100

90183-05003-00

1
Out of stock

12

HINGE ASSEMBLY

8E3-77140-00-00

1
Out of stock

13

PLATE, BACK UP 1

(841-77153-00-00)

1
Out of stock

14

PLATE, BACK UP 2

(841-77154-00-00)

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

STOPPER, SHROUD

8E4-77118-00-00

1
Out of stock

18

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

19

WINDSHIELD

(898-77210-00-00)

1
Out of stock

20

TRIM, LOWER

(8E3-77214-00-00)

1
Out of stock

21

SCREW, BINDING(3XV)

90154-05059-00

—

$5.21

In stock

22

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

23

NUT, NYLON

95707-05300-00

—

$2.74

In stock

24

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

25

SCREW, BIND(J39)

98980-06030-00

—

$5.62

In stock

26

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

27

NUT, NYLON

95707-06300-00

—

$3.20

In stock
