1977 Yamaha GS300A Crankcase - Cylinder Diagram

← All diagrams

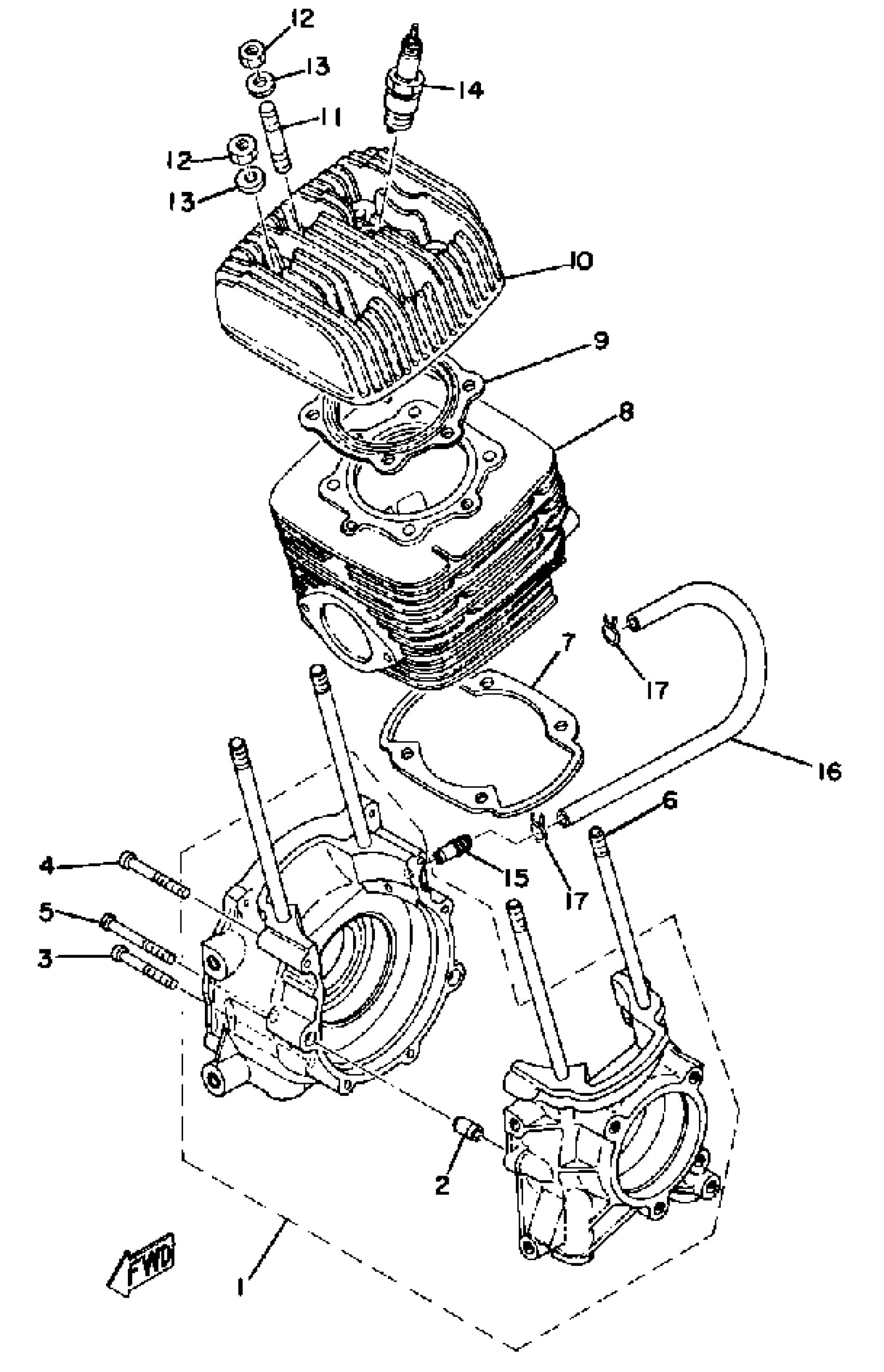

Find the part on the Crankcase - Cylinder diagram for your 1977 Yamaha GS300A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha GS300A Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

839-15100-00-00

1
Out of stock

2

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

3

SCREW PAN HEAD

98580-06545-00

1
Out of stock

4

SCREW PAN HEAD

98580-06550-00

1
Out of stock

5

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

6

BOLT, STUD

(90116-08083-00)

1
Out of stock

7

GASKET, CYLINDER

812-11351-09-00

1
Out of stock

8

CYLINDER 1

822-11311-00-00

1
Out of stock

9

GASKET, CYLINDER HEAD 1

812-11181-00-00

1
Out of stock

10

HEAD, CYLINDER 1

(853-11111-00-00)

1
Out of stock

11

BOLT, STUD

90116-08057-00

1
Out of stock

12

NUT(6L2)

95333-08600-00

1
Out of stock

13

WASHER, PLATE (397)

90201-08100-00

1
Out of stock

14

BR6ES NGK SPLUG 4PK

BR6-ES000-40-00

1
Out of stock

15

JOINT, BREATHER

J38-11116-00-00

1
Out of stock

16

HOSE

(90445-10138-00)

1
Out of stock

17

CLIP

90467-090A2-00

—
Out of stock
