1977 Yamaha GS300A Carburetor Diagram

← All diagrams

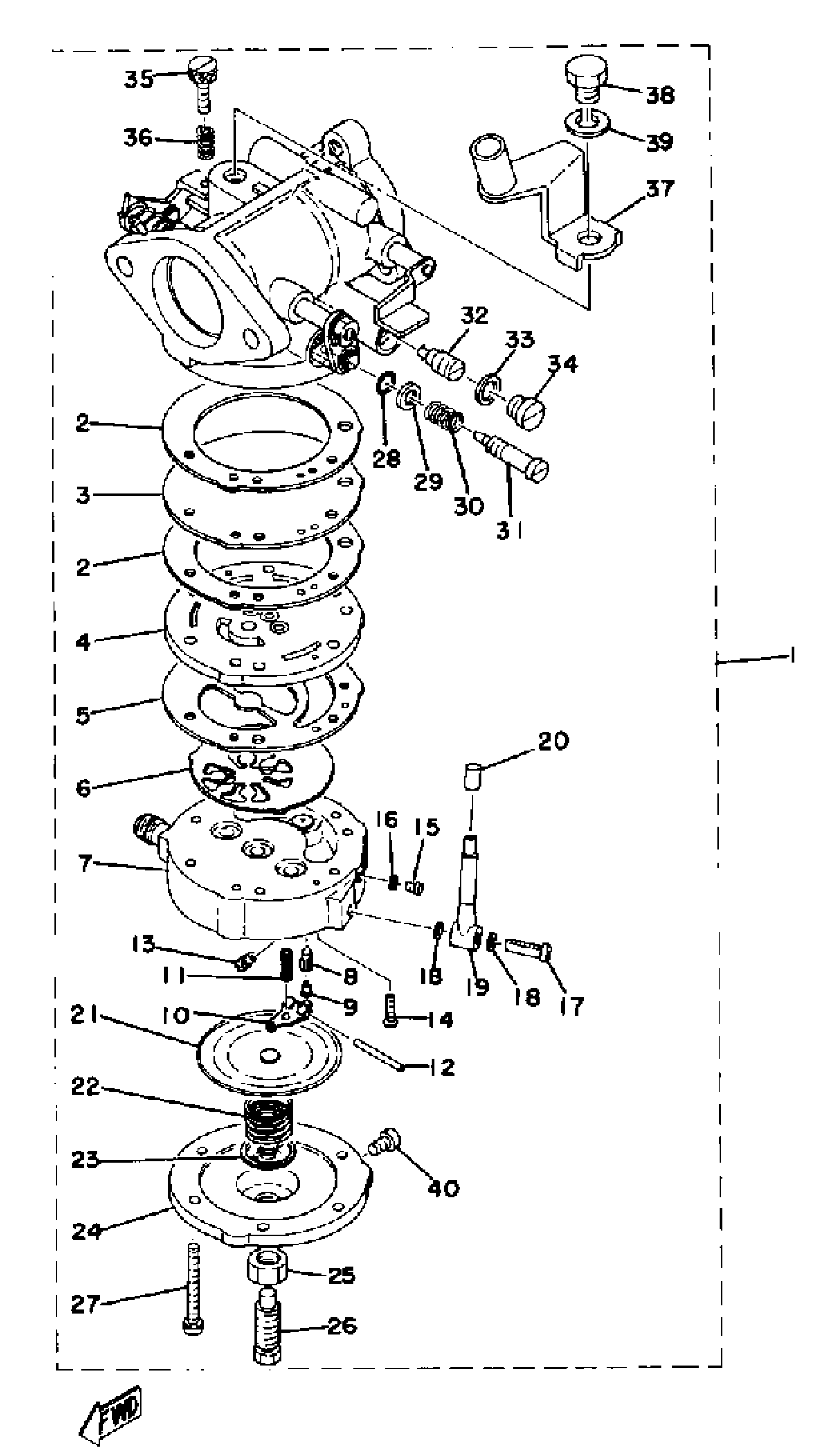

Find the part on the Carburetor diagram for your 1977 Yamaha GS300A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha GS300A Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(884-14501-00-00)

1
Out of stock

2

GASKET

879-14536-09-00

1

$16.28

In stock

3

. DIAPHRAGM, PUMP

879-14541-01-00

1
Out of stock

4

BODY, PUMP 1

(838-14542-00-00)

1
Out of stock

5

GASKET

865-14553-09-00

1

$14.75

In stock

6

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

7

BODY, PUMP 2

(853-14543-01-00)

1
Out of stock

8

VALVE

838-14546-00-00

1

$39.18

In stock

9

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

10

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

11

. SPRING

810-14556-00-00

1
Out of stock

12

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

13

JET #65

(853-14515-65-00)

1
Out of stock

14

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

15

SCREW

(806-14567-01-00)

1
Out of stock

16

. WASHER

810-14597-00-00

1
Out of stock

17

. SCREW

8A1-14592-00-00

1
Out of stock

18

. WASHER

806-14559-00-00

1
Out of stock

19

PIPE, AIRVENT

(853-14197-00-00)

1
Out of stock

20

. CAP, BLIND

853-24462-00-00

1
Out of stock

21

DIAPHRAGM

810-14545-00-00

—
Out of stock

22

. SPRING, COMPRESSION

90501-06213-00

1
Out of stock

23

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

24

BODY, PUMP 3

(810-14544-01-00)

1
Out of stock

25

. NUT

95380-08700-00

1

$3.07

In stock

26

. SCREW, STOP

824-14565-00-00

1
Out of stock

27

SCREW

(824-14567-00-00)

1
Out of stock

28

. O-RING

824-14563-00-00

1
Out of stock

29

. WASHER

838-14596-00-00

1
Out of stock

30

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

31

SCREW, ADJUST

(853-14522-00-00)

1
Out of stock

32

JET, MAIN #115

(845-14516-15-00)

1
Out of stock

32

. JET, MAIN #120

845-14516-20-00

1
Out of stock

32

. JET, MAIN #125 (125)

845-14516-25-00

1
Out of stock

32

. JET, MAIN #130 (130)

845-14516-30-00

1
Out of stock

33

. UNAVAILABLE IN PRICE BOOK

873-14568-00-00

1
Out of stock

34

. UNAVAILABLE IN PRICE BOOK

873-14567-00-00

1
Out of stock

35

. SCREW, PAN HEAD

90157-04010-00

1
Out of stock

36

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

37

BRACKET, THROTTLE

(867-14571-00-00)

1
Out of stock

38

BOLT (661)

97013-06012-00

—

$4.71

In stock

39

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

40

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
