1977 Yamaha GS300A Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1977 Yamaha GS300A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

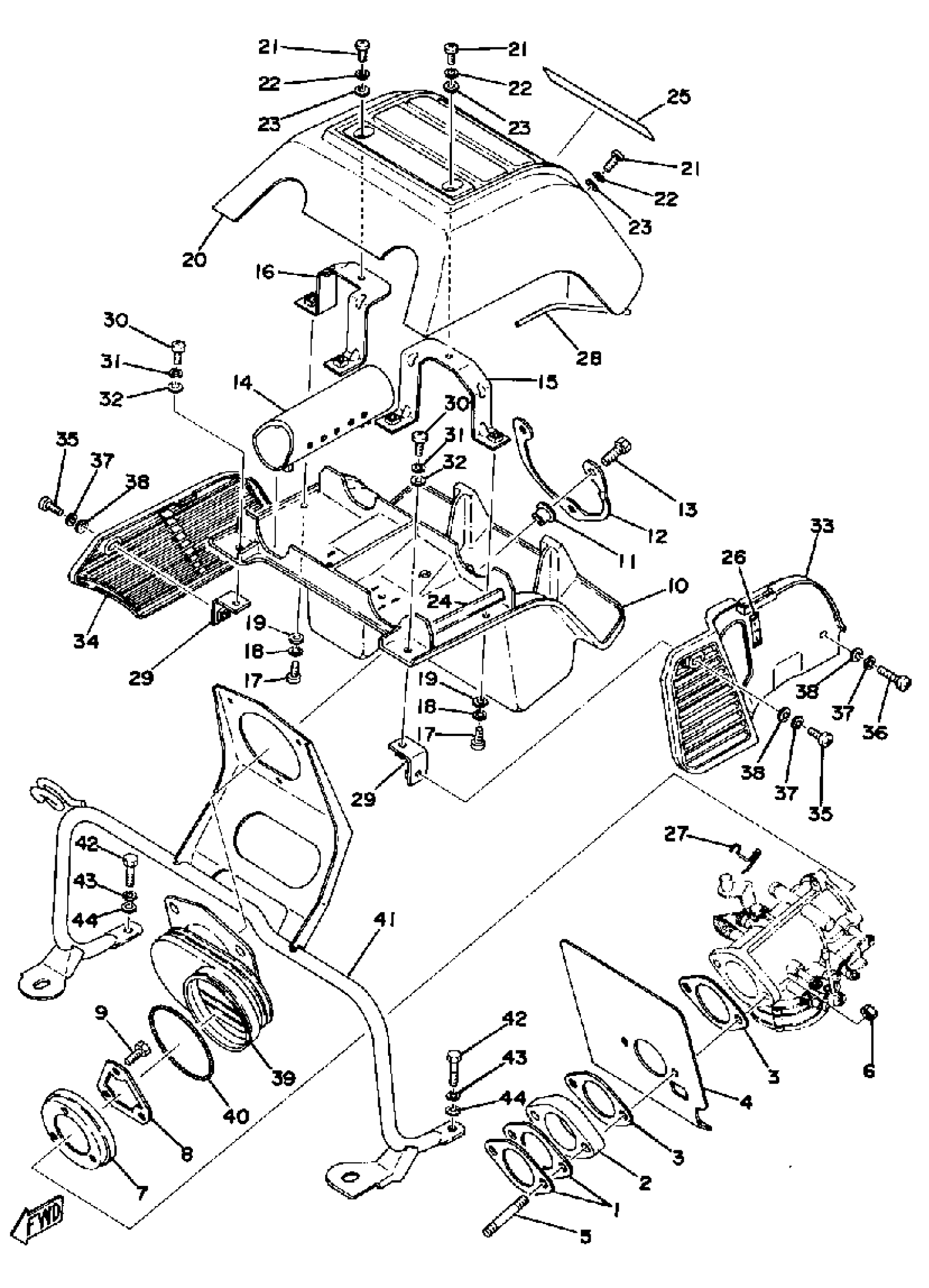

1977 Yamaha GS300A Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, MANIFOLD

839-13556-09-00

1
Out of stock

2

MANIFOLD, INTAKE

853-13555-00-00

1
Out of stock

3

GASKET, MANIFOLD

810-13556-09-00

1
Out of stock

4

GASKET

(8E6-13567-00-00)

1
Out of stock

5

BOLT, STUD

90116-08057-00

1
Out of stock

6

. NUT

95380-08700-00

1

$3.07

In stock

7

PLATE

(8E6-14477-00-00)

1
Out of stock

8

WASHER

(8E6-14475-00-00)

1
Out of stock

9

BOLT (661)

97013-06012-00

1

$4.71

In stock

10

SILENCER, INTAKE 1

(865-14431-01-00)

1
Out of stock

11

UNAVAILABLE IN PRICE BOOK

90387-06600-00

1
Out of stock

12

WASHER

(866-14475-01-00)

1
Out of stock

13

BOLT (661)

97013-06012-00

1

$4.71

In stock

14

PIPE

(865-14419-00-00)

1
Out of stock

15

STAY 1

(865-14498-01-00)

1
Out of stock

16

STAY 1

(866-14498-01-00)

1
Out of stock

17

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

20

SILENCER, INTAKE 2

(865-14441-00-00)

1
Out of stock

21

SCREW, BINDING

98907-05010-00

—
Out of stock

22

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

23

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

24

DAMPER 1

(8E3-14425-00-00)

1
Out of stock

25

EMBLEM 1

(8E6-77351-00-00)

1
Out of stock

26

INDICATOR, CHOKE

(8E6-77455-00-00)

1
Out of stock

27

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock

28

SEAL

(8A0-14462-00-00)

1
Out of stock

29

STAY 2

(8E3-14499-00-00)

1
Out of stock

30

SCREW, PAN

98517-05012-00

—

$3.91

In stock

31

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

32

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

33

LOUVER 1

8E3-77441-00-00

1
Out of stock

34

LOUVER 2

8E3-77442-00-00

1
Out of stock

35

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

36

SCREW, PAN HEAD(4MY)

98507-05025-00

—

$6.18

In stock

37

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

38

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

39

JOINT, AIR CLNR 1

8E6-14453-00-00

1
Out of stock

40

—

$6.89

In stock

41

STAY 1

(8E6-14493-00-00)

1
Out of stock

42

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

43

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

44

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
