1976 Yamaha GS300 Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1976 Yamaha GS300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

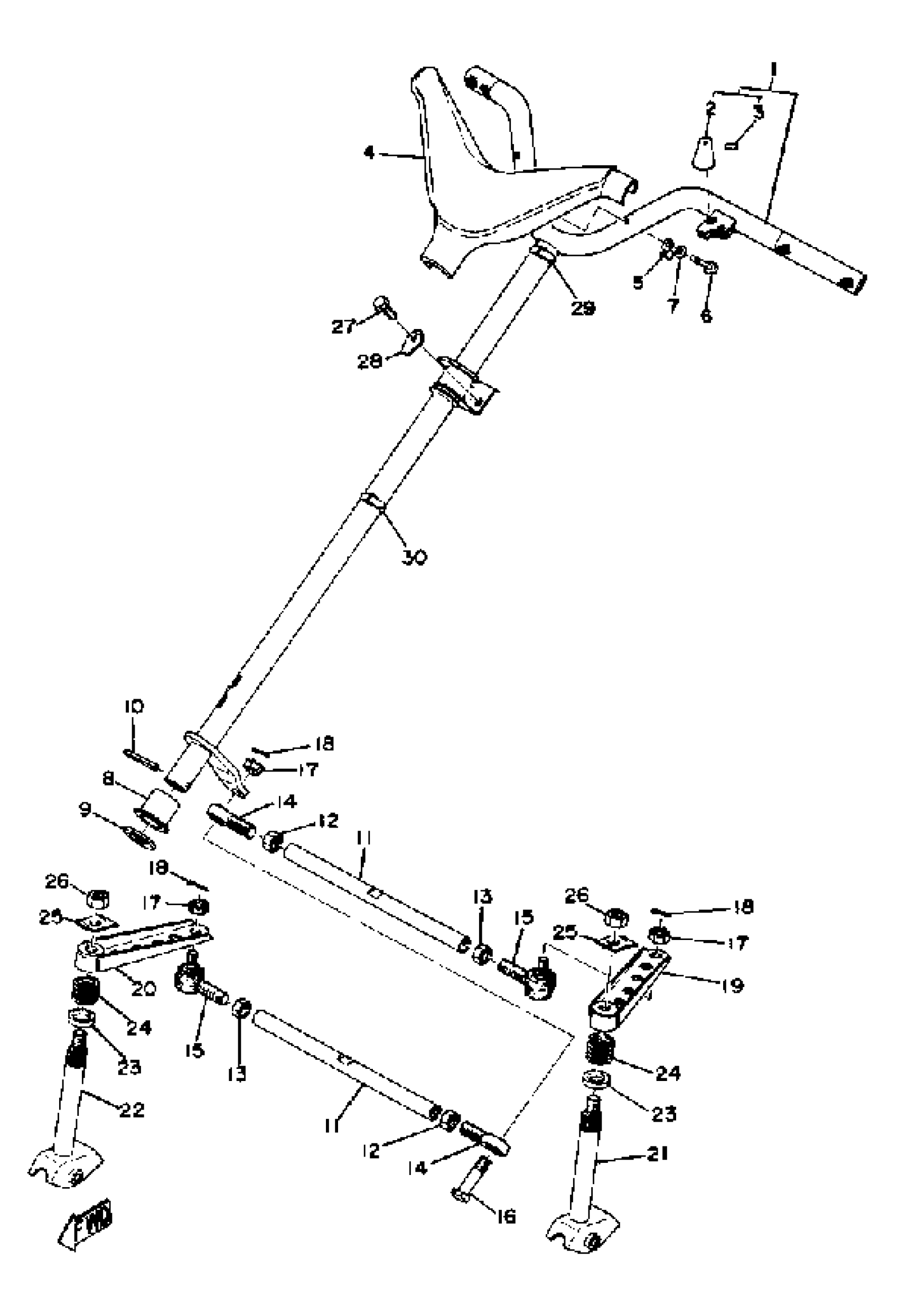

1976 Yamaha GS300 Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STRG COLUMN ASSEMBLY

867-23810-00-00

1
Out of stock

2

LEVER, LOCK

(803-83965-00-00)

1
Out of stock

3

PIN, SPEC''L SHAPE

(90249-04022-00)

1
Out of stock

4

PAD, STEERING

(863-23815-01-00)

1
Out of stock

5

CLAMP

(90462-08003-00)

1
Out of stock

6

SCREW, PAN

98507-05035-00

1

$6.69

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

BEARING, STRG LOWER

(853-23875-00-00)

1
Out of stock

9

BEARING, STEERING

(841-23812-01-00)

1
Out of stock

10

PIN, SPRING

91609-60045-00

1
Out of stock

11

ROD, STEERING RELAY

(826-23821-00-00)

1
Out of stock

12

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

13

NUT (821-23834-00)

90170-12054-00

1
Out of stock

14

JOINT, UNIVERSAL 1

861-23841-00-00

1
Out of stock

15

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

16

BOLT

(90109-10408-00)

1
Out of stock

17

NUT, CASTLE

95307-10900-00

—

$7.55

In stock

18

PIN, COTTER

91490-25020-00

—

$2.94

In stock

19

ARM, OUTSIDE 1

(841-23851-01-00)

1
Out of stock

20

ARM, OUTSIDE 2

841-23852-01-00

1
Out of stock

21

COLUMN, SKI 1

853-23853-01-00

1
Out of stock

22

COLUMN, SKI 2

853-23854-01-00

1
Out of stock

23

SPACER

90560-20037-00

1
Out of stock

24

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

25

WASHER, LOCK

90215-12037-00

1
Out of stock

26

NUT(3DM)

95304-12600-00

—

$6.68

In stock

27

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

28

WASHER, LOCK

(90215-06038-00)

1
Out of stock

29

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

30

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock
