1976 Yamaha GS300 SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1976 Yamaha GS300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

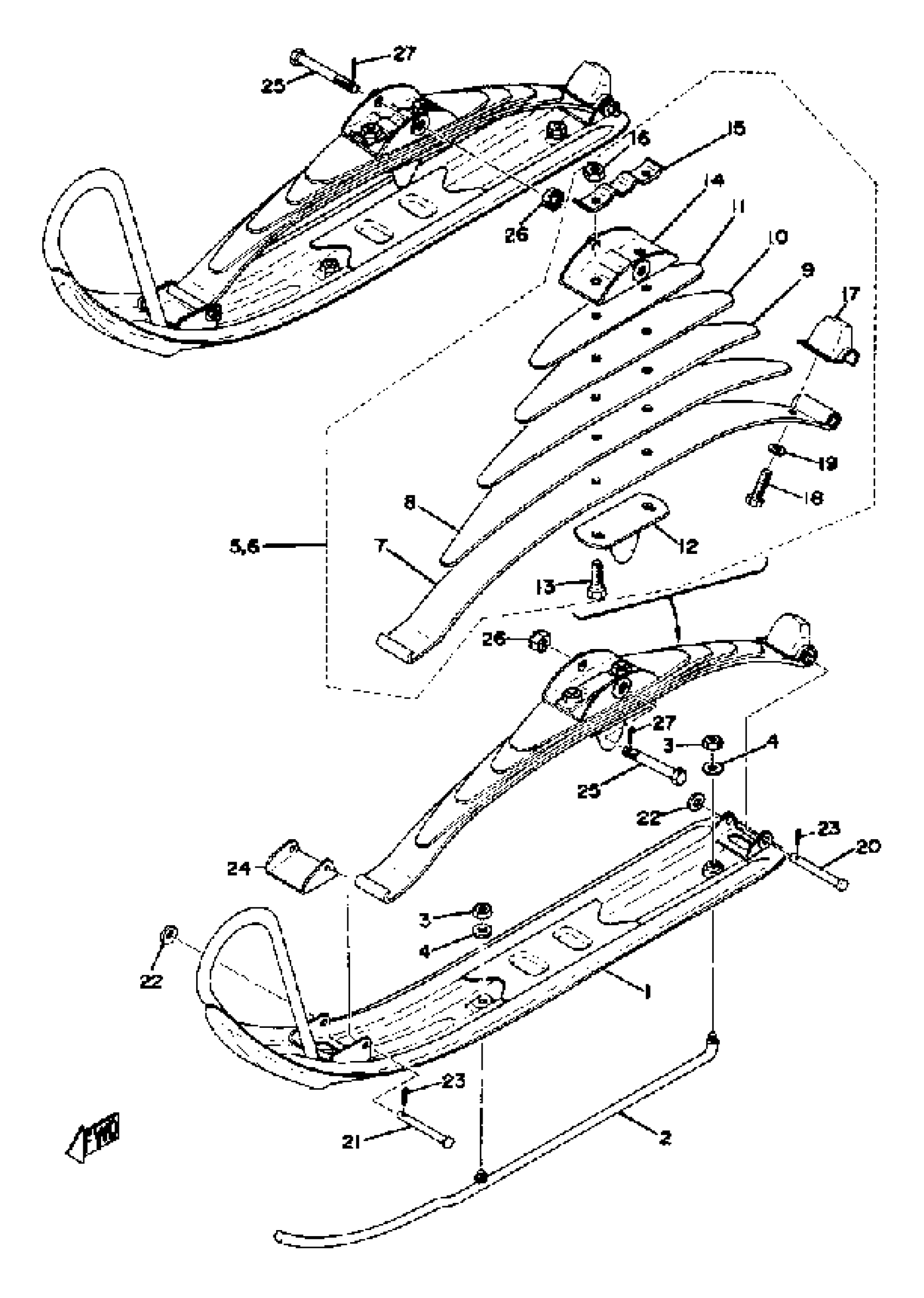

1976 Yamaha GS300 SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

898-23710-00-00

1
Out of stock

2

SKI RUNNER, (SV80)

853-23731-00-XX

1
Out of stock

3

NUT, U

95617-08100-00

1

$6.78

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

SPRING ASSEMBLY 1

881-23760-01-00

1
Out of stock

6

SPRING ASSEMBLY 2

(881-23770-01-00)

1
Out of stock

7

LEAF 1

(865-23761-00-00)

1
Out of stock

8

LEAF 2

865-23762-10-00

1
Out of stock

9

. LEAF 3

865-23763-00-00

1
Out of stock

10

LEAF 4

(865-23764-00-00)

1
Out of stock

11

. LEAF 5

865-23771-00-00

1
Out of stock

12

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

13

. BOLT

90101-10060-00

1
Out of stock

14

. SADDLE 1

806-23766-00-00

1
Out of stock

15

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

16

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

17

STOPPER 1

(841-23743-02-00)

1
Out of stock

18

BOLT (11T)

90101-06576-00

—

$6.46

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

PIN, CLEVIS

90240-08018-00

1
Out of stock

21

PIN, CLEVIS

90240-08019-00

1
Out of stock

22

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

23

PIN COTTER

91490-30025-00

—
Out of stock

24

PLATE, WEAR 1

853-23735-00-00

1
Out of stock

25

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

26

NUT, SLOTTED

95306-10900-00

1
Out of stock

27

PIN, COTTER

91490-25020-00

—

$2.94

In stock
