1976 Yamaha GS300 Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1976 Yamaha GS300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

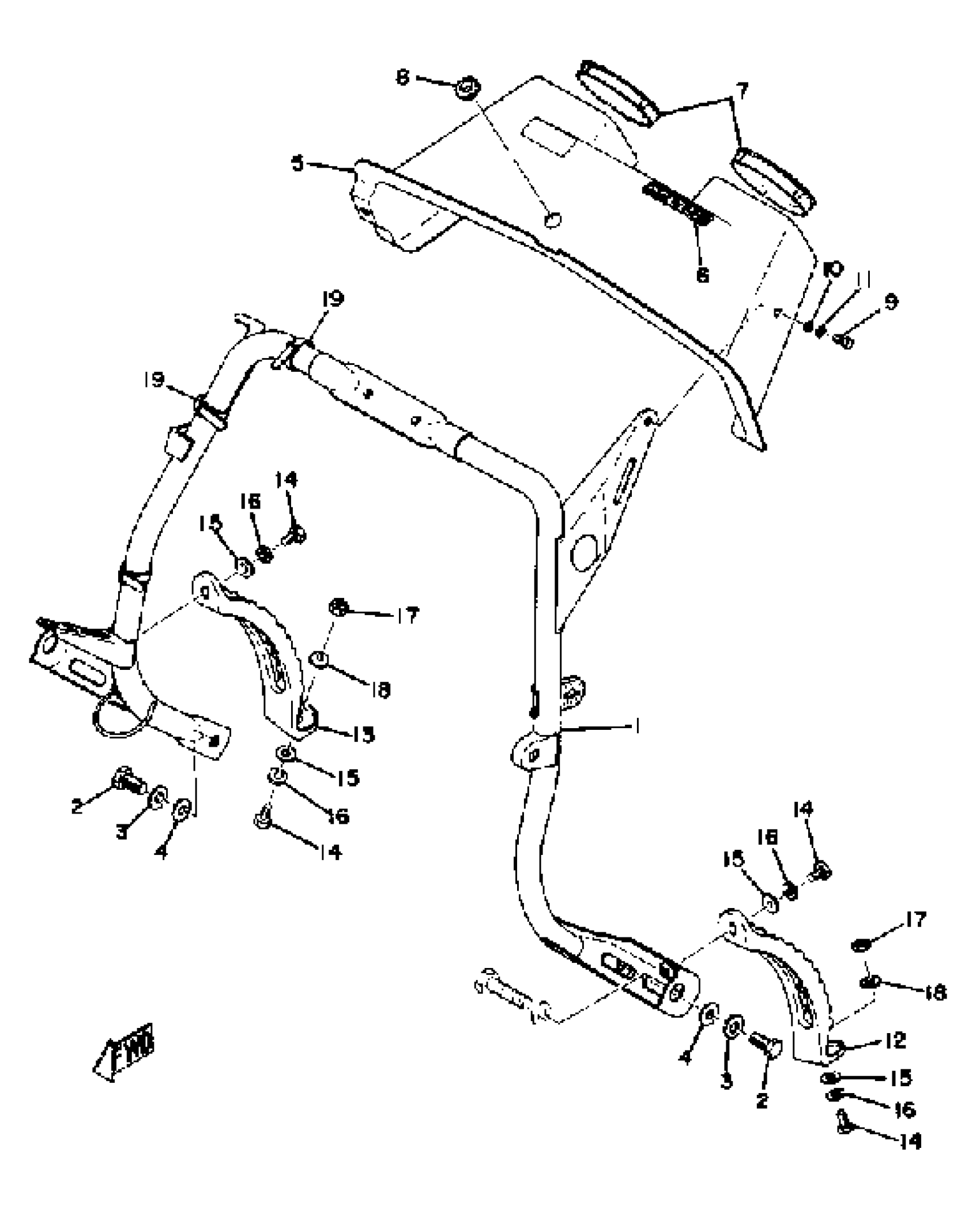

1976 Yamaha GS300 Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

(867-23870-01-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

4

WASHER, LOCK 2

(861-23895-00-00)

1
Out of stock

5

PANEL, INSTRUMENT

898-77711-00-00

1
Out of stock

6

INDICATOR 4

888-77744-00-00

1
Out of stock

7

ORMNT, INSTR PNL 1

(861-77715-00-00)

1
Out of stock

8

GROMMET (462)

90480-13018-00

1

$6.25

In stock

9

BOLT, HEXAGON

(97306-05012-00)

1
Out of stock

10

WASHER(1RW)

92907-05600-00

1
Out of stock

11

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

12

FOOTREST 1

(841-27411-00-00)

1
Out of stock

13

FOOTREST 2

(841-27421-00-00)

1
Out of stock

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

19

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
