1986 Suzuki GS1150EF Rear Wheel Diagram

← All diagrams

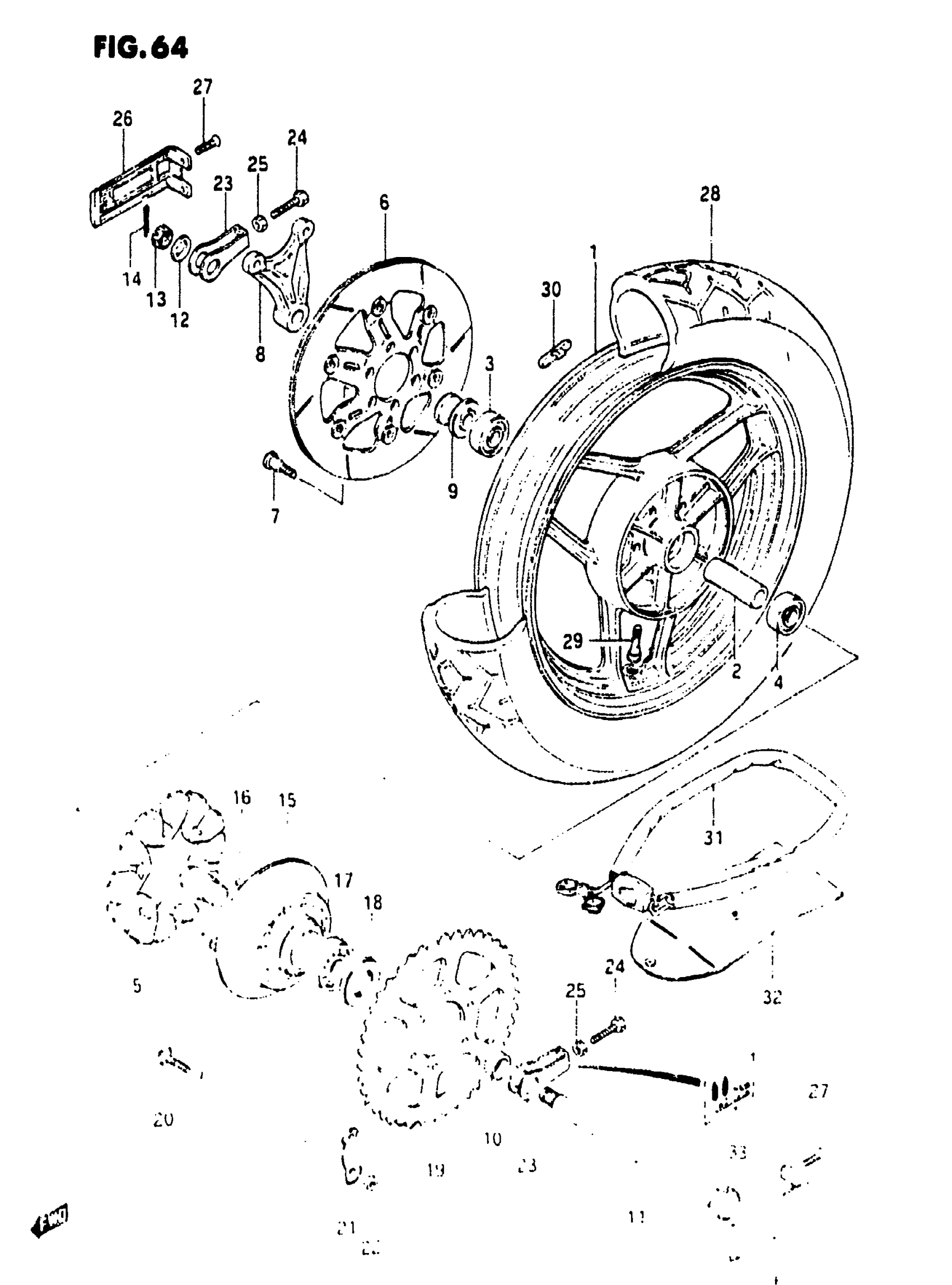

Find the part on the Rear Wheel diagram for your 1986 Suzuki GS1150EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GS1150EF Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (BLACK) MT3.00x17 | GS1150ES3/ESE

64111-00A00-291

1
Out of stock

1

WHEEL, REAR (BLACK) MT3.50x17 | MODEL F/F2/G

64111-00A20-291

1
Out of stock

2

SPACER, BEARING

09180-20093

1
Out of stock

3

BEARING, RH

08133-62047

1
Out of stock

4

BEARING, LH This part replaces 08153-62047.

09262-20042

1
Out of stock

5

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

6
Out of stock

6

DISC, REAR BRAKS

69210-00A01

1
Out of stock

7

BOLT (8X33) | GS1150ES3/ESE; MODEL F/F2 This part replaces 09106-08041.

09106-08148

6
Out of stock

7

BOLT (8X33) | MODEL G This part replaces 09106-08062.

09106-08148

6
Out of stock

8

BRACKET, CALIPER

69721-47011

1
Out of stock

9

SPACER, AXLE, RH

64740-45002

1
Out of stock

10

SPACER, AXLE, LH

09180-20094

1
Out of stock

11

AXLE, REAR

64711-00A00

1
Out of stock

12

WASHER

09160-19020

1
Out of stock

13

NUT This part replaces 08314-41188.

08314-40187

1
Out of stock

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

15

DRUM, SPROCKET This part replaces 64611-31002.

64611-31003

1
Out of stock

16

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

1
Out of stock

17

BEARING, DRUM This part replaces 08113-63050.

09262-25073

1
Out of stock

18

OIL SEAL

09285-33001

1
Out of stock

19

SPROCKET,REAR,N This part replaces 64511-49001.

64511-49002

1
Out of stock

20

BOLT

09105-10001

6
Out of stock

21

WASHER

09169-10007

3
Out of stock

22

NUT This part replaces 09140-10026.

09140-10026-XC0

6
Out of stock

23

CHAIN ADJUSTER

61410-00A00

2
Out of stock

24

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

25

2

$1.93

In stock

26

COVER, ADJUSTER

61441-00A00

2
Out of stock

27

SCREW This part replaces 02132-05167.

02122-05167

4
Out of stock

28

TIRE, T/L (130/90V17) BS | GS1150ES3/ESE

65100-00A35

1
Out of stock

28

TIRE, T/L (130/90V17) BS | MODEL F/F2/G

65100-00A10

1
Out of stock

29

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

1
Out of stock

30

BALANCER (10G) This part replaces 55411-00A00-291.

55411-00A00

1
Out of stock

30

BALANCER, WHEEL NO.2 This part replaces 55412-00A00-291.

55412-17G00

1
Out of stock

30

BALANCER (30G) This part replaces 55413-00A00-291.

55413-00A01

1
Out of stock

31

NO DESCRIPTION AVAILABLE This part replaces 94140-15501-KEY.

94100-27821

1
Out of stock

32

BAG

94141-31301

1
Out of stock

33

LABLE

68377-49000

1
Out of stock
