1986 Suzuki GS1150EF Rear Shock Absorber Diagram

← All diagrams

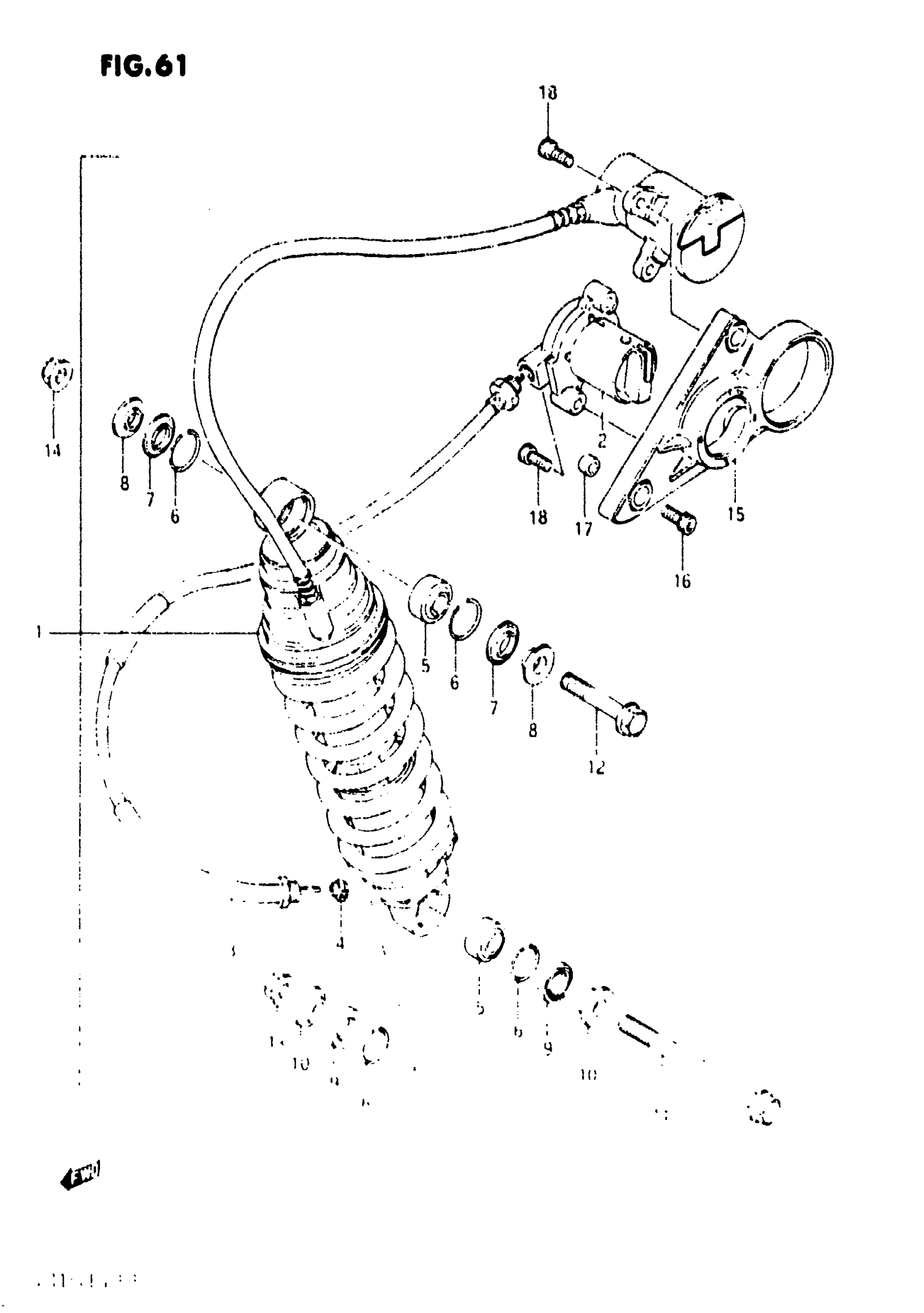

Find the part on the Rear Shock Absorber diagram for your 1986 Suzuki GS1150EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GS1150EF Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOCK ABSORBER ASSY, REAR | GS1150ES3/ESE This part replaces 62100-00A10.

62100-00A11

1
Out of stock

1

SHOCK ABSORBER ASSY, REAR | MODEL F/F2/G; Includes Item(s) 2 - 10

62100-00A11

1
Out of stock

2

ADJUSTER

62350-00A00

1
Out of stock

3

CABLE

62358-00A00

1
Out of stock

4

GEAR

62355-33300

1
Out of stock

5

BEARING, REAR (10x24x14.5) This part replaces 62175-43400.

62175-00B00

2
Out of stock

6

RING, STOPPER This part replaces 62277-14200.

62657-34A01

4
Out of stock

7

DUST SEAL, UPPER

62226-00A00

2
Out of stock

8

COLLAR, UPPER

62684-00A00

2
Out of stock

9

DUST SEAL

62226-43410

2
Out of stock

10

COLLAR

62684-43401

2
Out of stock

11

BOLT, LOWER

09103-10063

1
Out of stock

12

BOLT, UPPER

09103-10064

1
Out of stock

13

NUT This part replaces 08319-31105.

08319-3110A

1
Out of stock

14

NUT This part replaces 08319-31108.

08319-31107

1
Out of stock

15

BRACKET

62361-00A00

1
Out of stock

16

BOLT This part replaces 07110-06305.

07130-0630B

2
Out of stock

17

SPACER

09180-06010

2
Out of stock

18

BOLT This part replaces 07110-06166.

07130-0616B

4
Out of stock
