1986 Suzuki GS1150EF Cushion Lever Diagram

← All diagrams

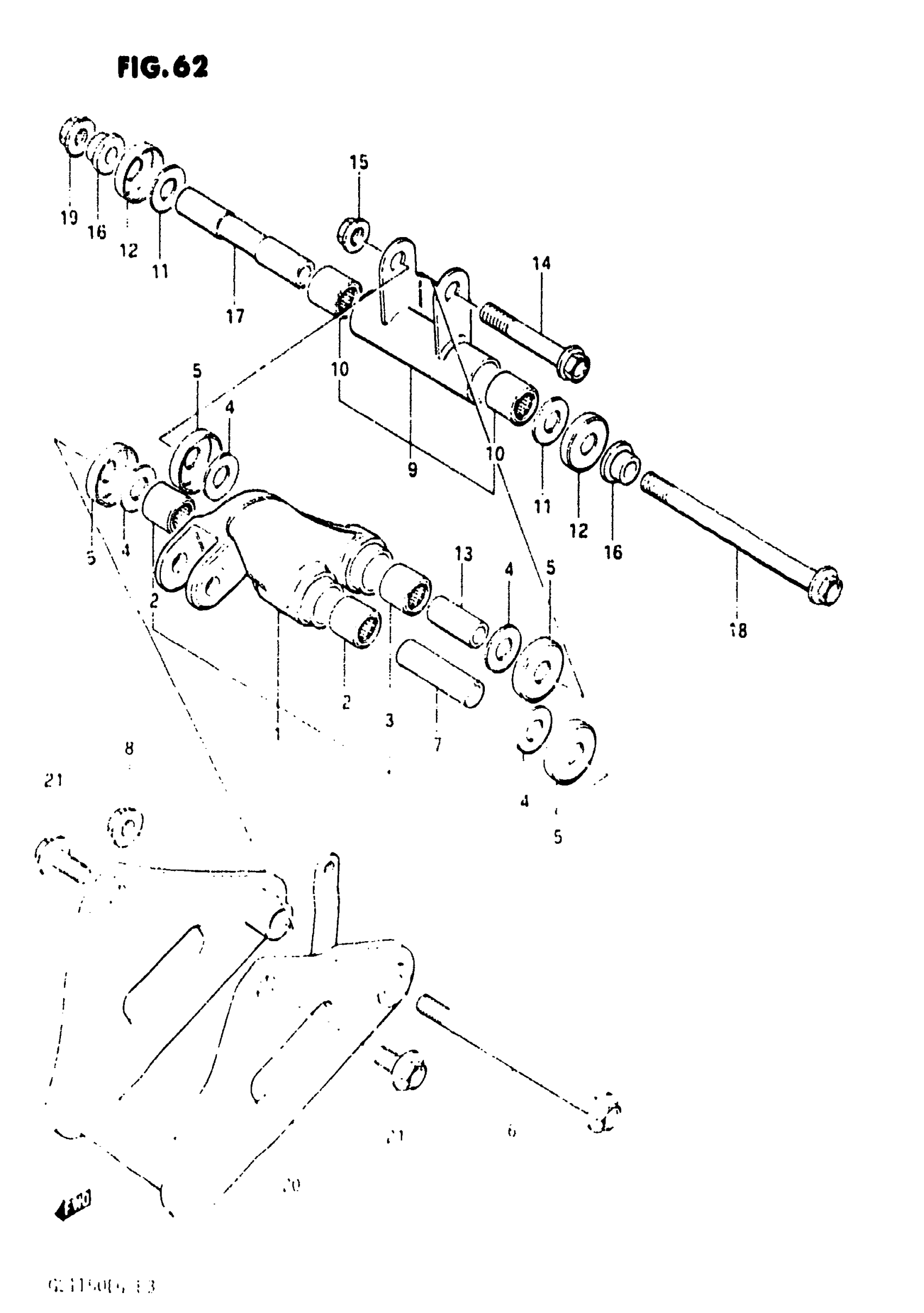

Find the part on the Cushion Lever diagram for your 1986 Suzuki GS1150EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GS1150EF Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, CUSHION | Includes Item(s) 2 - 3

62600-00810

1
Out of stock

2

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

2
Out of stock

3

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

1
Out of stock

4

THRUST WASHER

08211-12281

4
Out of stock

5

COVER This part replaces 61262-41500.

61262-41501

4
Out of stock

6

SHAFT

62657-31301

1
Out of stock

7

SPACER

62623-00A00

1
Out of stock

8

NUT This part replaces 08319-31125.

08319-3112B

1
Out of stock

9

ROD SET, CUSHION | Includes Item(s) 10

62600-00820

1
Out of stock

10

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

2
Out of stock

11

THRUST WASHER

08211-12281

2
Out of stock

12

COVER This part replaces 61262-41500.

61262-41501

2
Out of stock

13

SPACER, UPPER

62646-15500

1
Out of stock

14

BOLT, LOWER This part replaces 62648-15500.

62668-42A02

1
Out of stock

15

NUT This part replaces 08319-31125.

08319-3112B

1
Out of stock

16

SPACER, LOWER

62626-00A00

2
Out of stock

17

SPACER, LOWER

62656-15500

1
Out of stock

18

BOLT

62657-31301

1
Out of stock

19

NUT This part replaces 08319-31125.

08319-3112B

1
Out of stock

20

BRACKET

62410-00A00

1
Out of stock

21

BOLT

62413-00A00

2
Out of stock
